BF5 DH LHNA (BADC) - Honda Outboard Engine, Made in China (SN: BADC-1000001 - BADC-9999999) EXTENSION CASE@GEAR CASE Parts Diagram

Outboard Engine, Made in China

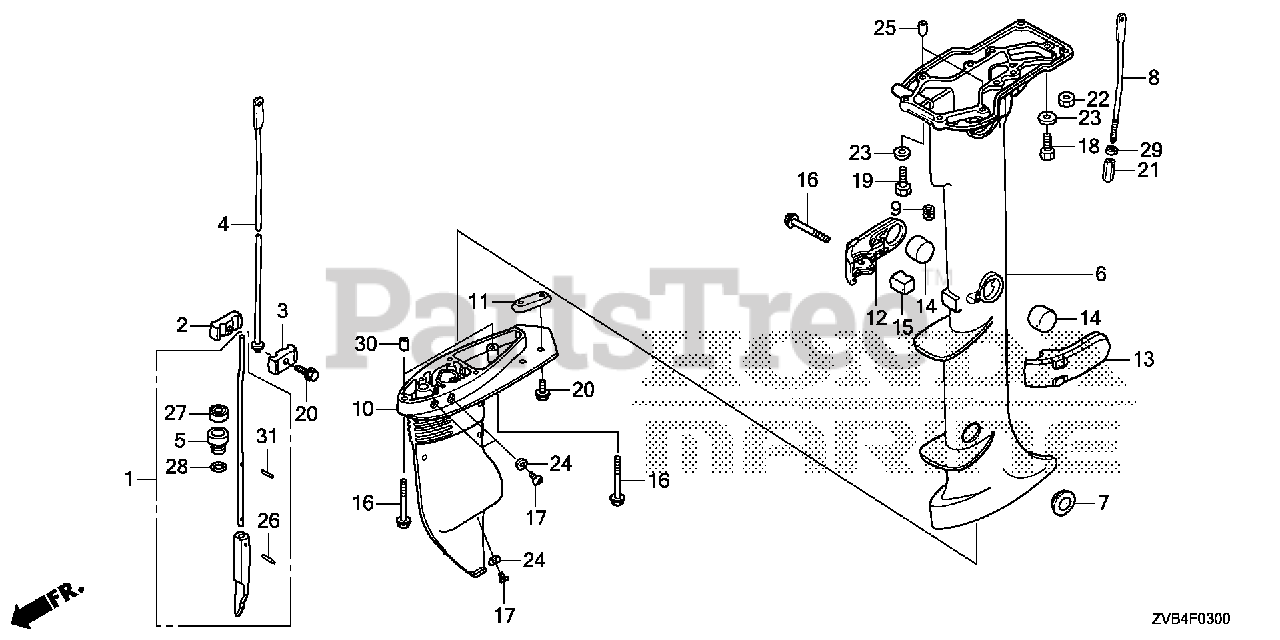

EXTENSION CASE@GEAR CASE Parts Diagram

  • Title

1

Honda 24310-ZVD-000

ROD B, SHIFT

$86.99

$

Usually ships in 3-6 days

0

2

Honda 24312-ZV1-003

JOINT, R. SHIFT ROD

$13.99

$

Usually ships in 3-6 days

0

3

Honda 24313-ZV1-003

JOINT, L. SHIFT ROD

$13.99

$

Usually ships in 3-6 days

0

4

Honda 24320-ZVD-700

ROD A, SHIFT (L)

$32.99

$

Usually ships in 3-6 days

0

5

Honda 24343-ZVD-000

HOLDER, SEAL

$18.99

$

Usually ships in 3-6 days

0

6

Honda 40201-ZVD-700ZA

CASE, EXTENSION *NHB14M* (L) (AQUA MARINE SILVER METALLIC)

$756.99

$

Usually ships in 3-6 days

0

7

Honda 40202-ZVD-000

GROMMET, EXTENSION

$4.49

$

Usually ships in 3-6 days

0

8

Honda 40204-ZVD-000

SHAFT, REVERSE LOCK

$19.99

$

Usually ships in 3-6 days

0

9

Honda 40205-ZVD-000

GROMMET, LOCK SHAFT

$3.99

$

Usually ships in 3-6 days

0

10

Honda 41100-ZV1-C00ZB

CASE, GEAR *NHB14M* (AQUA MARINE SILVER METALLIC)

$379.99

$

Usually ships in 3-6 days

0

11

Honda 41106-ZVA-000

METAL, ANODE

Note: Use from Frame SN 1003609.

$22.99

$

Usually ships in 3-6 days

0

11

Honda 41106-ZV4-650

METAL, ANODE
(Superseded to 41106-ZVA-000)

Note: Use up to Frame SN 1003608.

$22.99

$

Usually ships in 3-6 days

0

12

Honda 50111-ZVD-000ZA

HOUSING, R. MOUNTING (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)

$53.99

$

Usually ships in 3-6 days

0

13

Honda 50121-ZVD-000ZA

HOUSING, L. MOUNTING (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)

$52.99

$

Usually ships in 3-6 days

0

14

Honda 50152-ZVD-000

RUBBER A, MOUNTING (LOWER)

$6.99

$

Usually ships in 3-6 days

0

15

Honda 50155-ZVD-000

RUBBER B, MOUNTING (LOWER)

$5.99

$

Usually ships in 3-6 days

0

16

Honda 90102-ZVD-000

BOLT-WASHER (6X50)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90105-ZVA-000

SEE PART DETAILS - PRI; BOLT, OIL CHECK

$5.99

$

In Stock, only 2 left!

0

18

Honda 90111-881-000

BOLT, HEX. (6X32)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 90114-881-000

BOLT, HEX. (6X40)

$4.99

$

Usually ships in 3-6 days

0

20

Honda 90113-ZVA-000

BOLT, FLANGE (6X16)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90301-ZVD-000

NUT, REVERSE LOCK

$4.99

$

Usually ships in 3-6 days

0

22

Honda 90304-ZV4-000

NUT, HEX. (6MM)

$2.99

$

Usually ships in 3-6 days

0

23

Honda 90506-ZVD-000

WASHER, PLAIN (6MM)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 90507-ZVA-000

WASHER, NYLON (8MM)

$3.99

$

Usually ships in 3-6 days

0

25

Honda 90751-ZVD-000

PIN, DOWEL (8X16)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 91151-VD6-851

ROLLER (2.5X11.8)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 91253-ZW9-003

SEAL, WATER (6MM)

$11.99

$

Usually ships in 3-6 days

0

28

Honda 15142-PH3-003

SEE PART DETAILS - PRI; O-RING (10.8X2.4) (ARAI) (Honda Code 2622355).

$3.99

$

Usually ships in 3-6 days

0

29

Honda 94001-05490-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

31

Honda 94305-25102

PIN, SPRING (2.5X10)

$2.49

$

Usually ships in 3-6 days

0
