BF5 DH LHNA (BADC) - Honda Outboard Engine, Made in China (SN: BADC-1000001 - BADC-9999999) CYLINDER HEAD Parts Diagram

Outboard Engine, Made in China

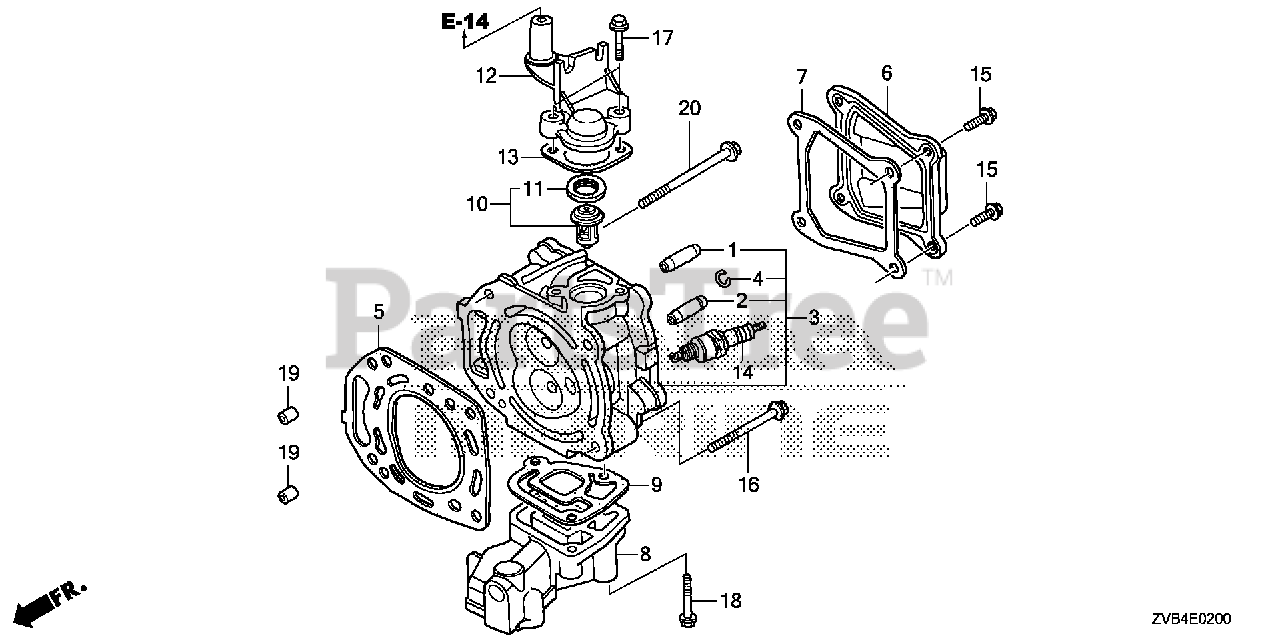

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE) Use from Engine SN 6324986.

$9.99

$

Usually ships in 3-6 days

0

2

Honda 12205-Z1T-305

GUIDE, EX. VALVE (OVER SIZE)
(Superseded to 12205-ZE1-315)

$10.99

$

In Stock, only 2 left!

0

3

Honda 12210-ZVD-000ZA

CYLINDER HEAD *NH8* (DARK GRAY)

$202.99

$

Usually ships in 3-6 days

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE Use from Engine SN 1231803.

$1.99

$

In Stock, Qty 17

0

5

Honda 12251-ZVD-000

GASKET, CYLINDER HEAD

$40.99

$

Usually ships in 3-6 days

0

6

Honda 12311-ZV1-010

SEE PART DETAILS - PRI; COVER, HEAD

$16.99

$

Usually ships in 3-6 days

0

7

Honda 12391-ZVD-000

GASKET, HEAD COVER

$5.49

$

In Stock, only 1 left!

0

8

Honda 18110-ZVD-000ZA

MANIFOLD, EX. *NH8* (DARK GRAY)

$98.99

$

Usually ships in 3-6 days

0

9

Honda 18115-ZVD-000

GASKET, EX. MANIFOLD

$3.99

$

Usually ships in 3-6 days

0

10

Honda 19300-881-761

SEE PART DETAILS - PRI; THERMOSTAT ASSY.

$56.99

$

In Stock, only 1 left!

0

11

Honda 19302-921-003

RUBBER, THERMOSTAT

$10.99

$

In Stock, only 1 left!

0

12

Honda 19310-ZVD-000ZA

COVER, THERMOSTAT *NH8* (DARK GRAY)

$81.99

$

Usually ships in 3-6 days

0

13

Honda 19351-ZVD-000

GASKET, THERMOSTAT COVER

$2.99

$

Usually ships in 3-6 days

0

14

Honda 31916-ZVD-003

SPARK PLUG (BKR6E-E)

$18.99

$

Usually ships in 3-6 days

0

15

Honda 90013-ZVD-000

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90018-ZVD-000

BOLT, FLANGE (8X60)

$3.99

$

Usually ships in 3-6 days

0

17

Honda 90030-ZY3-000

BOLT, FLANGE (6X22)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 90031-ZY3-000

BOLT, FLANGE (6X32)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

20

Honda 95801-08090-09

BOLT, FLANGE (8X90)

$2.99

$

Usually ships in 3-6 days

0
