BF5 AY SA (BADS) - Honda Outboard Engine, Made in Japan (SN: BADS-1500001 - BADS-1599999) STERN BRACKET Parts Diagram

Outboard Engine, Made in Japan

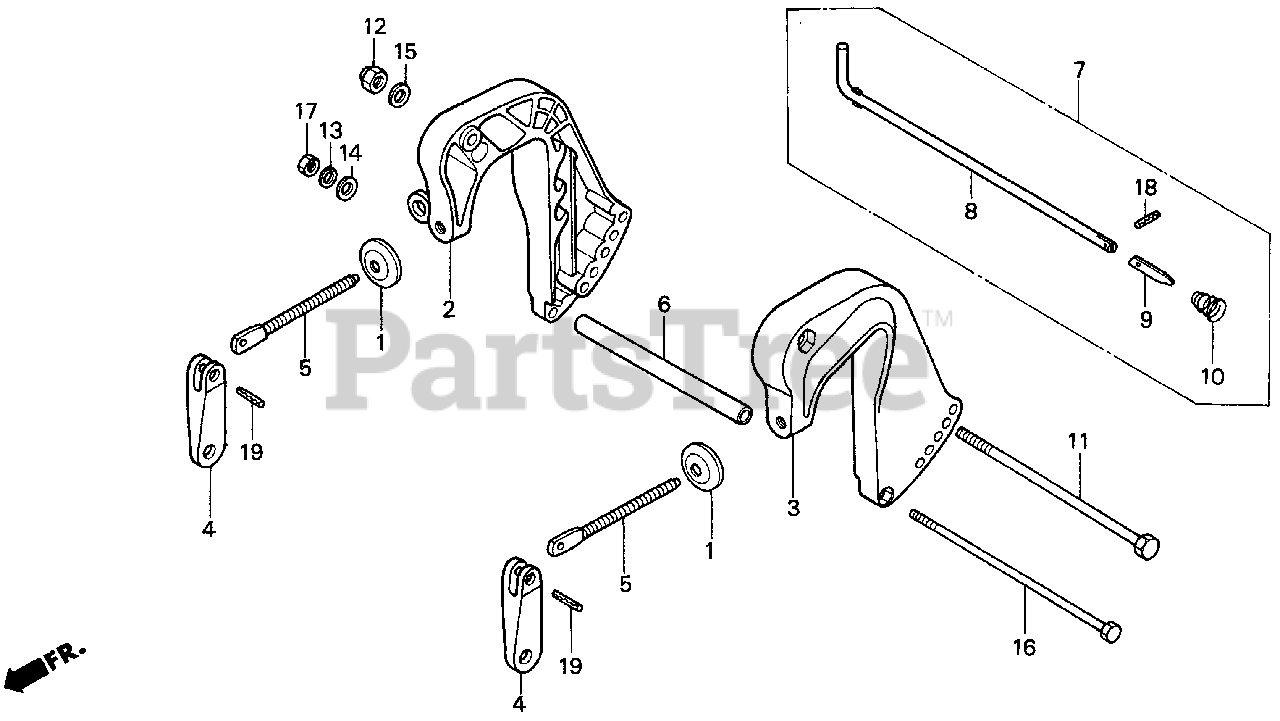

STERN BRACKET Parts Diagram

  • Title

1

Honda 50122-935-010

SEE PART DETAILS - PRI; PLATE, PUSH

$7.99

$

Usually ships in 3-6 days

0

2

Honda 50300-ZV1-841ZB

BRACKET, R. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

3

Honda 50310-ZV1-841ZB

BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

4

Honda 50323-ZV1-300

GRIP, CLAMP
(Superseded to 50323-ZW9-300)

$10.99

$

Usually ships in 3-6 days

0

5

Honda 50325-ZV1-310

SCREW, CLAMP

$

$

Not available

6

Honda 50335-ZV1-000

COLLAR, DISTANCE (6MM)

$9.99

$

Usually ships in 3-6 days

0

7

Honda 50340-ZV1-000

ROD, ADJUSTING
(Superseded to 50340-ZVD-000)

$28.99

$

Usually ships in 3-6 days

0

8

Honda 50341-ZV1-310

ROD, ADJUSTING

$34.99

$

Usually ships in 3-6 days

0

9

Honda 50342-ZV1-310

STOPPER, ROD

$5.99

$

Usually ships in 3-6 days

0

10

Honda 50343-ZV1-300

SPRING, ROD ADJUSTING

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90107-ZV1-000

BOLT, HEX. (8X130)
(Superseded to 90107-ZVD-000)

$12.99

$

Usually ships in 3-6 days

0

12

Honda 90305-ZV4-000

NUT, SELF-LOCK (8MM)

$6.49

$

In Stock, only 1 left!

0

13

Honda 90407-920-000

WASHER, SPRING (6MM)

$1.99

$

In Stock, only 2 left!

0

14

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

15

Honda 90514-921-000

WASHER (8MM)

$1.49

$

In Stock, Qty 9

0

16

Honda 92101-06140-4J

BOLT, HEX. (6X140)

$7.99

$

Usually ships in 3-6 days

0

17

Honda 94001-06490

SEE PART DETAILS - SUP; NUT, HEX. (6MM)

$

$

Currently unavailable

17

Honda 94001-06490-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$2.99

$

In Stock, only 1 left!

0

18

Honda 94305-20063

PIN, SPRING (2X6)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 94305-40203

PIN, SPRING (4X22)

$2.49

$

In Stock, Qty 5

0
