BF5 AK3 SA (BADS) - Honda Outboard Engine, Made in Japan (SN: BADS-2500001 - BADS-9999999) HANDLEBAR Parts Diagram

Outboard Engine, Made in Japan

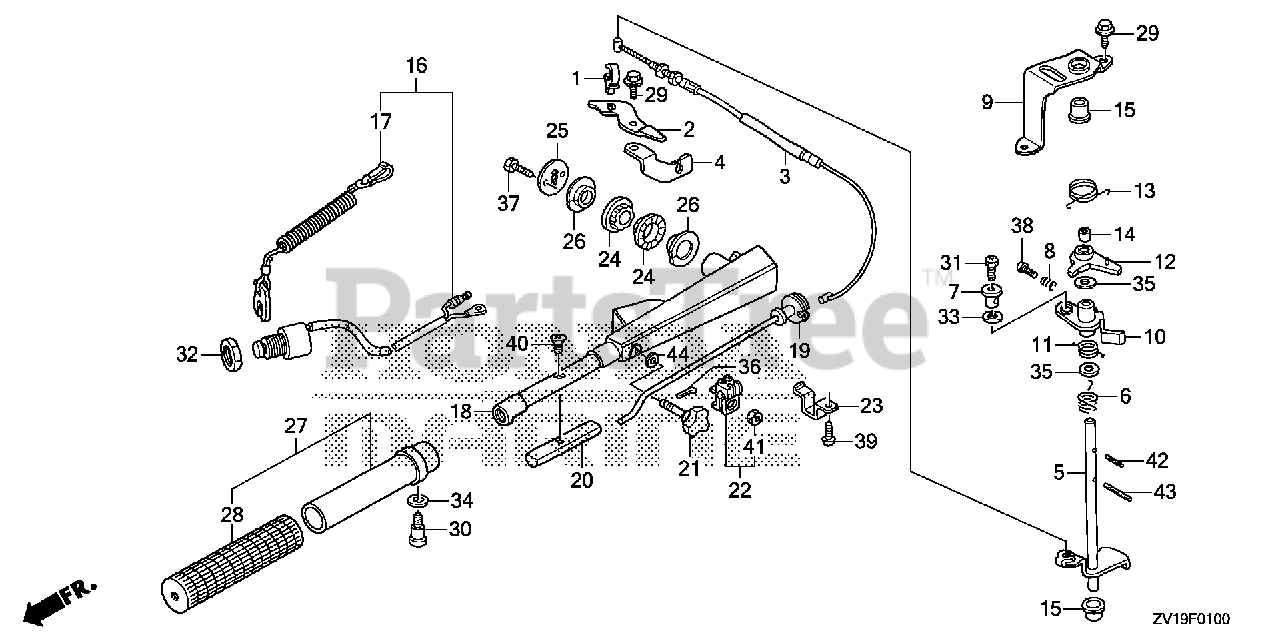

HANDLEBAR Parts Diagram

  • Title

1

Honda 16233-PD2-003

CLAMP, CARBURETOR SOLENOID WIRE HARNESS

$9.49

$

Usually ships in 3-6 days

0

2

Honda 16818-ZV1-010

STAY, FUEL TUBE

$5.99

$

Usually ships in 3-6 days

0

3

Honda 17910-ZV1-000

SEE PART DETAILS - SUP; CABLE, THROTTLE
(Superseded to 17910-ZV1-003)

Note: Use up to Frame SN 2500169.

$15.99

$

Usually ships in 3-6 days

0

3

Honda 17910-ZV1-003

SEE PART DETAILS - PRI; CABLE, THROTTLE

$15.99

$

Usually ships in 3-6 days

0

4

Honda 17921-ZV1-020

SEE PART DETAILS - PRI; HOLDER, CABLE
(Superseded to 17921-ZVA-000)

$6.99

$

Usually ships in 3-6 days

0

5

Honda 17930-ZV1-020

SEE PART DETAILS - PRI; SHAFT, THROTTLE

$20.99

$

Usually ships in 3-6 days

0

6

Honda 17932-ZV1-000

SPRING, THROTTLE ARM

$4.99

$

Usually ships in 3-6 days

0

7

Honda 17933-ZV1-000

HOLDER, THROTTLE ROD

$9.99

$

Usually ships in 3-6 days

0

8

Honda 17934-ZV1-000

SPRING, THROTTLE ADJUSTING

$2.49

$

Usually ships in 3-6 days

0

9

Honda 17935-ZV1-010

STAY, THROTTLE SHAFT

$12.99

$

Usually ships in 3-6 days

0

10

Honda 17936-ZV1-000

LINK, THROTTLE

$14.99

$

Usually ships in 3-6 days

0

11

Honda 17937-ZV1-000

SPRING, RETURN

$4.49

$

Usually ships in 3-6 days

0

12

Honda 17941-ZV1-000

POWL, NEUTRAL START

$14.99

$

Usually ships in 3-6 days

0

13

Honda 17942-ZV1-000

SPRING, POWL

$4.99

$

Usually ships in 3-6 days

0

14

Honda 17943-ZV1-000

COLLAR, POWL

$4.99

$

Usually ships in 3-6 days

0

15

Honda 24621-921-010

BUSH, SHAFT

$6.49

$

In Stock, only 1 left!

0

16

Honda 36180-ZV1-A05

SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP

$83.99

$

Usually ships in 3-6 days

0

17

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY (SINGLE) (DUAL)

$24.99

$

Usually ships in 3-6 days

0

18

Honda 53101-ZV1-A00ZC

HANDLEBAR *NHB14M* (AQUA MARINE SILVER METALLIC)

Note: Use up to Frame SN 2502291.

$130.99

$

Usually ships in 3-6 days

0

18

Honda 53101-ZV1-C00ZB

HANDLEBAR *NHB14M* (AQUA MARINE SILVER METALLIC)

Note: Use from Frame SN 2502292.

$112.99

$

Usually ships in 3-6 days

0

19

Honda 53102-ZV1-000

REEL, THROTTLE

$43.99

$

In Stock, only 1 left!

0

20

Honda 53103-ZV1-000

WEIGHT, HANDLEBAR

$13.99

$

Usually ships in 3-6 days

0

21

Honda 53104-ZV1-000

BOLT, FRICTION

$11.99

$

Usually ships in 3-6 days

0

22

Honda 53106-ZV1-000

BLOCK, THROTTLE FRICTION

$5.99

$

Usually ships in 3-6 days

0

23

Honda 53108-ZV1-000

STAY A, THROTTLE REEL

$5.99

$

Usually ships in 3-6 days

0

24

Honda 53109-ZV1-000

RUBBER, HANDLE MOUNTING
(Superseded to 53109-ZVD-000)

$5.99

$

Usually ships in 3-6 days

0

25

Honda 53111-ZV1-010

PLATE, HANDLEBAR

$6.99

$

Usually ships in 3-6 days

0

26

Honda 53112-ZV1-000

COLLAR, HANDLEBAR
(Superseded to 53112-ZVD-000)

$4.49

$

Usually ships in 3-6 days

0

27

Honda 53140-ZV1-A00

PIPE, GRIP

$35.99

$

Usually ships in 3-6 days

0

28

Honda 53165-ZV1-A00

RUBBER, GRIP

$15.99

$

Usually ships in 3-6 days

0

29

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

30

Honda 90106-ZV1-000

BOLT, PIPE GRIP

$6.99

$

Usually ships in 3-6 days

0

31

Honda 90116-ZV1-000

BOLT, RECESSED (5X8)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 90302-921-000

NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE)

$5.99

$

In Stock, only 1 left!

0

33

Honda 90507-ZV1-000

WASHER, NYLON (9MM)

$2.49

$

Usually ships in 3-6 days

0

34

Honda 90508-ZV1-000

WASHER (7.5MM)

$4.99

$

Usually ships in 3-6 days

0

35

Honda 90511-921-000

WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

36

Honda 90759-ZV1-000

SEE PART DETAILS - PRI; PIN, SPLIT (2.0)

$1.99

$

Usually ships in 3-6 days

0

37

Honda 92101-06016-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

Usually ships in 3-6 days

0

38

Honda 93500-04020-4J

SCREW, PAN (4X20) (NOT AVAILABLE)

$

$

Currently unavailable

39

Honda 93500-05012-4J

SCREW, PAN (5X12)

$1.99

$

Usually ships in 3-6 days

0

40

Honda 93700-06012-4J

SCREW, OVAL (6X12)

$2.49

$

Usually ships in 3-6 days

0

41

Honda 94002-06490-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$3.49

$

Usually ships in 3-6 days

0

42

Honda 94305-30183

PIN, SPRING (3X18)

$2.49

$

In Stock, only 1 left!

0

43

Honda 94305-30323

PIN, SPRING (3X32)

$2.49

$

Usually ships in 3-6 days

0

44

Honda 90504-921-010

WASHER, PLAIN (6MM) Use from Frame SN 4800713.

$1.99

$

In Stock, only 1 left!

0
