BF5 AK3 SA (BADS) - Honda Outboard Engine, Made in Japan (SN: BADS-2500001 - BADS-9999999) EXTENSION CASE@GEAR CASE Parts Diagram

Outboard Engine, Made in Japan

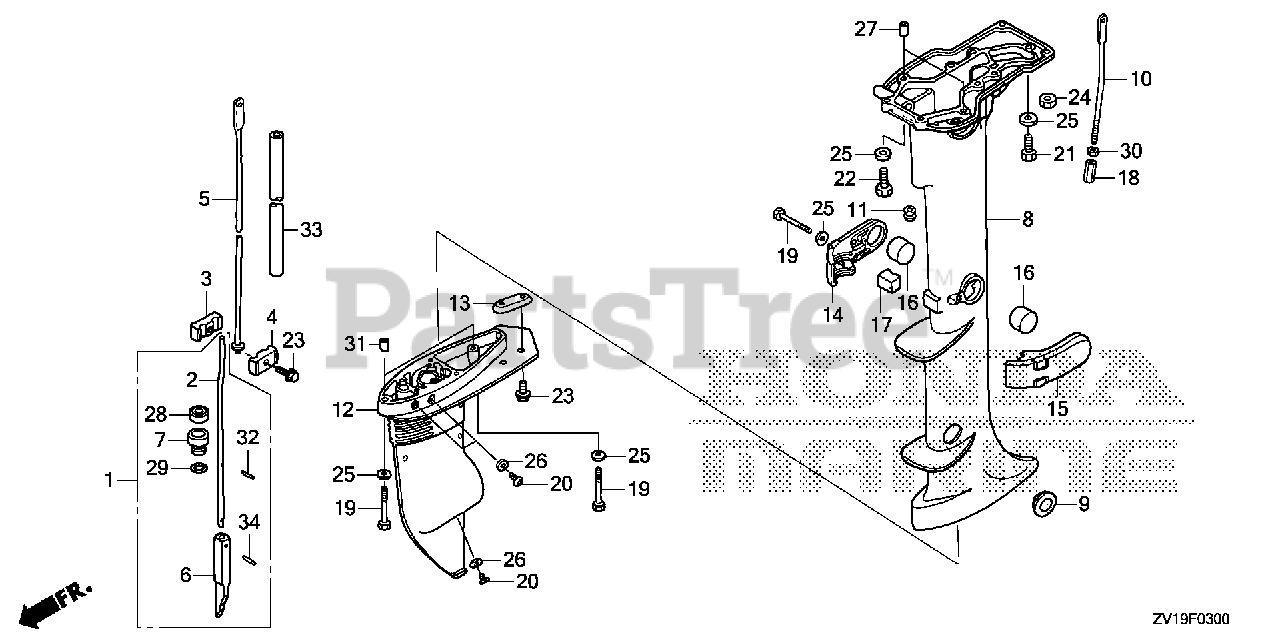

EXTENSION CASE@GEAR CASE Parts Diagram

  • Title

1

Honda 24310-ZV1-000

ROD B, SHIFT

$91.99

$

Usually ships in 3-6 days

0

2

Honda 24311-ZV1-C00

SEE PART DETAILS - PRI; ROD B, SHIFT

$24.99

$

Usually ships in 3-6 days

0

3

Honda 24312-ZV1-003

JOINT, R. SHIFT ROD

$12.99

$

Usually ships in 3-6 days

0

4

Honda 24313-ZV1-003

JOINT, L. SHIFT ROD

$12.99

$

Usually ships in 3-6 days

0

5

Honda 24320-ZV1-000

ROD A, SHIFT (S)

$42.99

$

Usually ships in 3-6 days

0

6

Honda 24341-ZV1-300

ROD, PUSH

$30.99

$

Usually ships in 3-6 days

0

7

Honda 24343-ZV1-000

HOLDER, SEAL

$29.99

$

Usually ships in 3-6 days

0

8

Honda 40201-ZV1-C00ZB

CASE, EXTENSION *NHB14M* (S) (AQUA MARINE SILVER METALLIC)

Note: Use from Frame SN 2502292.

$

$

Not available

8

Honda 40201-ZV1-843ZC

CASE, EXTENSION *NHB14M* (S) (AQUA MARINE SILVER METALLIC)

Note: Use up to Frame SN 2502291.

$447.99

$

Usually ships in 3-6 days

0

9

Honda 40202-ZV1-000

GROMMET, EXTENSION
(Superseded to 40202-ZVD-000)

$4.49

$

Usually ships in 3-6 days

0

10

Honda 40204-ZV1-000

SHAFT, REVERSE LOCK

$28.99

$

Usually ships in 3-6 days

0

11

Honda 40205-ZV1-000

GROMMET, LOCK SHAFT

$4.99

$

Usually ships in 3-6 days

0

12

Honda 41100-ZV1-C00ZB

CASE, GEAR *NHB14M* (AQUA MARINE SILVER METALLIC)

$354.99

$

Usually ships in 3-6 days

0

13

Honda 41106-ZV4-650

METAL, ANODE
(Superseded to 41106-ZVA-000)

$20.99

$

Usually ships in 3-6 days

0

14

Honda 50111-ZV1-842ZC

HOUSING, R. MOUNTING (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)

$37.99

$

Usually ships in 3-6 days

0

15

Honda 50121-ZV1-842ZC

HOUSING, L. MOUNTING (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)

$37.99

$

Usually ships in 3-6 days

0

16

Honda 50152-ZV1-000

RUBBER A, MOUNTING (LOWER)

$10.99

$

Usually ships in 3-6 days

0

17

Honda 50155-ZV1-000

RUBBER B, MOUNTING (LOWER)

$7.49

$

Usually ships in 3-6 days

0

18

Honda 90005-ZV1-000

NUT, REVERSE LOCK

$6.99

$

Usually ships in 3-6 days

0

19

Honda 90102-ZV1-000

BOLT, HEX. (6X50)

$5.49

$

Usually ships in 3-6 days

0

20

Honda 90105-ZV4-650

SEE PART DETAILS - SUP; BOLT, OIL CHECK (8X8)
(Superseded to 90105-ZVA-000)

$5.99

$

In Stock, only 2 left!

0

21

Honda 90111-881-000

BOLT, HEX. (6X32)

$3.99

$

Usually ships in 3-6 days

0

22

Honda 90114-881-000

BOLT, HEX. (6X40)

$4.49

$

Usually ships in 3-6 days

0

23

Honda 90215-HW1-671

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (SUS)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 90304-ZV4-000

NUT, HEX. (6MM)

$2.99

$

Usually ships in 3-6 days

0

25

Honda 90506-ZV4-000

WASHER, PLAIN (6MM) Use up to Frame SN 4800342.

$3.49

$

Usually ships in 3-6 days

0

26

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

In Stock, Qty 6

0

27

Honda 94301-08160

PIN, DOWEL (8X16)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 91253-921-003

SEAL, WATER (6MM)

$15.99

$

In Stock, only 1 left!

0

29

Honda 15142-PH3-003

SEE PART DETAILS - PRI; O-RING (10.8X2.4) (ARAI) (Honda Code 2622355).

$3.99

$

In Stock, only 1 left!

0

30

Honda 94001-05490-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

32

Honda 94305-25102

PIN, SPRING (2.5X10)

$2.49

$

Usually ships in 3-6 days

0

34

Honda 91151-VD6-851

ROLLER (2.5X11.8)

$1.99

$

Usually ships in 3-6 days

0

34

Honda 96220-25118

ROLLER (2.5X11.8)

$0.99

$

Usually ships in 3-6 days

0
