BF5 AK3 SA (BADS) - Honda Outboard Engine, Made in Japan (SN: BADS-2500001 - BADS-9999999) CYLINDER Parts Diagram

Outboard Engine, Made in Japan

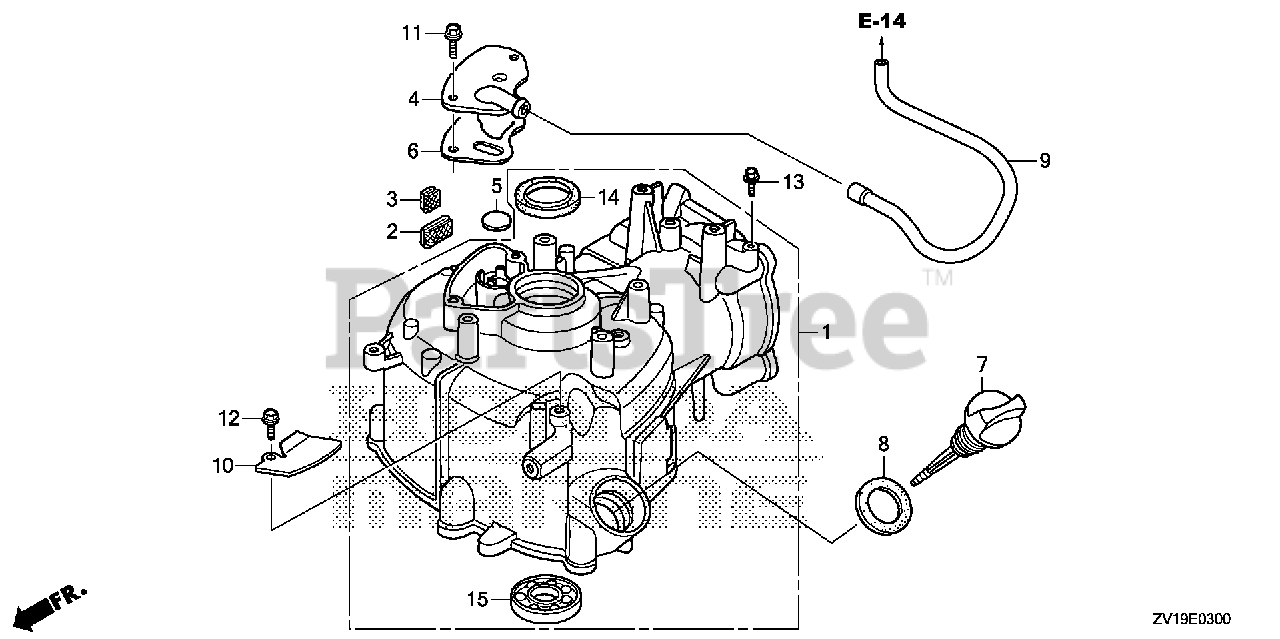

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZV1-415ZA

CYLINDER ASSY. *NH8* (DARK GRAY)

$512.99

$

Usually ships in 3-6 days

0

2

Honda 12367-ZV1-F00

FILTER A, BREATHER

$3.49

$

Usually ships in 3-6 days

0

3

Honda 12368-ZV1-F00

FILTER B, BREATHER

$3.99

$

Usually ships in 3-6 days

0

4

Honda 12371-ZV1-010

SEE PART DETAILS - PRI; CAP, BREATHER CHAMBER

$7.49

$

Usually ships in 3-6 days

0

5

Honda 12372-879-000

VALVE, BREATHER (Honda Code 0452151).

$2.49

$

In Stock, only 2 left!

0

6

Honda 12373-ZV1-000

GASKET, BREATHER CAP

$3.49

$

Usually ships in 3-6 days

0

7

Honda 15620-ZV1-003

SEE PART DETAILS - PRI; CAP, OIL FILLER

$9.49

$

Usually ships in 3-6 days

0

8

Honda 15625-ZE6-000

GASKET, OIL FILLER CAP Use up to Engine SN 1257294.

$4.49

$

Usually ships in 3-6 days

0

9

Honda 15721-ZV1-C51

TUBE, BREATHER

$22.99

$

Usually ships in 3-6 days

0

10

Honda 15725-ZV1-020

CLAMP, BREATHER TUBE

$3.99

$

Usually ships in 3-6 days

0

11

Honda 90013-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, only 3 left!

0

12

Honda 90019-ZV1-010

SEE PART DETAILS - PRI; BOLT, FLANGE (5X10)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90019-ZW4-000

BOLT, FLANGE (5X10) (CT200)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 91201-ZG9-U71

SEE PART DETAILS - PRI; OIL SEAL (25X38X7) (Honda Code 5230073).

$4.99

$

In Stock, Qty 7

0

14

Honda 91252-888-003

SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI) (Honda Code 0671628).
(Superseded to 91201-ZG9-U71)

$4.99

$

In Stock, Qty 7

0

15

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).

$24.99

$

In Stock, only 3 left!

0
