BF5 AK3 LA (BADS) - Honda Outboard Engine, Made in Japan (SN: BADS-2500001 - BADS-9999999) CAMSHAFT Parts Diagram

Outboard Engine, Made in Japan

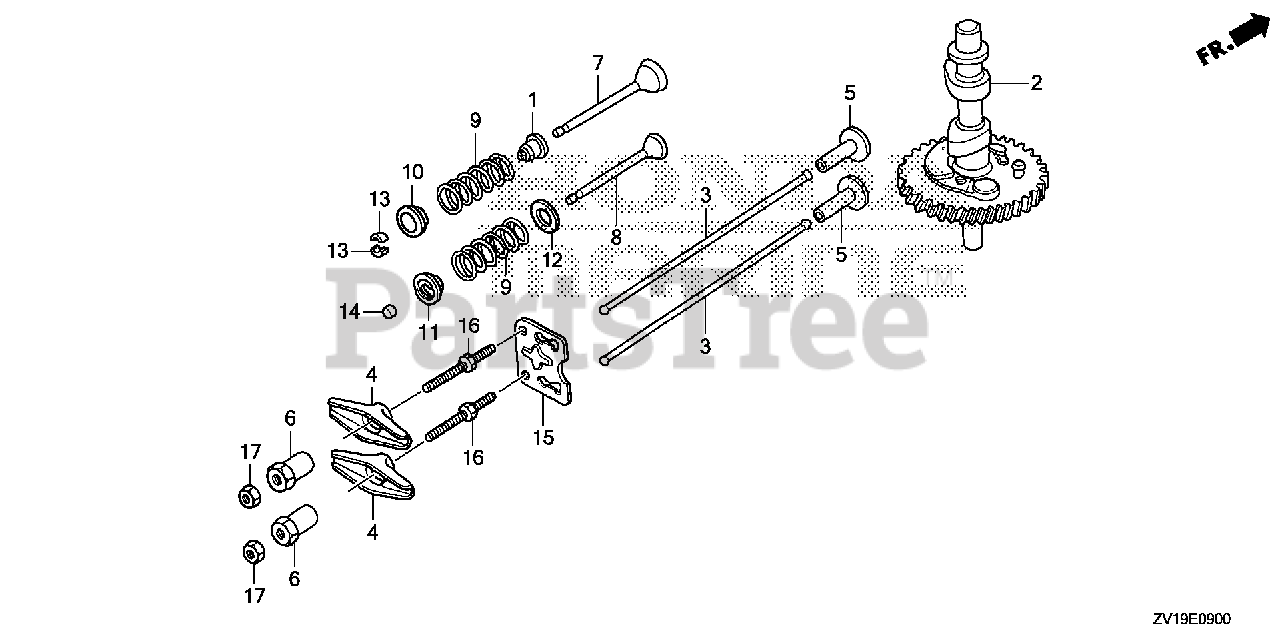

CAMSHAFT Parts Diagram

  • Title
1

Honda 12209-ZE6-G02

SEAL, VALVE STEM

$4.49

$

Usually ships in 3-6 days

0

2

$122.99

$

Usually ships in 3-6 days

0

3

Honda 14410-ZE1-010

SEE PART DETAILS - PRI; ROD, PUSH (Honda Code 3352655).

$8.49

$

In Stock, only 2 left!

0

4

Honda 14431-ZE1-000

ARM, VALVE ROCKER (Honda Code 1426824).

$7.99

$

In Stock, only 2 left!

0

5

Honda 14441-ZE1-010

SEE PART DETAILS - PRI; LIFTER, VALVE (Honda Code 5181383).

$14.99

$

Usually ships in 3-6 days

0

6

Honda 14451-ZE1-013

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM (Honda Code 4300901).
(Superseded to 14451-Z4M-000)

Note: Use up to Engine SN 2076753.

$5.99

$

In Stock, Qty 5

0

6

Honda 14451-Z4M-000

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM

Note: Use up to Engine SN 2076753.

$5.99

$

In Stock, Qty 5

0

6

Honda 14451-Z7E-000

PIVOT, ROCKER ARM

Note: Use from Engine SN 2076754.

$4.99

$

Usually ships in 3-6 days

0

7

Honda 14711-ZV1-000

VALVE, IN.
(Superseded to 14711-ZVD-000)

$21.99

$

Usually ships in 3-6 days

0

8

Honda 14721-ZV1-000

VALVE, EX.

$37.99

$

Usually ships in 3-6 days

0

9

Honda 14751-ZV1-000

SPRING, VALVE

$3.49

$

Usually ships in 3-6 days

0

10

Honda 14771-ZV1-000

RETAINER, VALVE SPRING

$8.49

$

Usually ships in 3-6 days

0

11

Honda 14773-ZE1-000

SEE PART DETAILS - PRI; RETAINER, EX. VALVE SPRING

$10.99

$

In Stock, only 1 left!

0

12

Honda 14775-028-010

SEAT, VALVE SPRING

$5.49

$

Usually ships in 3-6 days

0

13

Honda 14781-107-003

COTTER, VALVE (SANKO)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 14781-ZE1-000

ROTATOR, VALVE (Honda Code 1427004).

$5.99

$

In Stock, Qty 11

0

15

Honda 14791-ZE1-010

PLATE, PUSH ROD GUIDE (Honda Code 1899947).

$4.49

$

Usually ships in 3-6 days

0

16

Honda 90012-ZE0-010

BOLT, PIVOT (8MM) (Honda Code 1756964).

$8.49

$

In Stock, only 2 left!

0

17

Honda 90206-ZE1-000

NUT, PIVOT ADJ. (Honda Code 1431287).

$4.49

$

In Stock, Qty 6

0
