BF5 AK0 SA (BADS) - Honda Outboard Engine, Made in Japan (SN: BADS-2300001 - BADS-9999999) RECOIL STARTER Parts Diagram

Outboard Engine, Made in Japan

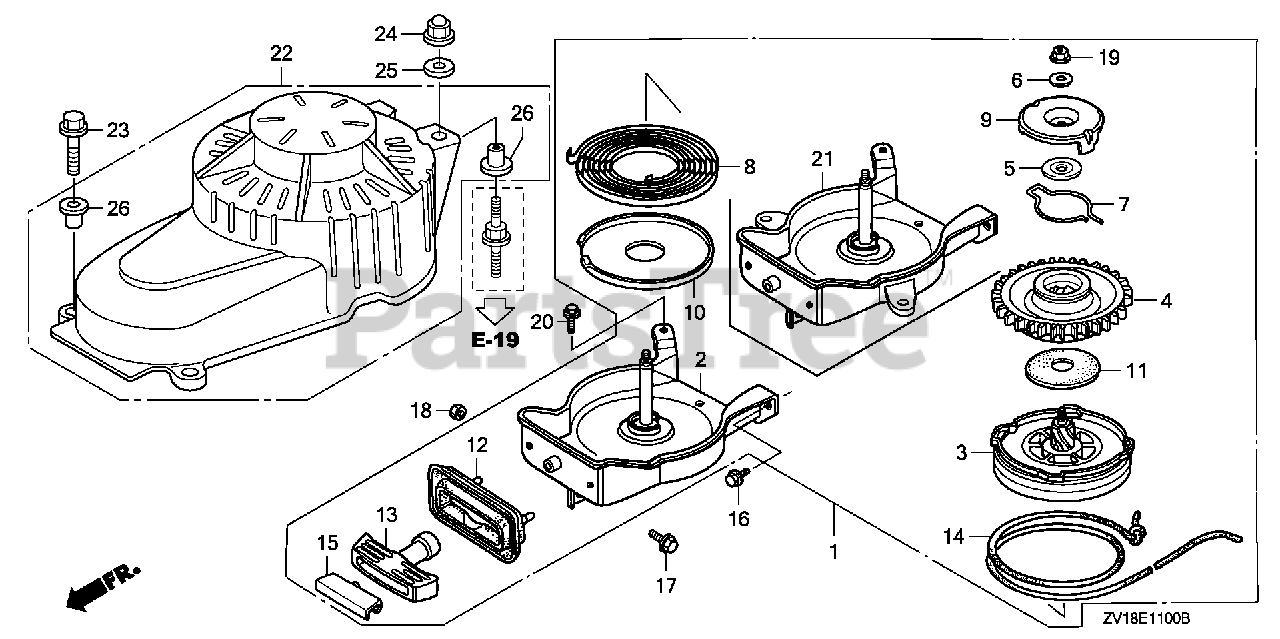

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZV1-083ZB

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *TBLACK* (BLACK)

$86.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZV1-033ZB

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *TBLACK* (BLACK)

$109.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZV1-003

PULLEY, RECOIL STARTER

$37.99

$

Usually ships in 3-6 days

0

4

Honda 28426-ZV1-033

SEE PART DETAILS - PRI; GEAR, STARTER

$34.99

$

Usually ships in 3-6 days

0

5

Honda 28431-ZV1-013

SEE PART DETAILS - PRI; WASHER, THRUST

$4.99

$

Usually ships in 3-6 days

0

6

Honda 28432-ZV1-013

SEE PART DETAILS - PRI; WASHER

$6.49

$

Usually ships in 3-6 days

0

7

Honda 28441-ZV1-013

SEE PART DETAILS - PRI; SPRING, FRICTION

$6.99

$

Usually ships in 3-6 days

0

8

Honda 28442-ZV1-003

SPRING, STARTER RETURN

$35.99

$

Usually ships in 3-6 days

0

9

Honda 28443-ZV1-033

SEE PART DETAILS - PRI; RETAINER, SPRING

$10.99

$

Usually ships in 3-6 days

0

10

Honda 28445-ZV1-003

HOLDER, SPRING

$24.99

$

Usually ships in 3-6 days

0

11

Honda 28454-ZV1-003

RUBBER, CUSHION

$7.49

$

Usually ships in 3-6 days

0

12

Honda 28455-ZV1-000

RUBBER, ENGINE COVER SEAL

$17.99

$

Usually ships in 3-6 days

0

13

Honda 28461-ZV1-013

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZV1-023)

Note: Use up to Engine SN 2050426.

$8.49

$

Usually ships in 3-6 days

0

13

Honda 28461-ZV1-023

GRIP, STARTER

$8.49

$

Usually ships in 3-6 days

0

14

Honda 28462-ZV1-003

ROPE, RECOIL STARTER (#5.5X79") (N/A: USE P/N 08555-ZG921-11)

$

$

Currently unavailable

15

Honda 28463-ZV1-003

CAP, GRIP

$7.49

$

Usually ships in 3-6 days

0

16

Honda 90013-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, only 3 left!

0

17

Honda 90128-ZV1-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90302-ZW4-000

NUT, HEX. (6MM)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 90201-ZV1-003

NUT, FLANGE (6MM)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90017-ZY3-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)
(Superseded to 90017-ZZ5-M01)

$1.99

$

In Stock, Qty 5

0

21

Honda 28410-ZV1-033ZB

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *TBLACK* (BLACK)

Note: Use from Engine SN 2025034.

$109.99

$

Usually ships in 3-6 days

0

22

Honda 31145-ZV1-000

COVER, FLYWHEEL

Note: Use from Engine SN 2025034.

$54.99

$

Usually ships in 3-6 days

0

23

Honda 90028-ZY3-000

BOLT, FLANGE (6X18)

Note: Use from Engine SN 2025034.

$1.49

$

Usually ships in 3-6 days

0

24

Honda 90201-ZY6-000

NUT, FLANGE CAP (6MM)
(Superseded to 90201-ZY6-030)

Note: Use from Engine SN 2025034.

$3.99

$

Usually ships in 3-6 days

0

25

Honda 90403-ZW6-000

WASHER (6.5X18)

Note: Use from Engine SN 2025034.

$3.49

$

Usually ships in 3-6 days

0

26

Honda 90504-ZS9-000

COLLAR, RECOIL STARTER

Note: Use from Engine SN 2025034.

$2.99

$

In Stock, only 2 left!

0
