BF5 AK0 SA (BADS) - Honda Outboard Engine, Made in Japan (SN: BADS-2300001 - BADS-9999999) CYLINDER HEAD Parts Diagram

Outboard Engine, Made in Japan

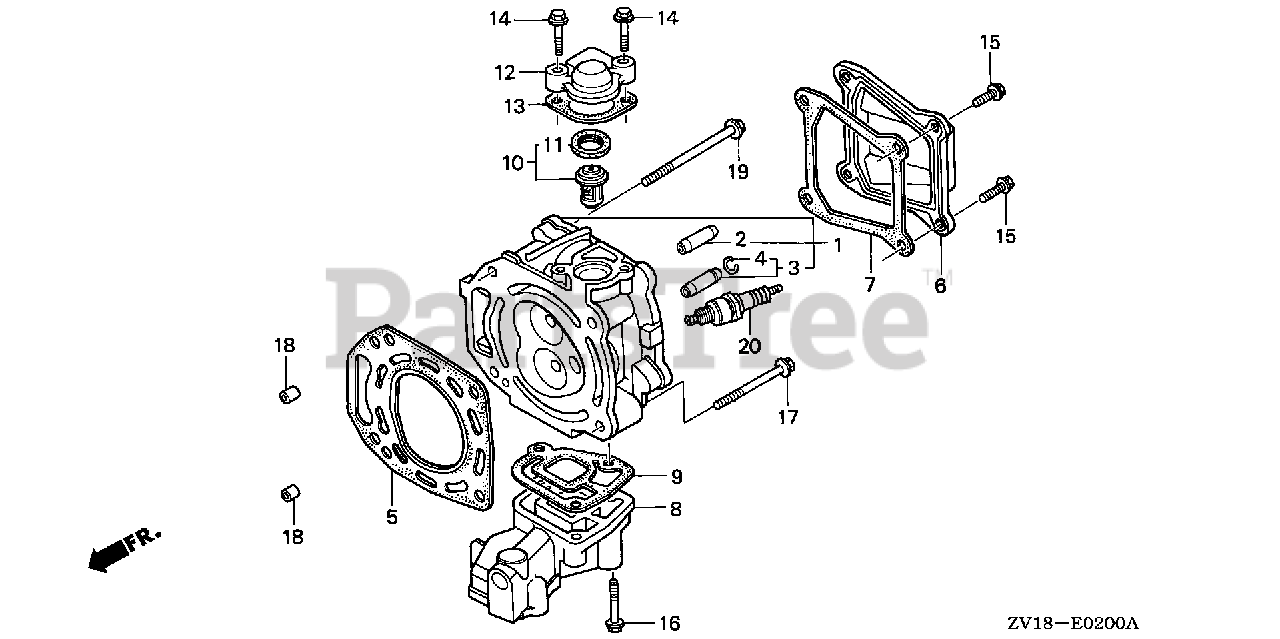

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12210-ZV1-405ZA

CYLINDER HEAD *NH8* (DARK GRAY)

$223.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE) Use from Engine SN 6324986.

$9.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE1-315

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS) (Honda Code 1899848).

$10.99

$

In Stock, only 2 left!

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE Use from Engine SN 1231803.

$1.99

$

In Stock, Qty 17

0

5

Honda 12251-ZV1-851

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$22.99

$

In Stock, only 1 left!

0

6

Honda 12311-ZV1-010

SEE PART DETAILS - PRI; COVER, HEAD

$16.99

$

Usually ships in 3-6 days

0

7

Honda 12391-ZV1-850

GASKET, CYLINDER HEAD COVER
(Superseded to 12391-ZVD-000)

$5.49

$

In Stock, only 1 left!

0

8

Honda 18110-ZV1-000ZA

MANIFOLD, EX. *NH8* (DARK GRAY)

$87.99

$

Usually ships in 3-6 days

0

9

Honda 18115-ZV1-850

SEE PART DETAILS - SUP; GASKET, EX. MANIFOLD
(Superseded to 18115-ZV1-851)

Note: Use up to Engine SN 2053373.

$4.99

$

Usually ships in 3-6 days

0

9

Honda 18115-ZV1-851

SEE PART DETAILS - PRI; GASKET, EX. MANIFOLD

$4.99

$

Usually ships in 3-6 days

0

10

Honda 19300-881-761

SEE PART DETAILS - PRI; THERMOSTAT ASSY.

$56.99

$

In Stock, only 1 left!

0

11

Honda 19302-921-003

RUBBER, THERMOSTAT

$10.99

$

In Stock, only 1 left!

0

12

Honda 19310-ZV1-000ZA

COVER, THERMOSTAT *NH8* (DARK GRAY)

$23.99

$

Usually ships in 3-6 days

0

13

Honda 19351-ZV1-850

GASKET, THERMOSTAT COVER

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90018-ZV1-010

BOLT, FLANGE (6X23)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90122-ZV1-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90123-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (CT200)
(Superseded to 90023-ZY9-M01)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90127-ZV1-010

SEE PART DETAILS - PRI; BOLT, FLANGE (8X60)
(Superseded to 90027-ZY9-M01)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

19

Honda 95923-08090-09

BOLT, FLANGE (8X90)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 98079-55827

SEE PART DETAILS - SUP; SPARK PLUG (W16EPR-U)

$

$

Not available

20

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.99

$

In Stock, Qty 20+

0
