BF5 AK0 SA (BADS) - Honda Outboard Engine, Made in Japan (SN: BADS-2300001 - BADS-9999999) CHARGE RECEPTACLE KIT Parts Diagram

Outboard Engine, Made in Japan

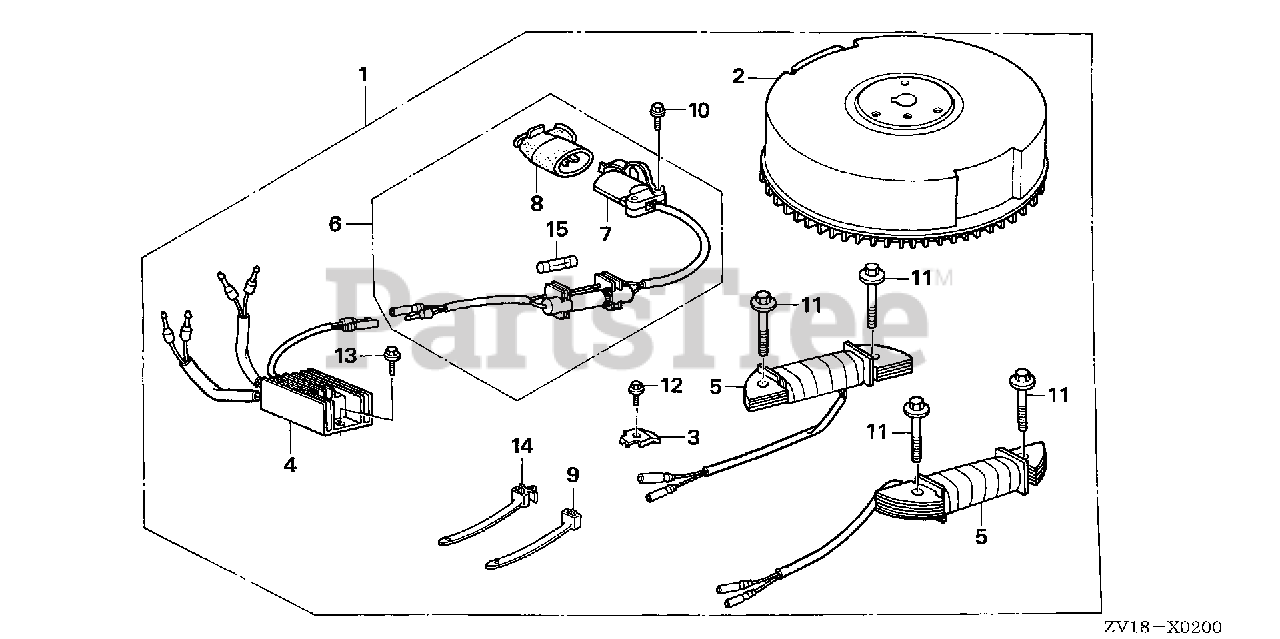

CHARGE RECEPTACLE KIT Parts Diagram

  • Title

1

Honda 06310-ZV1-F01ZA

RECEPTACLE KIT, CHARGE *TBLACK* (BLACK)

Note: (Optional).

$440.99

$

Usually ships in 3-6 days

0

2

Honda 31100-ZV1-F40ZA

FLYWHEEL *TBLACK* (CHARGE) (BLACK)

Note: (Optional).

$201.99

$

Usually ships in 3-6 days

0

3

Honda 31511-ZV1-811

CLAMP, WIRE

Note: (Optional).Use up to Engine SN 2025033.

$4.99

$

Usually ships in 3-6 days

0

3

Honda 31511-ZV1-812

CLAMP, WIRE

Note: Use from Engine SN 2025034.

$4.49

$

Usually ships in 3-6 days

0

4

Honda 31620-ZV1-A01

RECTIFIER ASSY., REGULATOR

Note: (Optional).

$183.99

$

Usually ships in 3-6 days

0

5

Honda 31630-ZV1-A01

COIL ASSY., CHARGE (12V-1.5A)

Note: (Optional).

$84.99

$

Usually ships in 3-6 days

0

6

Honda 31650-ZV1-A02

RECEPTACLE ASSY., CHARGE Use from Engine SN 1308875.

Note: (Optional).

$52.99

$

Usually ships in 3-6 days

0

7

Honda 31651-ZV1-A01

RECEPTACLE

Note: (Optional).

$33.99

$

Usually ships in 3-6 days

0

8

Honda 31652-881-024

SEE PART DETAILS - PRI; PLUG, RECEPTACLE

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

9

Honda 32901-952-770

TIE, CABLE (NATURAL 2.4X92) Use up to Frame SN 1300359.

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90014-ZV1-010

SEE PART DETAILS - PRI; BOLT, FLANGE (5X22)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

11

Honda 90015-ZV0-C10

BOLT, FLANGE (6X28) (CT200)
(Superseded to 90103-ZZ5-M01)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90019-ZV1-010

SEE PART DETAILS - PRI; BOLT, FLANGE (5X10)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90128-ZV1-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

14

Honda 90674-ZV1-003

BAND, CABLE

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

15

Honda 98200-10500

FUSE A (5A)

Note: (Optional).

$1.49

$

In Stock, only 3 left!

0
