BF5 AK0 SA (BADS) - Honda Outboard Engine, Made in Japan (SN: BADS-2300001 - BADS-9999999) CARBURETOR Parts Diagram

Outboard Engine, Made in Japan

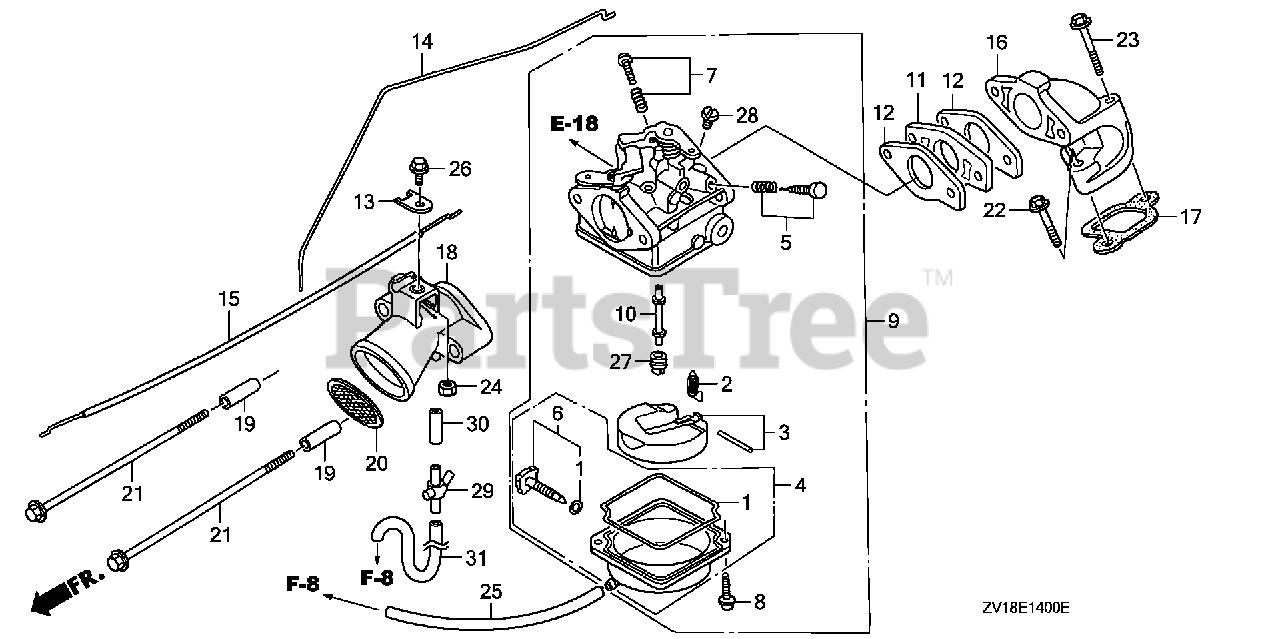

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-881-A00

GASKET SET

$16.99

$

Usually ships in 3-6 days

0

2

Honda 16011-ZV1-F01

VALVE SET, FLOAT

$29.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZV1-F01

FLOAT SET

$28.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZV1-A00

CHAMBER SET, FLOAT
(Superseded to 16015-ZVD-701)

$56.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZV1-F21

SEE PART DETAILS - SUP; SCREW SET (CARBURETOR NO.)
(Superseded to 16016-ZVD-A01)

$10.99

$

Usually ships in 3-6 days

0

6

Honda 16024-ZV1-A00

SEE PART DETAILS - PRI; SCREW SET, DRAIN

Note: Use up to Engine SN BC05E B.

$11.99

$

Usually ships in 3-6 days

0

6

Honda 16024-ZY3-000

SEE PART DETAILS - PRI; SCREW SET, DRAIN (CARBURETOR NO.)

Note: Use from Engine SN BC05E C.

$16.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZV1-F01

SCREW SET

$13.99

$

Usually ships in 3-6 days

0

8

Honda 16081-ZV1-A00

SCREW, PAN

$2.49

$

Usually ships in 3-6 days

0

9

Honda 16100-ZV1-F24

CARBURETOR ASSY. (BC05E D)

$187.99

$

Usually ships in 3-6 days

0

10

Honda 16166-ZV1-F01

NOZZLE, MAIN (CARBURETOR NO.)

$23.99

$

Usually ships in 3-6 days

0

11

Honda 16211-ZV1-000

INSULATOR, CARBURETOR

$7.99

$

Usually ships in 3-6 days

0

12

Honda 16221-ZV1-850

GASKET, CARBURETOR

$2.49

$

In Stock, only 1 left!

0

13

Honda 16576-ZV0-010

HOLDER, CABLE
(Superseded to 16576-ZVA-000)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 16593-ZV1-000

ROD, THROTTLE

$12.99

$

Usually ships in 3-6 days

0

15

Honda 16620-ZV1-A00

CABLE, CHOKE
(Superseded to 16620-ZVD-000)

$8.49

$

Usually ships in 3-6 days

0

16

Honda 17101-ZV1-010

MANIFOLD, IN.

$52.99

$

Usually ships in 3-6 days

0

17

Honda 17151-ZV1-850

GASKET, IN. MANIFOLD

$2.49

$

In Stock, only 2 left!

0

18

Honda 17201-ZV1-305

GUIDE, AIR

Note: Use up to Engine SN 2022777.

$22.99

$

Usually ships in 3-6 days

0

18

Honda 17201-ZV1-C51

GUIDE, AIR

Note: Use from Engine SN 2022778.

$19.99

$

Usually ships in 3-6 days

0

19

Honda 17202-ZV1-010

SEE PART DETAILS - PRI; COLLAR, DISTANCE

$4.49

$

Usually ships in 3-6 days

0

20

Honda 17203-ZV4-000

TRAP, FLAME

$8.99

$

Usually ships in 3-6 days

0

21

Honda 90012-ZV1-010

BOLT, FLANGE (6X102)

$3.99

$

Usually ships in 3-6 days

0

22

Honda 90015-ZV0-C10

BOLT, FLANGE (6X28) (CT200)
(Superseded to 90103-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

23

Honda 90125-ZV1-010

BOLT, FLANGE (6X42)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90302-ZW4-000

NUT, HEX. (6MM)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (9500(95003-05001-60M) (CARBURETOR NO.)

Note: Use up to Engine SN 2022777.

$28.99

$

In Stock, only 1 left!

0

26

Honda 90056-ZY3-000

BOLT, FLANGE (6X12)
(Superseded to 90056-ZY9-M01)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 99101-ZH7-0750

SEE PART DETAILS - PRI; JET, MAIN (#75) (CARBURETOR NO.)

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

27

Honda 99101-ZH7-0720

JET, MAIN (#72) (CARBURETOR NO.)

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

27

Honda 99101-ZH7-0700

SEE PART DETAILS - PRI; JET, MAIN (#70) (CARBURETOR NO.)

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

27

Honda 99101-ZH7-0680

SEE PART DETAILS - PRI; JET, MAIN (#68) (CARBURETOR NO.)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

28

Honda 99103-881-0380

JET (#38)

$11.99

$

Usually ships in 3-6 days

0

29

Honda 17396-ZW1-000

JOINT, THREE WAY

Note: Use from Engine SN 2022778.

$6.99

$

Usually ships in 3-6 days

0

30

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.)

Note: Use from Engine SN 2022778.

$36.99

$

Usually ships in 3-6 days

0

31

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.)

Note: Use from Engine SN 2022778.

$36.99

$

Usually ships in 3-6 days

0
