BF5 AK0 LA (BADS) - Honda Outboard Engine, Made in Japan (SN: BADS-2300001 - BADS-9999999) STERN BRACKET Parts Diagram

Outboard Engine, Made in Japan

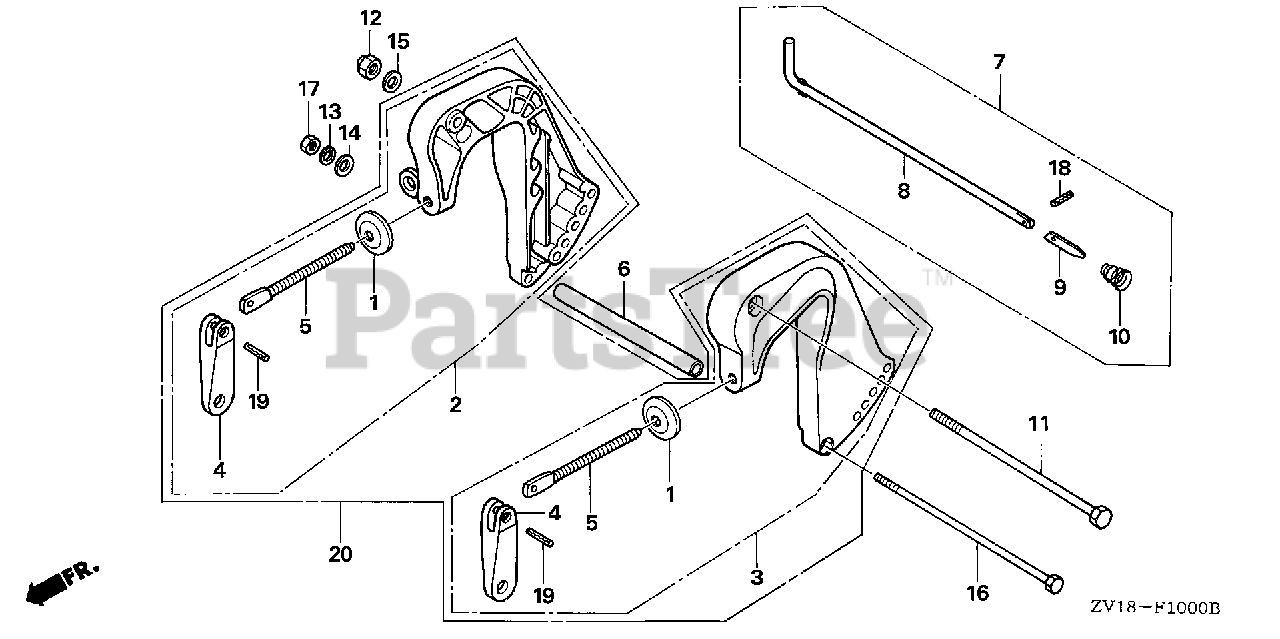

STERN BRACKET Parts Diagram

  • Title
1

Honda 50122-935-010

SEE PART DETAILS - PRI; PLATE, PUSH

$7.49

$

Usually ships in 3-6 days

0

2

Honda 50300-ZV1-842ZB

BRACKET, R. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$112.99

$

Usually ships in 3-6 days

0

3

Honda 50310-ZV1-843ZB

BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$108.99

$

Usually ships in 3-6 days

0

4

Honda 50323-ZW9-300

SEE PART DETAILS - PRI; GRIP, CLAMP

$9.99

$

Usually ships in 3-6 days

0

5

Honda 50325-ZW9-830

SCREW, CLAMP

$20.99

$

Usually ships in 3-6 days

0

6

Honda 50335-ZV1-000

COLLAR, DISTANCE (6MM)

$9.49

$

Usually ships in 3-6 days

0

7

Honda 50340-ZV1-000

ROD, ADJUSTING
(Superseded to 50340-ZVD-000)

$26.99

$

Usually ships in 3-6 days

0

8

Honda 50341-ZV1-310

ROD, ADJUSTING

$32.99

$

Usually ships in 3-6 days

0

9

Honda 50342-ZV1-310

STOPPER, ROD

$5.99

$

Usually ships in 3-6 days

0

10

Honda 50343-ZV1-300

SPRING, ROD ADJUSTING

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90107-ZV1-000

BOLT, HEX. (8X130)
(Superseded to 90107-ZVD-000)

$11.99

$

Usually ships in 3-6 days

0

12

Honda 90305-ZV4-000

NUT, SELF-LOCK (8MM)

$6.49

$

In Stock, only 1 left!

0

13

Honda 90407-920-000

WASHER, SPRING (6MM)

$1.49

$

In Stock, only 2 left!

0

14

Honda 90504-921-010

WASHER, PLAIN (6MM) Use from Frame SN 4800713.

$1.99

$

In Stock, only 1 left!

0

15

Honda 90514-921-000

WASHER (8MM)

$1.49

$

In Stock, Qty 9

0

16

Honda 92101-06140-4J

BOLT, HEX. (6X140)

Note: Use up to Frame SN 2301568.

$6.99

$

Usually ships in 3-6 days

0

16

Honda 90103-ZV1-000

BOLT, HEX. (6X140)

Note: Use from Frame SN 2301569.

$6.99

$

Usually ships in 3-6 days

0

17

Honda 94001-06490-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$2.99

$

In Stock, only 1 left!

0

18

Honda 94305-20063

PIN, SPRING (2X6)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90855-ZW9-300

RIVET (4X22.6)

$15.99

$

Usually ships in 3-6 days

0

20

Honda 04601-ZV1-000ZA

BRACKET KIT, STERN *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)

Note: (Optional).Use up to Frame SN 2300288.

$

$

Not available

20

Honda 04601-ZV1-010ZA

BRACKET KIT, STERN *NH282MU* (OYSTER SILVER METALLIC-U)

Note: (Optional).Use from Frame SN 2300289.

$189.99

$

Usually ships in 3-6 days

0
