BF5 AK LA (BADL) - Honda Outboard Engine, Made in Japan (SN: BADL-1100001 - BADL-1199999) CYLINDER Parts Diagram

Outboard Engine, Made in Japan

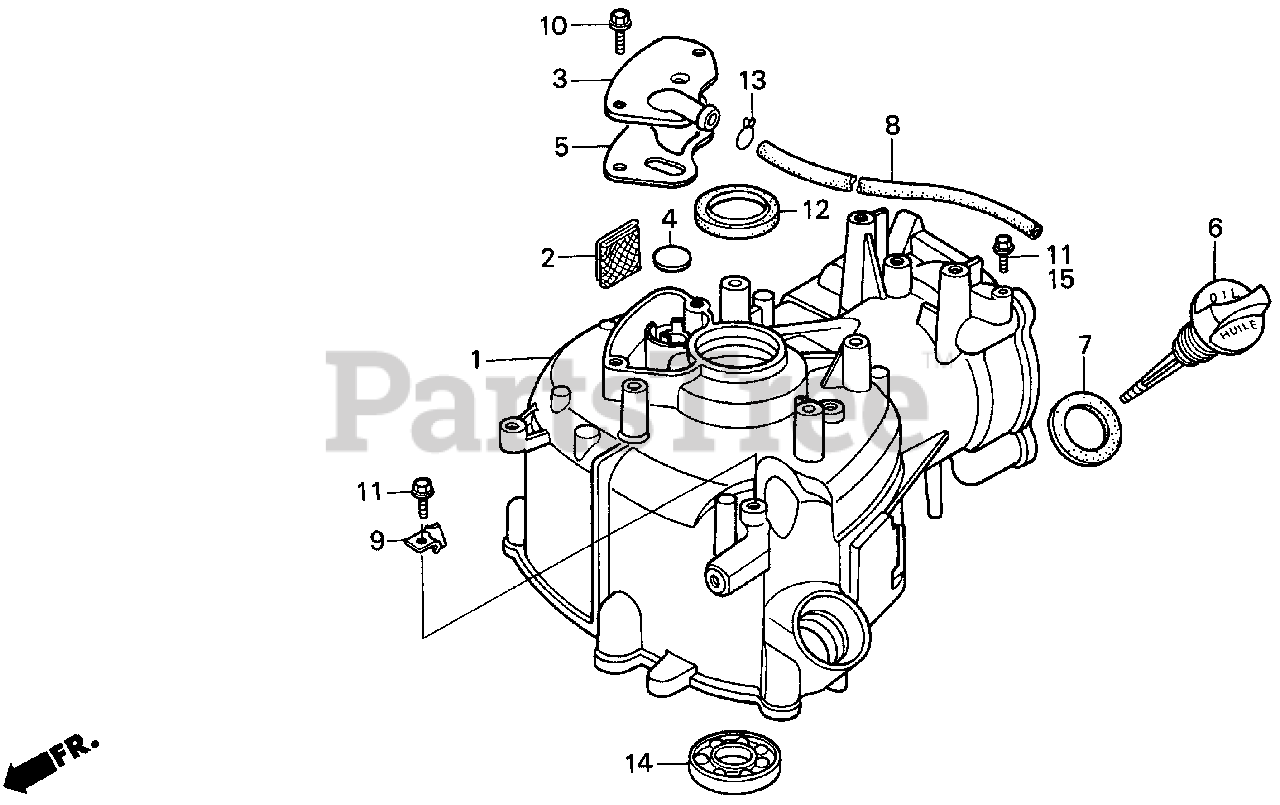

CYLINDER Parts Diagram

  • Title

1

Honda 121A0-ZV1-840ZA

SEE PART DETAILS - SUP; CYLINDER *NH8* (DARK GRAY)

$

$

Currently unavailable

2

Honda 12367-ZE6-010

FILTER, BREATHER

$3.99

$

In Stock, only 1 left!

0

3

Honda 12371-ZV1-010

SEE PART DETAILS - PRI; CAP, BREATHER CHAMBER

$7.49

$

Usually ships in 3-6 days

0

4

Honda 12372-879-000

VALVE, BREATHER

$2.49

$

In Stock, only 2 left!

0

5

Honda 12373-ZV1-000

GASKET, BREATHER CAP

$3.49

$

Usually ships in 3-6 days

0

6

Honda 15620-ZV1-003

SEE PART DETAILS - PRI; CAP, OIL FILLER

$9.49

$

Usually ships in 3-6 days

0

7

Honda 15625-ZE6-000

GASKET, OIL FILLER CAP

$4.49

$

Usually ships in 3-6 days

0

8

Honda 15721-ZV1-000

TUBE, BREATHER

$

$

Not available

9

Honda 15725-ZV1-000

CLAMP, BREATHER TUBE
(Superseded to 15725-ZV1-010)

$

$

Not available

10

Honda 90013-ZV0-000

BOLT, FLANGE (6X12)

$

$

Not available

11

Honda 90019-ZV1-010

BOLT, FLANGE (5X10)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 91201-ZG9-U71

SEE PART DETAILS - PRI; OIL SEAL (25X38X7)

$4.99

$

In Stock, Qty 7

0

12

Honda 91252-888-003

SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI)
(Superseded to 91201-ZG9-U71)

$4.99

$

In Stock, Qty 7

0

13

Honda 95002-02124

SEE PART DETAILS - SUP; CLIP, TUBE (B12)

$

$

Currently unavailable

14

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$24.99

$

In Stock, only 3 left!

0
