BF5 A5 SA (BADS) - Honda Outboard Engine, Made in Japan (SN: BADS-2100001 - BADS-2199999) OIL PAN Parts Diagram

Outboard Engine, Made in Japan

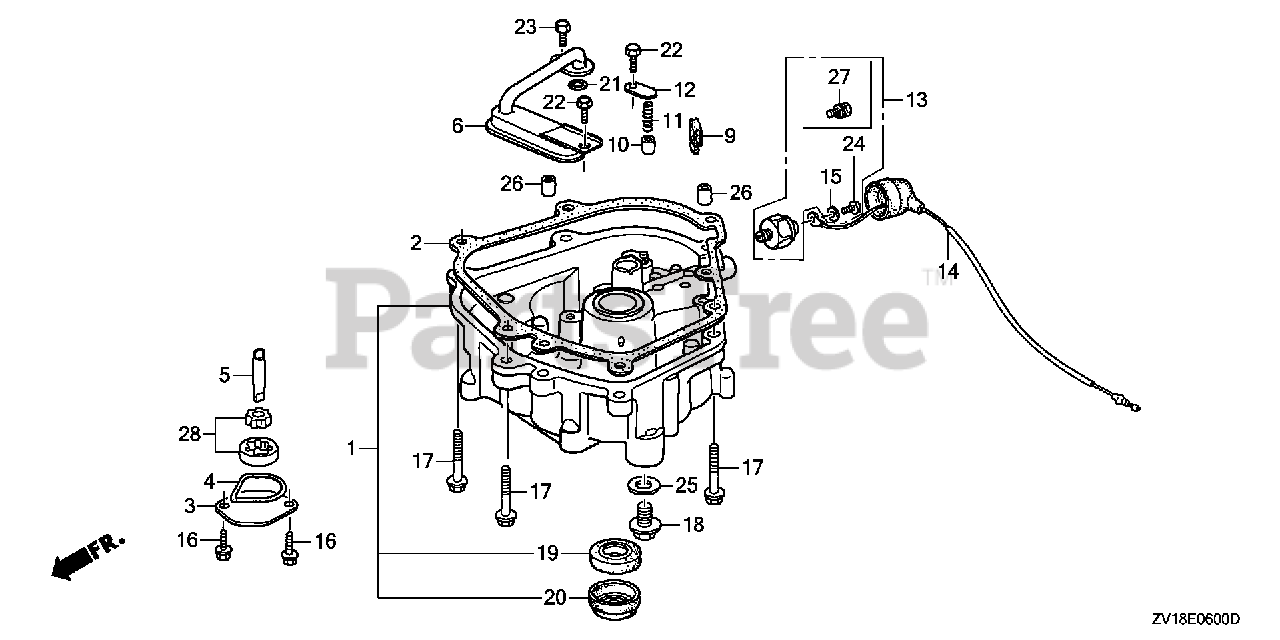

OIL PAN Parts Diagram

  • Title

1

Honda 11300-ZV1-405ZA

SEE PART DETAILS - PRI; PAN ASSY., OIL *NH8* (DARK GRAY)

$213.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZV1-850

GASKET, OIL PAN

$11.99

$

Usually ships in 3-6 days

0

3

Honda 15130-ZV1-000

COVER, OIL PUMP

$10.99

$

Usually ships in 3-6 days

0

4

Honda 15131-ZV1-000

O-RING, PUMP COVER
(Superseded to 15131-ZVD-000)

$1.99

$

Usually ships in 3-6 days

0

5

Honda 15136-ZV1-000

SHAFT, OIL PUMP

$11.99

$

Usually ships in 3-6 days

0

6

Honda 15220-ZV1-000

STRAINER, OIL

$69.99

$

Usually ships in 3-6 days

0

7

Honda 15331-399-000

ROTOR, OIL PUMP (INNER) (YAMADA) (NOT AVAILABLE)

$

$

Not available

8

Honda 15332-399-000

ROTOR, OIL PUMP (OUTER) (YAMADA) (NOT AVAILABLE)

$

$

Not available

9

Honda 15335-ZV1-000

RUBBER, OIL RETURN

$4.49

$

Usually ships in 3-6 days

0

10

Honda 15473-ZA0-000

VALVE, CHECK

$10.99

$

Usually ships in 3-6 days

0

11

Honda 15474-881-000

SPRING, CHECK VALVE

$5.99

$

Usually ships in 3-6 days

0

12

Honda 15475-ZA0-000

PLATE, CHECK VALVE

$4.99

$

Usually ships in 3-6 days

0

13

Honda 37200-935-004

SWITCH, OIL PRESSURE

$40.99

$

Usually ships in 3-6 days

0

14

Honda 37201-ZV1-000

WIRE, OIL PRESSURE SWITCH

$13.99

$

Usually ships in 3-6 days

0

15

Honda 37202-935-004

WASHER (4MM)

$0.99

$

Usually ships in 3-6 days

0

16

Honda 90013-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, only 3 left!

0

17

Honda 90036-ZY3-000

SEE PART DETAILS - PRI; BOLT, FLANGE (8X32)
(Superseded to 90036-ZY3-030)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 90131-ZW4-000

BOLT, DRAIN PLUG (12X15)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 91201-ZG9-U71

SEE PART DETAILS - PRI; OIL SEAL (25X38X7)

$4.99

$

In Stock, Qty 7

0

19

Honda 91252-888-003

SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI)
(Superseded to 91201-ZG9-U71)

$4.99

$

In Stock, Qty 7

0

20

Honda 91255-ZV1-003

SEAL, COUPLING (25X40X14)

$13.99

$

Usually ships in 3-6 days

0

21

Honda 91309-ML7-003

O-RING (9.6X2.6) (ARAI)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 92101-06012-0J

BOLT, HEX. (6X12)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 93402-06014-08

BOLT-WASHER (6X14)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 93500-04006-3J

SCREW, PAN (4X6)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

26

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

28

Honda 15021-399-000

ROTOR SET, OIL PUMP

$59.99

$

Usually ships in 3-6 days

0
