BF5 A5 SA (BADS) - Honda Outboard Engine, Made in Japan (SN: BADS-2100001 - BADS-2199999) FUEL TANK Parts Diagram

Outboard Engine, Made in Japan

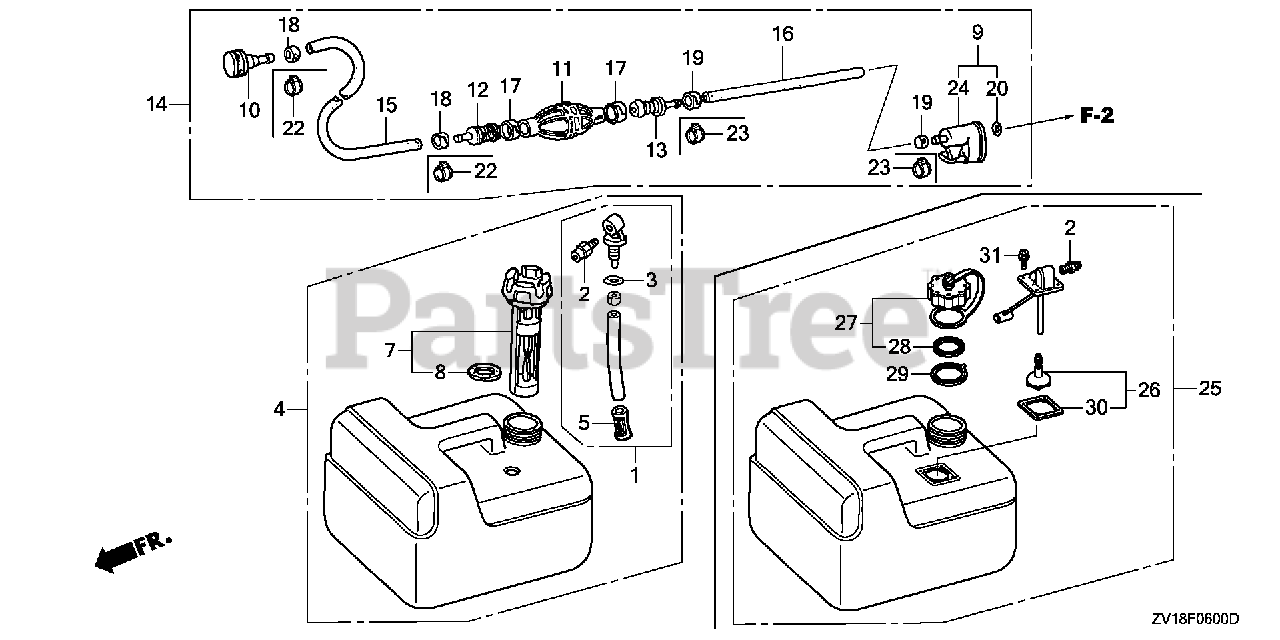

FUEL TANK Parts Diagram

  • Title

1

Honda 16900-ZV4-A22

JOINT ASSY., FUEL

$37.99

$

Usually ships in 3-6 days

0

2

Honda 16977-ZV5-A00

FITTING, QUICK DISCONNECT

$19.99

$

Usually ships in 3-6 days

0

3

Honda 16979-ZV5-901

O-RING

$0.99

$

Usually ships in 3-6 days

0

4

Honda 17500-ZV4-A24

SEE PART DETAILS - SUP; TANK ASSY., FUEL
(Superseded to 17500-ZZ5-003)

$231.99

$

Usually ships in 3-6 days

0

4

Honda 17500-ZZ5-003

SEE PART DETAILS - PRI; TANK ASSY., FUEL

$231.99

$

Usually ships in 3-6 days

0

5

Honda 17583-ZV5-901

SEE PART DETAILS - PRI; FILTER, FUEL

$2.99

$

In Stock, only 1 left!

0

7

Honda 17620-ZV4-A23

SEE PART DETAILS - PRI; CAP, FUEL FILLER

$

$

Not available

8

Honda 17624-ZV5-902

GASKET, FUEL CAP

$8.99

$

Usually ships in 3-6 days

0

9

Honda 17650-921-003ZB

CONNECTOR, FUEL *NH1* (BLACK)

$48.99

$

Usually ships in 3-6 days

0

10

Honda 17660-ZW9-003

CONNECTOR, FUEL

$42.99

$

Usually ships in 3-6 days

0

11

Honda 17661-921-010

SEE PART DETAILS - PRI; BULB, PRIMER

$17.99

$

Usually ships in 3-6 days

0

12

Honda 17665-ZV5-000

VALVE, IN.

$15.99

$

Usually ships in 3-6 days

0

13

Honda 17680-921-000

VALVE, OUTLET

$12.99

$

Usually ships in 3-6 days

0

14

Honda 17700-881-C03ZA

TUBE, FUEL *NH1* (BLACK)

$143.99

$

Usually ships in 3-6 days

0

15

Honda 17701-ZV5-000

TUBE, FUEL LONG (7.3X2000)

$62.99

$

Usually ships in 3-6 days

0

16

Honda 17702-921-000

TUBE, FUEL SHORT

$9.99

$

Usually ships in 3-6 days

0

17

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 17704-ZW9-660

BAND, TUBE CLIP (11MM)

$

$

Not available

20

Honda 91353-921-310

O-RING (5.5MM)

$2.49

$

In Stock, only 1 left!

0
