BF5 A5 SA (BADS) - Honda Outboard Engine, Made in Japan (SN: BADS-2100001 - BADS-2199999) CRANKSHAFT + PISTON Parts Diagram

Outboard Engine, Made in Japan

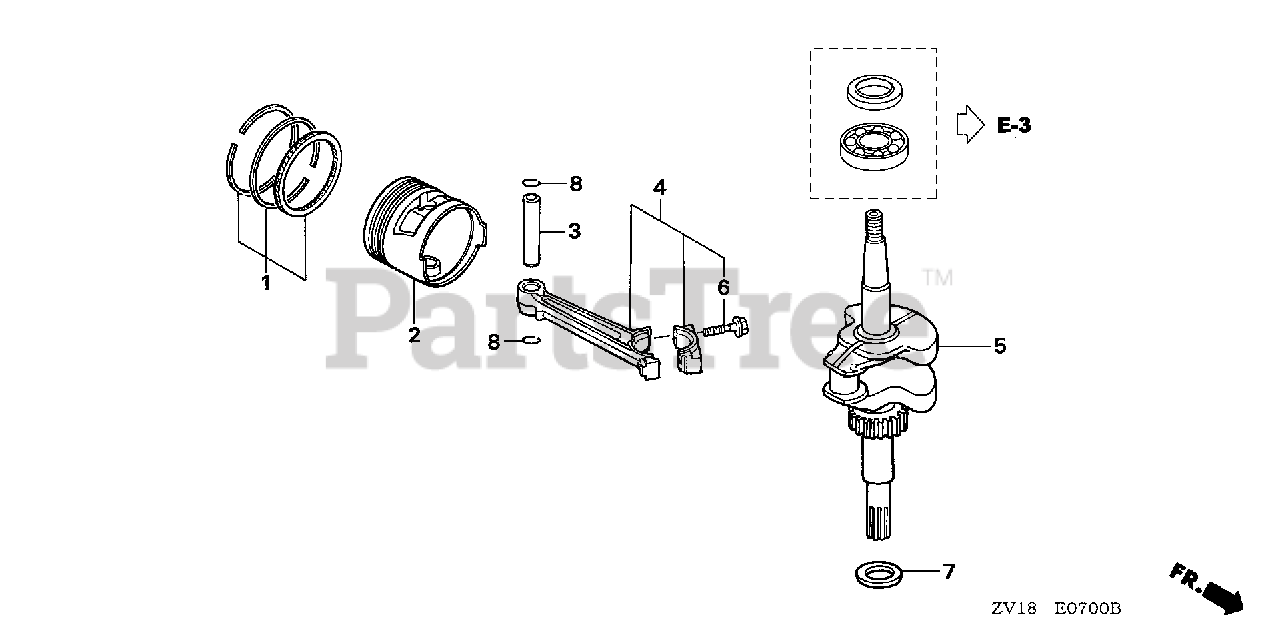

CRANKSHAFT + PISTON Parts Diagram

  • Title
1

Honda 13010-ZH7-003

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (TEIKOKU)
(Superseded to 13010-ZH7-004)

$31.99

$

In Stock, only 1 left!

0

1

Honda 13010-ZH7-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NIPPON)

$31.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZH7-003

RING SET, PISTON (0.25) (TEIKOKU)
(Superseded to 13011-ZH7-004)

Note: (Optional).

$34.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZH7-003

RING SET, PISTON (0.75) (TEIKOKU)
(Superseded to 13013-ZH7-004)

Note: (Optional).

$34.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZV1-000

PIN, PISTON

$11.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZV1-000

ROD ASSY., CONNECTING

$116.99

$

Usually ships in 3-6 days

0

5

Honda 13310-ZV1-010

CRANKSHAFT

$314.99

$

Usually ships in 3-6 days

0

6

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

Note: Use up to Engine SN 2077179.

$3.99

$

In Stock, only 2 left!

0

6

Honda 90001-Z1T-000

BOLT, CONNECTING ROD

Note: Use from Engine SN 2077180.

$2.99

$

Usually ships in 3-6 days

0

7

Honda 90459-357-000

WASHER C, THRUST (25MM)

$4.99

$

Usually ships in 3-6 days

0

8

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

$1.49

$

In Stock, Qty 18

0
