BF45 AM LHA (BLAF) - Honda Marine Engine, Made in Japan (SN: BLAF-1000001 - BLAF-9999999) OIL PAN Parts Diagram

Marine Engine, Made in Japan

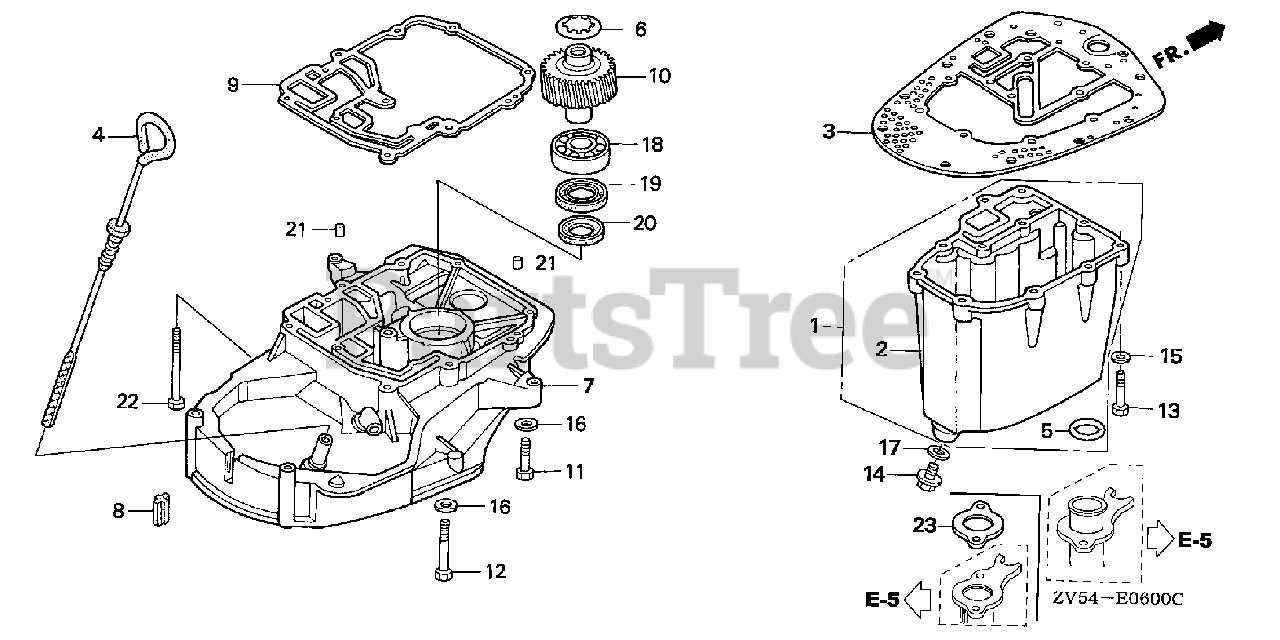

OIL PAN Parts Diagram

  • Title
1

Honda 06113-ZV5-000ZA

OIL PAN KIT *TGRAY* (GRAY) (N/A: USE 04102-ZV5-000) (ALT. PNO: 04102-ZV5-000)

Note: Use up to Engine SN 1013155.

$

$

Currently unavailable

2

Honda 11311-ZV5-010ZA

SEE PART DETAILS - SUP; PAN, OIL *TGRAY* (GRAY)
(Superseded to 11311-ZV5-040ZA)

Note: Use from Engine SN 1013156.

$176.99

$

Usually ships in 3-6 days

0

3

Honda 11381-ZV5-004

GASKET, OIL PAN

$63.99

$

Usually ships in 3-6 days

0

4

Honda 15650-ZV5-000

DIPSTICK, OIL

$21.99

$

Usually ships in 3-6 days

0

5

Honda 18291-ZV5-000

GASKET, EX. PIPE

Note: Use up to Engine SN 1013155.

$

$

Not available

6

Honda 23134-ZV5-000

SPRING, THRUST

$5.99

$

Usually ships in 3-6 days

0

7

Honda 23160-ZV5-020ZA

SEE PART DETAILS - SUP; CASE, PRIMARY GEAR *NH8* (DARK GRAY)

$

$

Currently unavailable

8

Honda 23161-ZV5-000

RUBBER, SEAL

$3.99

$

Usually ships in 3-6 days

0

9

Honda 23162-ZV5-004

SEE PART DETAILS - SUP; GASKET, PRIMARY GEAR CASE
(Superseded to 23162-ZV5-024)

$39.99

$

Usually ships in 3-6 days

0

9

Honda 23162-ZV5-014

SEE PART DETAILS - SUP; GASKET, PRIMARY GEAR CASE
(Superseded to 23162-ZV5-024)

$39.99

$

Usually ships in 3-6 days

0

9

Honda 23162-ZV5-024

SEE PART DETAILS - PRI; GASKET, PRIMARY GEAR CASE

$39.99

$

Usually ships in 3-6 days

0

10

Honda 23437-ZV5-000

GEAR, PRIMARY DRIVEN (33T)

$215.99

$

Usually ships in 3-6 days

0

11

Honda 90009-ZV5-000

BOLT, HEX. (8X35)

$5.99

$

Usually ships in 3-6 days

0

12

Honda 90010-ZV5-000

BOLT, HEX. (8X55)

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90113-ZV5-000

BOLT, HEX. (6X25)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90131-ZV5-000

BOLT, DRAIN PLUG

$10.99

$

Usually ships in 3-6 days

0

15

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90601-ZE2-000

WASHER, DRAIN PLUG (12MM)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 91024-ZV5-003

BEARING, RADIAL BALL (6205)

$21.99

$

Usually ships in 3-6 days

0

19

Honda 91204-ZV5-005

OIL SEAL (25X40X7)

$15.99

$

Usually ships in 3-6 days

0

20

Honda 91221-ZV5-005

SEAL, WATER (17X26X7)

$10.99

$

Usually ships in 3-6 days

0

21

Honda 94303-06100

PIN, DOWEL (6X10)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 95701-08075-08

BOLT, FLANGE (8X75)

$3.99

$

Usually ships in 3-6 days

0

23

Honda 18291-ZV5-010

GASKET, EX. PIPE

Note: Use from Engine SN 1013156.

$4.49

$

Usually ships in 3-6 days

0
