BF45 AM LHA (BLAF) - Honda Marine Engine, Made in Japan (SN: BLAF-1000001 - BLAF-9999999) CHARGE COIL KIT Parts Diagram

Marine Engine, Made in Japan

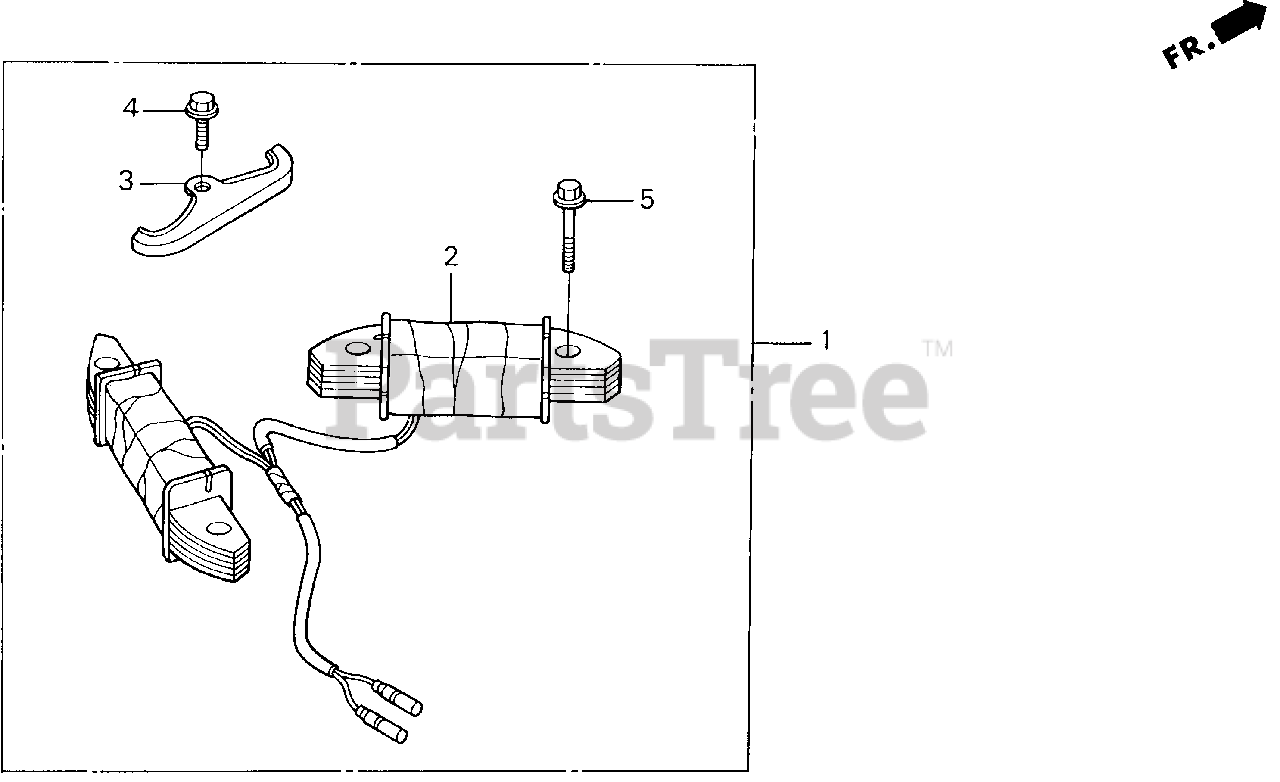

CHARGE COIL KIT Parts Diagram

  • Title
1

Honda 06320-ZV5-910

SEE PART DETAILS - SUP; COIL KIT, CHARGE (10A)
(Superseded to 06320-ZV5-911)

$

$

Not available

1

Honda 06320-ZV5-911

SEE PART DETAILS - PRI; COIL KIT, CHARGE (10A)

$

$

Not available

2

Honda 31630-ZV5-911

SEE PART DETAILS - SUP; COIL ASSY., CHARGE (12V-10A)

$

$

Currently unavailable

2

Honda 31630-ZV5-912

SEE PART DETAILS - PRI; COIL ASSY., CHARGE (12V/10A)

$201.99

$

Usually ships in 3-6 days

0

3

Honda 32117-ZV5-000

HOLDER, WIRE (B)

$29.99

$

Usually ships in 3-6 days

0

4

Honda 90122-ZV1-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

5

Honda 90123-ZV0-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X32)
(Superseded to 90123-ZV0-010)

$2.49

$

Usually ships in 3-6 days

0
