BF40 DK4 LHA (BBDJ) - Honda Marine Engine, Made in Japan (SN: BBDJ-1300001 - BBDJ-9999999) TIMING BELT Parts Diagram

Marine Engine, Made in Japan

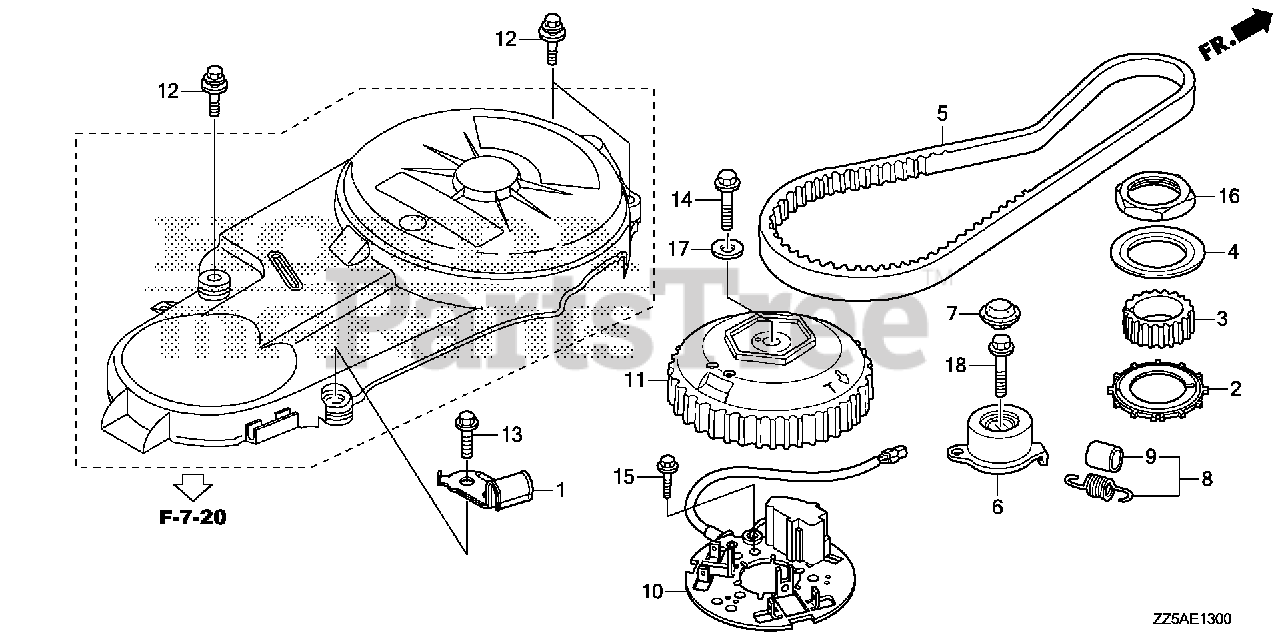

TIMING BELT Parts Diagram

  • Title
1

Honda 12328-ZZ5-000

CLAMP, TUBE

$4.99

$

Usually ships in 3-6 days

0

2

Honda 13622-ZZ5-000

PLATE, TIMING BELT GUIDE

$29.99

$

Usually ships in 3-6 days

0

3

Honda 14315-ZZ5-000

PULLEY, TIMING (22T)

$68.99

$

Usually ships in 3-6 days

0

4

Honda 14323-ZV5-000

PLATE, TIMING BELT GUIDE

$14.99

$

Usually ships in 3-6 days

0

5

Honda 14400-ZV5-014

BELT, TIMING

$125.99

$

Usually ships in 3-6 days

0

6

Honda 14510-ZV5-003

TENSIONER, TIMING BELT
(Superseded to 14510-ZV5-013)

$94.99

$

Usually ships in 3-6 days

0

7

Honda 14515-ZV5-000

CAP, TIMING BELT TENSIONER

$7.99

$

Usually ships in 3-6 days

0

8

Honda 14520-ZV5-020

SEE PART DETAILS - PRI; SPRING, TIMING BELT ADJUSTING

$5.99

$

Usually ships in 3-6 days

0

9

Honda 14522-ZV5-000

BOOT, SPRING

$2.99

$

Usually ships in 3-6 days

0

10

Honda 30310-ZZ5-003

COIL ASSY., PULSER

$171.99

$

Usually ships in 3-6 days

0

11

Honda 30410-ZV5-000

ROTOR, PULSER (44T)

$225.99

$

Usually ships in 3-6 days

0

12

Honda 90013-ZZ5-M00

BOLT-WASHER (6X25)
(Superseded to 90013-ZZ5-M01)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90014-ZZ5-M00

BOLT, FLANGE (6X25)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90031-ZZ5-M00

BOLT, FLANGE (10X32)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90050-ZZ5-M00

BOLT, FLANGE (6X12)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 90202-ZV5-000

NUT, LOCK (48MM)

$30.99

$

Usually ships in 3-6 days

0

17

Honda 90435-ZZ5-M00

WASHER (10X28X5)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 95701-10038-08

BOLT, FLANGE (10X38)

$2.99

$

Usually ships in 3-6 days

0
