BF40 D LRTA (BBDJ) - Honda Marine Engine, Made in Japan (SN: BBDJ-1000001 - BBDJ-9999999) TUBING Parts Diagram

Marine Engine, Made in Japan

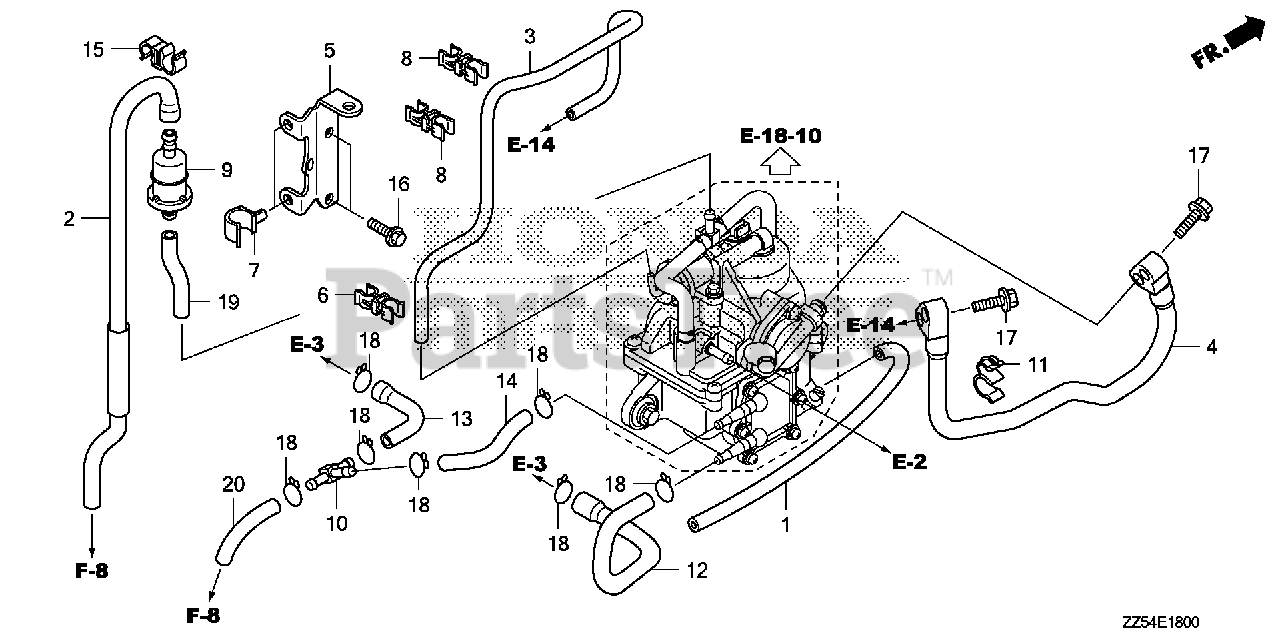

TUBING Parts Diagram

  • Title

1

Honda 16198-ZZ5-000

TUBE, DRAIN

$5.99

$

Usually ships in 3-6 days

0

2

Honda 16199-ZZ5-000

TUBE, AIR VENT

$21.99

$

Usually ships in 3-6 days

0

3

Honda 16748-ZZ5-000

TUBE, PRESSURE REGULATOR CONTROL

Note: Use up to Engine SN 1003512.

$

$

Not available

3

Honda 16748-ZZ5-010

TUBE, PRESSURE REGULATOR

Note: Use from Engine SN 1003513.

$14.99

$

Usually ships in 3-6 days

0

4

Honda 16755-ZZ5-003

HOSE, FUEL

$152.99

$

Usually ships in 3-6 days

0

5

Honda 16816-ZZ5-000

BRACKET A, TUBE CLAMP

$13.99

$

Usually ships in 3-6 days

0

6

Honda 16895-ZZ5-003

CLAMP, AIR VENT TUBE

$4.49

$

Usually ships in 3-6 days

0

7

Honda 16896-ZY9-003

CLAMP B, FUEL TUBE

$4.49

$

Usually ships in 3-6 days

0

8

Honda 16898-ZY9-003

CLAMP D, FUEL TUBE

$5.99

$

Usually ships in 3-6 days

0

9

Honda 16910-ZV4-015

FILTER, FUEL

$20.99

$

In Stock, only 1 left!

0

10

Honda 16960-ME9-000

PIPE, THREE WAY JOINT

$23.99

$

Usually ships in 3-6 days

0

11

Honda 17439-PY3-A01

CLAMP, TUBE (7.5-11.5) (BLACK)

$7.99

$

Usually ships in 3-6 days

0

12

Honda 19255-ZZ5-000

TUBE A, WATER

$5.49

$

Usually ships in 3-6 days

0

13

Honda 19256-ZZ5-000

TUBE B, WATER

$4.99

$

Usually ships in 3-6 days

0

14

Honda 19257-ZZ5-000

TUBE C, WATER

$5.49

$

Usually ships in 3-6 days

0

15

Honda 47585-SJ6-003

CLIP, R. BRAKE WIRE

$9.49

$

Usually ships in 3-6 days

0

16

Honda 90011-ZW9-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90016-ZW9-000

BOLT, FLANGE (6X25)
(Superseded to 90014-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90603-ZV4-000

CLIP, TUBE (B10)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.3X35)

$73.99

$

Usually ships in 3-6 days

0

20

Honda 95005-50003-30M

BULK HOSE, VACUUM (5X3000) (5X45)

$32.99

$

Usually ships in 3-6 days

0
