BF40 D LHA (BBDJ) - Honda Marine Engine, Made in Japan (SN: BBDJ-1000001 - BBDJ-9999999) WIRE HARNESS Parts Diagram

Marine Engine, Made in Japan

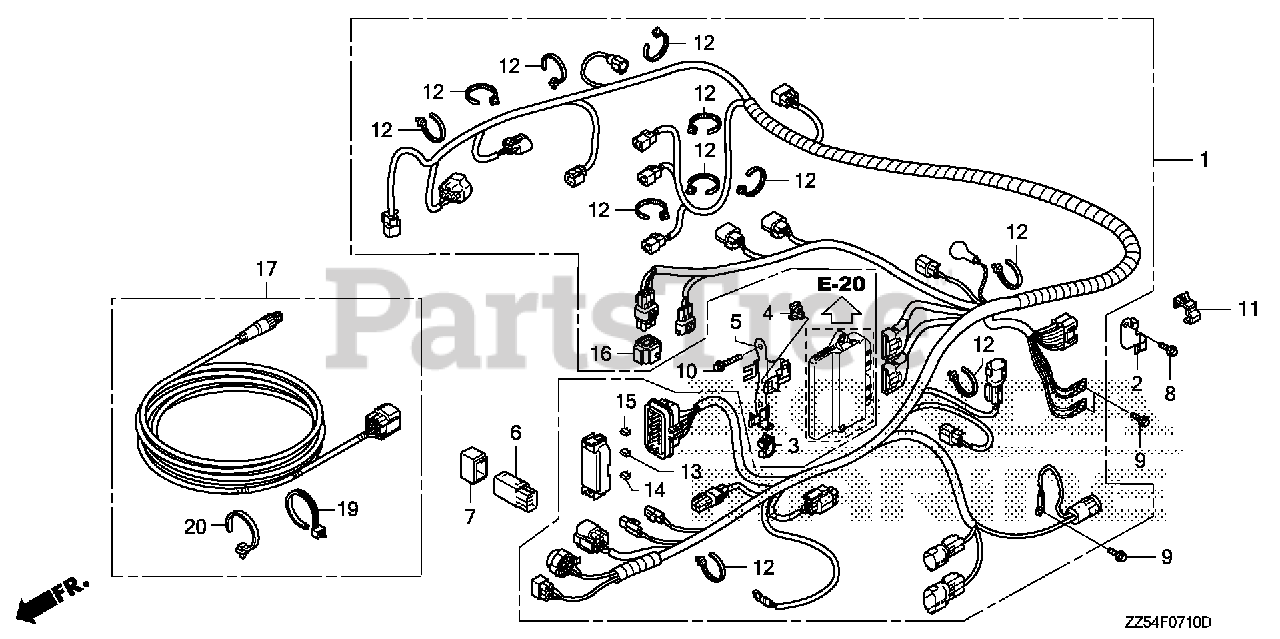

WIRE HARNESS Parts Diagram

  • Title

1

Honda 32100-ZZ5-650

WIRE HARNESS ASSY., MAIN

Note: Use up to Frame SN 1003512.

$912.99

$

Usually ships in 3-6 days

0

1

Honda 32100-ZZ5-651

WIRE HARNESS ASSY., MAIN

Note: Use from Frame SN 1003513.

$897.99

$

Usually ships in 3-6 days

0

2

Honda 32103-ZZ5-000

BRACKET C, CONNECTOR

$

$

Not available

3

Honda 32660-MJ6-710

CLAMP, WIRE

$4.99

$

In Stock, only 1 left!

0

4

Honda 38216-ZY3-003

CLIP, CONNECTOR HOLDER (B)

$3.49

$

Usually ships in 3-6 days

0

5

Honda 38217-ZZ5-000

BRACKET, FUSE BOX

Note: Use up to Frame SN 1003512.

$95.99

$

Usually ships in 3-6 days

0

5

Honda 38217-ZZ5-010

BRACKET, FUSE BOX

Note: Use from Frame SN 1003513.

$94.99

$

Usually ships in 3-6 days

0

6

Honda 38580-ZZ5-003

RELAY ASSY., MAIN

$58.99

$

Usually ships in 3-6 days

0

7

Honda 38586-ZZ5-003

SUSPENSION, RELAY

$5.49

$

Usually ships in 3-6 days

0

8

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

9

Honda 90013-ZW9-000

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

10

Honda 90015-ZV0-C10

BOLT, FLANGE (6X28) (CT200)
(Superseded to 90103-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90651-SB2-003

CLIP, WIRE HARNESS (13MM) (GRAY)

$8.99

$

Usually ships in 3-6 days

0

12

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0

13

Honda 98200-41000

FUSE, MINI (10A)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 98200-41500

FUSE, MINI (15A)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 98200-43000

FUSE, MINI (30A)

$2.49

$

In Stock, Qty 8

0

16

Honda 32127-ZZ3-000

SUSPENSION, CONNECTOR

Note: Use from Frame SN 1003513.

$5.99

$

Usually ships in 3-6 days

0

17

Honda 06328-ZZ3-763

SEE PART DETAILS - PRI; KIT, CABLE (6FT) (NMEA)
(Superseded to 06328-ZZ3-764)

Note: (Optional).

$376.99

$

Usually ships in 3-6 days

0

17

Honda 06328-ZZ3-764

KIT, CABLE (6FT) (NMEA)

Note: (Optional).

$376.99

$

Usually ships in 3-6 days

0

19

Honda 90650-ZY1-003

TIE, CABLE

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

20

Honda 91540-STK-003

CLIP, HARNESS BAND (155.3MM) (BLACK)

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0
