BF40 D LHA (BBDJ) - Honda Marine Engine, Made in Japan (SN: BBDJ-1000001 - BBDJ-9999999) SWIVEL CASE Parts Diagram

Marine Engine, Made in Japan

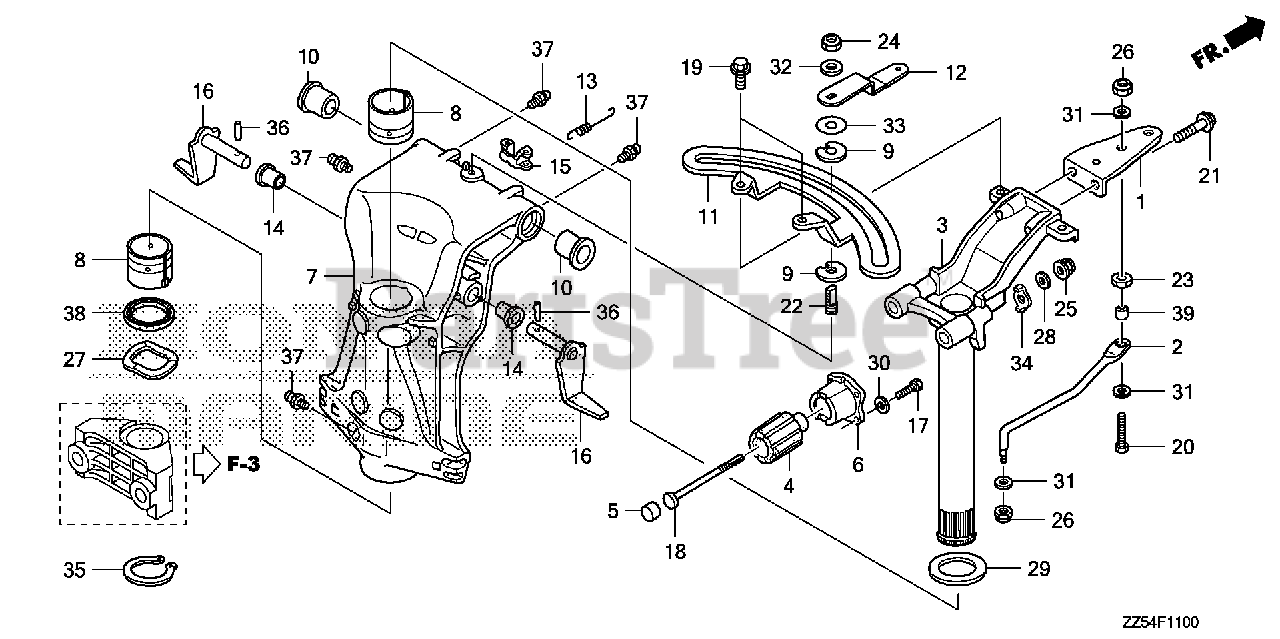

SWIVEL CASE Parts Diagram

  • Title

3

Honda 50100-ZW4-H02

FRAME, MOUNTING

$485.99

$

Usually ships in 3-6 days

0

4

Honda 50151-ZV5-000

RUBBER, MOUNTING (UPPER)

$93.99

$

Usually ships in 3-6 days

0

5

Honda 50153-ZV5-000

RUBBER, MOUNTING (UPPER) (B)

$5.99

$

Usually ships in 3-6 days

0

6

Honda 50167-ZZ5-000

HOLDER, MOUNTING (UPPER)

$36.99

$

Usually ships in 3-6 days

0

7

Honda 50201-ZZ5-000ZA

CASE, SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U)

$351.99

$

Usually ships in 3-6 days

0

8

Honda 50211-ZZ5-000

LINER, SWIVEL CASE

$8.99

$

Usually ships in 3-6 days

0

9

Honda 50212-ZW9-003

SEE PART DETAILS - PRI; BLOCK, FRICTION

$15.99

$

Usually ships in 3-6 days

0

10

Honda 50214-ZV5-003

BUSH, SWIVEL CASE

$10.99

$

Usually ships in 3-6 days

0

11

Honda 50218-ZW4-H00

PLATE, FRICTION

$60.99

$

Usually ships in 3-6 days

0

12

Honda 50219-ZW4-H00

LEVER, FRICTION

$11.99

$

Usually ships in 3-6 days

0

13

Honda 50515-ZV5-000

SPRING, TILT LEVER

$4.99

$

In Stock, only 1 left!

0

14

Honda 50522-ZV5-000

BUSH, TILT ARM

$8.49

$

In Stock, only 2 left!

0

15

Honda 50527-ZV5-000

BRACKET, TILTING

$14.99

$

Usually ships in 3-6 days

0

16

Honda 50529-ZW4-H00

STOPPER, TILT

$69.99

$

Usually ships in 3-6 days

0

17

Honda 90101-ZV1-000

BOLT, HEX. (6X18)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90101-ZV5-003

BOLT, SPECIAL (10X130)

$65.99

$

Usually ships in 3-6 days

0

19

Honda 90102-ZW9-000

BOLT, FLANGE (6X12) Use from Frame SN 1005249.

$2.99

$

Usually ships in 3-6 days

0

22

Honda 90162-ZW9-000

BOLT, STUD (8X26)

$6.99

$

Usually ships in 3-6 days

0

24

Honda 90305-ZW9-000

NUT, SELF-LOCK (8MM)

$6.99

$

Usually ships in 3-6 days

0

25

Honda 90306-ZW4-003

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$6.49

$

Usually ships in 3-6 days

0

27

Honda 90501-ZV5-000

WASHER, WAVE (40MM)

$10.99

$

Usually ships in 3-6 days

0

28

Honda 90501-ZW4-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 90504-ZV5-000

WASHER, THRUST (34MM)

$10.99

$

Usually ships in 3-6 days

0

30

Honda 90506-ZV4-000

WASHER, PLAIN (6MM) Use up to Frame SN 4800342.

$3.49

$

Usually ships in 3-6 days

0

32

Honda 90514-921-000

WASHER (8MM)

$1.49

$

In Stock, Qty 9

0

33

Honda 90517-ZW9-000

WASHER, NYLON (8MM)

$2.49

$

Usually ships in 3-6 days

0

34

Honda 90544-ZV5-010

SEE PART DETAILS - PRI; WASHER, SPECIAL

$4.99

$

In Stock, only 2 left!

0

35

Honda 90651-ZW4-000

SEE PART DETAILS - PRI; CIRCLIP (OUTER) (39MM)

$7.49

$

Usually ships in 3-6 days

0

36

Honda 90752-ZW6-000

PIN, SPRING (2.5X20)

$3.49

$

Usually ships in 3-6 days

0

37

Honda 90951-ZV7-010

SEE PART DETAILS - PRI; NIPPLE, GREASE

$2.99

$

Usually ships in 3-6 days

0

38

Honda 91256-ZV5-003

SEE PART DETAILS - PRI; OIL SEAL (39.5X52X6) (ARAI)

$10.99

$

Usually ships in 3-6 days

0
