BF40 D LHA (BBDJ) - Honda Marine Engine, Made in Japan (SN: BBDJ-1000001 - BBDJ-9999999) STERN BRACKET Parts Diagram

Marine Engine, Made in Japan

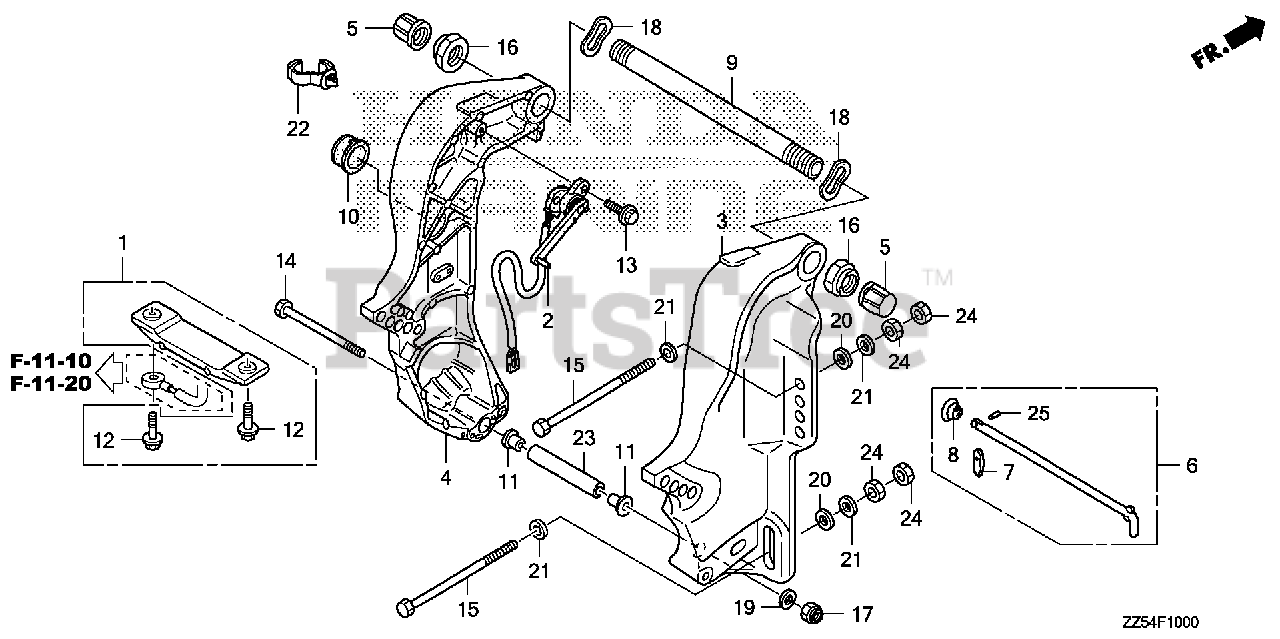

STERN BRACKET Parts Diagram

  • Title

1

Honda 06411-ZV5-020

SEE PART DETAILS - PRI; METAL KIT, ANODE

$51.99

$

Usually ships in 3-6 days

0

3

Honda 50301-ZW4-H10ZA

BRACKET, R. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$386.99

$

Usually ships in 3-6 days

0

4

Honda 50311-ZZ5-010ZA

SEE PART DETAILS - PRI; BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$375.99

$

Usually ships in 3-6 days

0

5

Honda 50331-ZV5-000

CAP, TILTING BOLT

$8.99

$

Usually ships in 3-6 days

0

6

Honda 50340-ZV5-010

SEE PART DETAILS - PRI; ROD, ADJUSTING

Note: Use up to Frame SN 1002702.

$47.99

$

Usually ships in 3-6 days

0

6

Honda 50340-ZZ5-000

ROD, ADJUSTING

Note: Use from Frame SN 1002703.

$87.99

$

Usually ships in 3-6 days

0

7

Honda 50342-ZV5-300

STOPPER, ROD

$7.99

$

Usually ships in 3-6 days

0

8

Honda 50343-921-300

SPRING, ADJUSTING ROD

$4.99

$

Usually ships in 3-6 days

0

9

Honda 50381-ZZ5-000

SEE PART DETAILS - PRI; SHAFT, TILTING

$113.99

$

Usually ships in 3-6 days

0

11

Honda 56513-ZV5-000

BUSH, CYLINDER (LOWER)

$5.99

$

Usually ships in 3-6 days

0

12

Honda 90009-ZW9-000

BOLT, FLANGE (6X23) Use from Frame SN 4800343.

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90108-ZV5-000

BOLT, HEX. (10X158)

$36.99

$

Usually ships in 3-6 days

0

15

Honda 90129-ZV5-850

BOLT, HEX. (12X100)

Note: Use up to Frame SN 1003512.

$31.99

$

Usually ships in 3-6 days

0

15

Honda 90129-ZZ3-000

BOLT, HEX. (12X119)

Note: Use from Frame SN 1003513.

$19.99

$

Usually ships in 3-6 days

0

16

Honda 90304-ZV5-013

SEE PART DETAILS - PRI; NUT, SELF-LOCK (7/8-14UNF)

$26.99

$

Usually ships in 3-6 days

0

17

Honda 90306-ZV5-003

NUT, SELF-LOCK (10MM)

$5.49

$

In Stock, only 2 left!

0

18

Honda 90517-ZV5-000

WASHER, WAVE (22MM)

$8.49

$

Usually ships in 3-6 days

0

19

Honda 90545-ZV5-000

WASHER, PLAIN (10MM)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90552-ZV5-000

WASHER, PLAIN (12MM)

$6.99

$

Usually ships in 3-6 days

0

21

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$4.49

$

Usually ships in 3-6 days

0

23

Honda 91556-ZZ5-C00

SEE PART DETAILS - PRI; COLLAR, DISTANCE (10X90)

$40.99

$

Usually ships in 3-6 days

0

24

Honda 94001-12490-0S

NUT, HEX. (12MM)

$2.99

$

Usually ships in 3-6 days

0

25

Honda 90751-ZW6-000

PIN, SPRING (2.5X8)

Note: Use from Frame SN 1002703.

$1.99

$

Usually ships in 3-6 days

0

25

Honda 94305-25083

PIN, SPRING (2.5X8)

Note: Use up to Frame SN 1002702.

$1.99

$

Usually ships in 3-6 days

0
