BF40 D LHA (BBDJ) - Honda Marine Engine, Made in Japan (SN: BBDJ-1000001 - BBDJ-9999999) PRIMARY GEAR CASE Parts Diagram

Marine Engine, Made in Japan

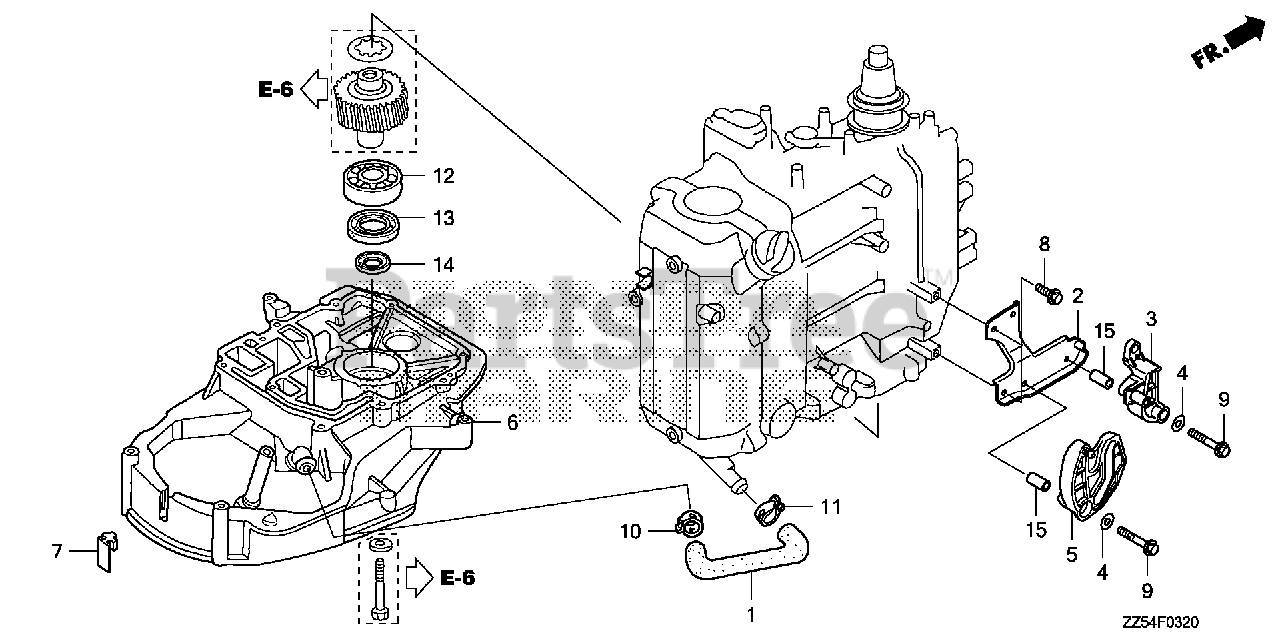

PRIMARY GEAR CASE Parts Diagram

  • Title

1

Honda 15422-ZV5-010

TUBE, OIL

$17.99

$

Usually ships in 3-6 days

0

2

Honda 17849-ZZ5-000

BRACKET, THROTTLE ARM

$52.99

$

Usually ships in 3-6 days

0

3

Honda 17930-ZZ5-000

SEE PART DETAILS - SUP; ARM, THROTTLE
(Superseded to 17930-ZZ5-010)

Note: Use up to Frame SN 1007459.

$72.99

$

Usually ships in 3-6 days

0

3

Honda 17930-ZZ5-010

SEE PART DETAILS - PRI; ARM, THROTTLE

$72.99

$

Usually ships in 3-6 days

0

4

Honda 17936-921-000

WASHER, PIVOT

$1.99

$

Usually ships in 3-6 days

0

5

Honda 17946-ZZ4-000

SEE PART DETAILS - SUP; CAM, THROTTLE
(Superseded to 17946-ZZ4-010)

Note: Use up to Frame SN 1007400.

$69.99

$

Usually ships in 3-6 days

0

5

Honda 17946-ZZ4-010

SEE PART DETAILS - PRI; CAM, THROTTLE

$69.99

$

Usually ships in 3-6 days

0

6

Honda 23160-ZZ5-000ZA

CASE, PRIMARY GEAR *NH8* (DARK GRAY)
(Superseded to 23160-ZZ5-010ZA)

$404.99

$

Usually ships in 3-6 days

0

7

Honda 23173-ZW5-000

RUBBER, MOUNT CASE SEAL

$5.99

$

Usually ships in 3-6 days

0

8

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

9

Honda 90102-ZW5-000

BOLT, FLANGE (6X30)
(Superseded to 90002-ZZ5-M00)

$

$

Not available

10

Honda 90602-ZV3-030

SEE PART DETAILS - PRI; CLAMP, TUBE (D18.8)

$4.49

$

Usually ships in 3-6 days

0

11

Honda 90604-ZY3-020

SEE PART DETAILS - PRI; CLAMP, TUBE (D21)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 91024-ZV5-003

BEARING, RADIAL BALL (6205)

$20.99

$

Usually ships in 3-6 days

0

13

Honda 91204-ZV5-005

OIL SEAL (25X40X7)

$15.99

$

Usually ships in 3-6 days

0

14

Honda 91221-ZV5-005

SEAL, WATER (17X26X7)

$9.49

$

Usually ships in 3-6 days

0

15

Honda 91552-ZZ5-010

SEE PART DETAILS - PRI; COLLAR, DISTANCE (6X11X20.6)

$10.99

$

Usually ships in 3-6 days

0
