BF40 D LHA (BBDJ) - Honda Marine Engine, Made in Japan (SN: BBDJ-1000001 - BBDJ-9999999) OIL PUMP Parts Diagram

Marine Engine, Made in Japan

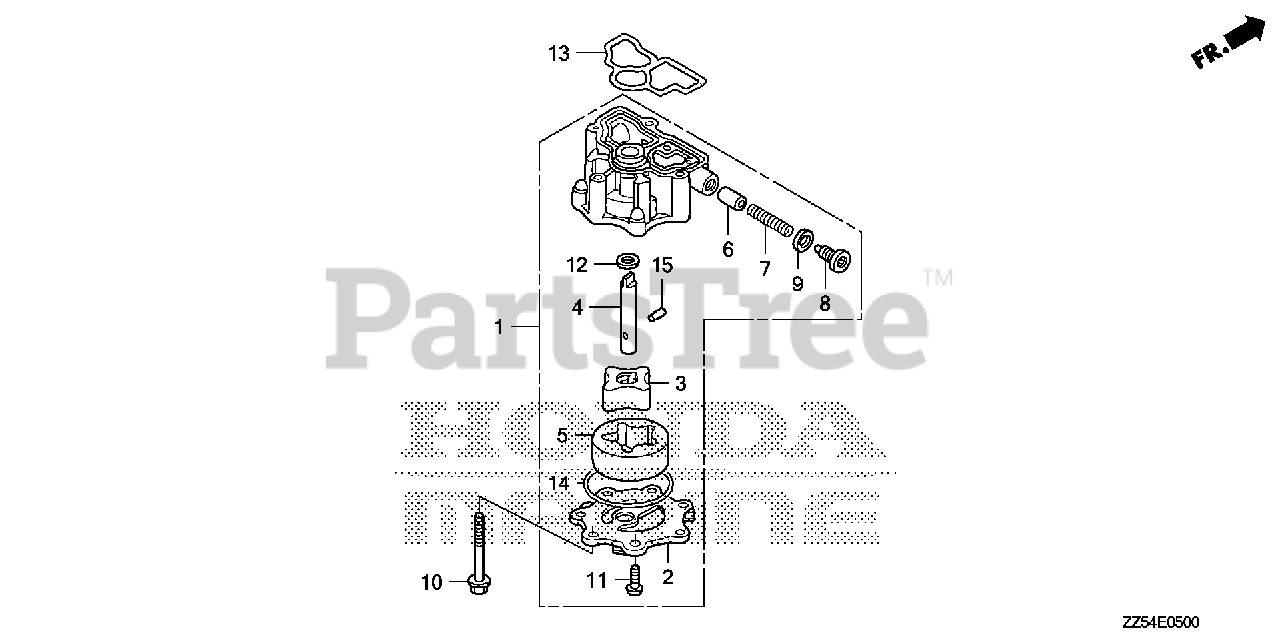

OIL PUMP Parts Diagram

  • Title

1

Honda 15100-ZV5-000

PUMP ASSY., OIL

$336.99

$

Usually ships in 3-6 days

0

2

Honda 15116-ZV5-000

COVER, OIL PUMP

$39.99

$

Usually ships in 3-6 days

0

3

Honda 15122-ME5-000

ROTOR (INNER)

$19.99

$

Usually ships in 3-6 days

0

4

Honda 15132-ZV5-000

SHAFT, OIL PUMP

$23.99

$

Usually ships in 3-6 days

0

5

Honda 15162-393-000

ROTOR A (OUTER)

$30.99

$

Usually ships in 3-6 days

0

6

Honda 15231-413-020

VALVE, RELIEF (Honda Code 0690453).

$30.99

$

Usually ships in 3-6 days

0

7

Honda 15232-KT8-000

SPRING, RELIEF VALVE

$5.99

$

Usually ships in 3-6 days

0

8

Honda 15236-ZV5-010

SEE PART DETAILS - PRI; BOLT, SEALING (14MM)

$7.49

$

Usually ships in 3-6 days

0

9

Honda 15302-PE0-300

WASHER, SEALING (14MM) (Honda Code 1600014).

$9.49

$

Usually ships in 3-6 days

0

10

Honda 90147-ZW4-000

BOLT, FLANGE (6X55)
(Superseded to 90047-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90184-ZW4-000

SCREW, PAN (6X16)
(Superseded to 90084-ZZ5-M00)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 90456-MC7-000

WASHER, THRUST (12MM)

$3.99

$

Usually ships in 3-6 days

0

13

Honda 91301-ZV5-000

SEE PART DETAILS - SUP; O-RING, PUMP COVER
(Superseded to 91301-ZV5-010)

Note: Use up to Engine SN 1003593.

$7.49

$

Usually ships in 3-6 days

0

13

Honda 91301-ZV5-010

SEE PART DETAILS - PRI; O-RING, PUMP COVER

$7.49

$

Usually ships in 3-6 days

0

14

Honda 91302-KF0-003

O-RING (54X2.4) (ARAI)

$5.49

$

In Stock, Qty 8

0

15

Honda 96220-50178

ROLLER (5X17.8)

$1.49

$

In Stock, only 1 left!

0
