BF40 D LHA (BBDJ) - Honda Marine Engine, Made in Japan (SN: BBDJ-1000001 - BBDJ-9999999) CYLINDER HEAD Parts Diagram

Marine Engine, Made in Japan

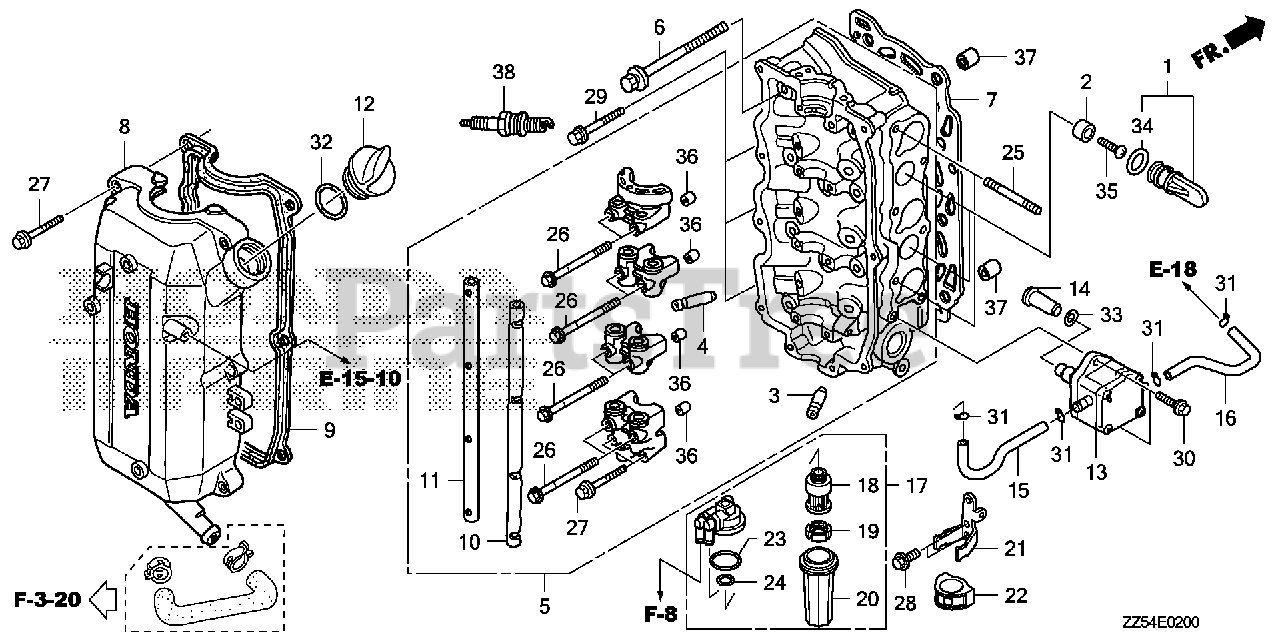

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12150-ZZ5-000

SEE PART DETAILS - SUP; CAP ASSY., ANODE METAL
(Superseded to 12150-ZZ5-020)

Note: Use up to Engine SN 1005616.

$6.49

$

Usually ships in 3-6 days

0

1

Honda 12150-ZZ5-020

SEE PART DETAILS - PRI; CAP ASSY., ANODE METAL

$6.49

$

Usually ships in 3-6 days

0

2

Honda 06120-ZZ5-000

METAL KIT, ANODE

$12.99

$

In Stock, only 2 left!

0

2

Honda 12155-ZV4-A00

SEE PART DETAILS - PRI; METAL, ANODE
(Superseded to 12155-ZV4-A01)

Note: Use up to Engine SN 1015285.

$15.99

$

Usually ships in 3-6 days

0

2

Honda 12155-ZZ5-000

METAL, ANODE

Note: Use from Engine SN 1015286.

$11.99

$

Usually ships in 3-6 days

0

3

Honda 12204-ZZ5-305

GUIDE, VALVE (OVER SIZE)

$13.99

$

Usually ships in 3-6 days

0

4

Honda 12205-ZV5-325

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE)

$17.99

$

Usually ships in 3-6 days

0

5

Honda 12206-ZZ5-000ZA

CYLINDER HEAD ASSY. *NH8* (DARK GRAY)
(Superseded to 12206-ZZ5-M01ZA)

$1045.99

$

Usually ships in 3-6 days

0

6

Honda 12228-ZV5-004

BOLT-WASHER (10X85)

$11.99

$

Usually ships in 3-6 days

0

7

Honda 12251-ZW4-H01

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$49.99

$

Usually ships in 3-6 days

0

8

Honda 12310-ZZ5-M00

COVER, CYLINDER HEAD
(Superseded to 12310-ZZ5-M01)

$175.99

$

Usually ships in 3-6 days

0

9

Honda 12391-ZV5-010

SEE PART DETAILS - PRI; GASKET, HEAD COVER

$27.99

$

Usually ships in 3-6 days

0

10

Honda 14631-ZV5-000

SHAFT, IN. ROCKER ARM

$60.99

$

Usually ships in 3-6 days

0

11

Honda 14632-ZV5-000

SHAFT, EX. ROCKER ARM

$60.99

$

Usually ships in 3-6 days

0

12

Honda 15611-921-000

SEE PART DETAILS - PRI; CAP, OIL (Honda Code 0282806).

$14.99

$

Usually ships in 3-6 days

0

13

Honda 16700-ZZ5-003

PUMP ASSY., FUEL (MSDS)

$173.99

$

Usually ships in 3-6 days

0

14

Honda 16717-ZZ5-000

LIFTER, FUEL PUMP

$13.99

$

Usually ships in 3-6 days

0

15

Honda 16861-ZZ5-A00

TUBE B, FUEL (FKM)

Note: Use from Engine SN 1003513.

$15.99

$

Usually ships in 3-6 days

0

15

Honda 16861-ZZ5-000

TUBE B, FUEL

Note: Use up to Engine SN 1003512.

$

$

Not available

16

Honda 16871-ZZ5-A00

TUBE C, FUEL (FKM)

Note: Use from Engine SN 1003513.

$15.99

$

Usually ships in 3-6 days

0

16

Honda 16871-ZZ5-000

TUBE C, FUEL

Note: Use up to Engine SN 1003512.

$8.49

$

Usually ships in 3-6 days

0

17

Honda 16900-ZZ5-003

FILTER ASSY., FUEL

$87.99

$

Usually ships in 3-6 days

0

18

Honda 16901-ZZ5-003

FILTER

$18.99

$

In Stock, only 1 left!

0

19

Honda 16906-ZZ5-003

FLOAT

$5.49

$

Usually ships in 3-6 days

0

20

Honda 16912-ZZ5-003

CUP

$12.99

$

Usually ships in 3-6 days

0

21

Honda 16914-ZZ5-000

STAY, FUEL STRAINER

$

$

Not available

22

Honda 16915-ZZ5-000

SUSPENSION, STRAINER

$9.49

$

Usually ships in 3-6 days

0

23

Honda 16918-ZZ5-003

O-RING

$3.49

$

In Stock, only 4 left!

0

24

Honda 16919-ZZ5-003

O-RING

$4.49

$

Usually ships in 3-6 days

0

25

Honda 90006-ZV5-010

BOLT, STUD (6X28)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 90018-ZV5-000

BOLT, FLANGE (6X70)

$3.99

$

Usually ships in 3-6 days

0

27

Honda 90019-ZW9-000

BOLT, FLANGE (6X35)
(Superseded to 90019-ZZ5-M01)

$3.49

$

Usually ships in 3-6 days

0

28

Honda 90021-ZY3-000

BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 90155-ZW4-000

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)
(Superseded to 90055-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 90168-ZW4-000

BOLT, FLANGE (6X20) (SH)
(Superseded to 90068-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 90604-ZV0-000

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

$1.99

$

Usually ships in 3-6 days

0

32

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

$5.49

$

In Stock, Qty 10

0

33

Honda 91351-MG7-003

SEE PART DETAILS - PRI; O-RING (20.8X2.4)

$3.99

$

In Stock, only 2 left!

0

34

Honda 91310-PH7-000

SEE PART DETAILS - PRI; O-RING (19.8X2.4)

Note: Use up to Engine SN 1005616.

$4.99

$

Usually ships in 3-6 days

0

34

Honda 91310-ZZ5-003

O-RING (19.8X2.4)

Note: Use from Engine SN 1005617.

$3.49

$

Usually ships in 3-6 days

0

35

Honda 93500-05020-4J

SCREW, PAN (5X20)

$1.49

$

Usually ships in 3-6 days

0

36

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

37

Honda 94301-12160

PIN A, DOWEL (12X16)

$3.49

$

Usually ships in 3-6 days

0

38

Honda 98069-57756

SPARK PLUG (X22ESR-UB)

$8.49

$

In Stock, only 3 left!

0

38

Honda 98069-5777P

SPARK PLUG (DR7EB)

$6.49

$

Usually ships in 3-6 days

0
