BF40 D LHA (BBDJ) - Honda Marine Engine, Made in Japan (SN: BBDJ-1000001 - BBDJ-9999999) CYLINDER BLOCK Parts Diagram

Marine Engine, Made in Japan

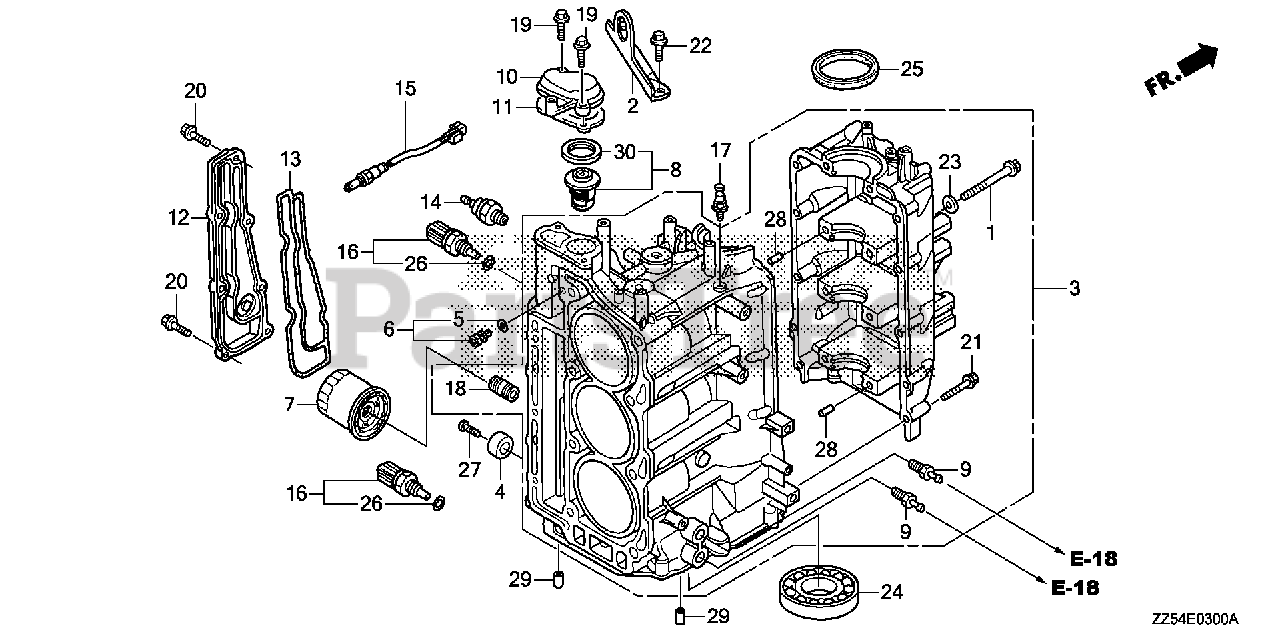

CYLINDER BLOCK Parts Diagram

  • Title

1

Honda 11115-ZV5-014

BOLT, FLANGE (8X94)
(Superseded to 11115-ZZ5-M02)

$3.99

$

Usually ships in 3-6 days

0

2

Honda 11911-ZV5-010

HANGER, ENGINE

$9.49

$

Usually ships in 3-6 days

0

3

Honda 12000-ZZ5-415ZA

BLOCK ASSY., CYLINDER *NH8* (DARK GRAY)

$1846.99

$

Usually ships in 3-6 days

0

4

Honda 12155-ZV5-000

METAL, ANODE

$12.99

$

Usually ships in 3-6 days

0

5

Honda 15142-PE0-000

SEE PART DETAILS - PRI; O-RING (4.8X1.9)

$3.99

$

Usually ships in 3-6 days

0

6

Honda 15150-ZV5-000

ORIFICE ASSY., OIL PASSAGE

$10.99

$

Usually ships in 3-6 days

0

7

Honda 15400-PFB-014

SEE PART DETAILS - PRI; FILTER, OIL (TOYO ROKI)
(Superseded to 15400-ZZ3-003)

$22.99

$

In Stock, only 2 left!

0

7

Honda 15400-ZZ3-003

FILTER, OIL (DENSO)

$22.99

$

In Stock, only 2 left!

0

8

Honda 19300-ZW9-003

THERMOSTAT ASSY.

$56.99

$

Usually ships in 3-6 days

0

9

Honda 19312-ZW4-H00

JOINT, WATER TUBE

$12.99

$

Usually ships in 3-6 days

0

10

Honda 19315-ZV5-010

SEE PART DETAILS - PRI; COVER, THERMOSTAT

$33.99

$

Usually ships in 3-6 days

0

11

Honda 19351-ZV5-000

GASKET, THERMOSTAT COVER

$3.99

$

Usually ships in 3-6 days

0

12

Honda 19361-ZV5-000

COVER, WATER JACKET

$61.99

$

Usually ships in 3-6 days

0

13

Honda 19371-ZV5-000

GASKET, WATER JACKET COVER

$16.99

$

Usually ships in 3-6 days

0

14

Honda 35490-ZW5-003

SWITCH ASSY., OIL PRESSURE

$39.99

$

Usually ships in 3-6 days

0

15

Honda 35655-ZY3-C01

SEE PART DETAILS - PRI; SENSOR, OXYGEN

$421.99

$

Usually ships in 3-6 days

0

15

Honda 35655-ZZ5-004

SEE PART DETAILS - SUP; SENSOR, OXYGEN
(Superseded to 35655-ZY3-C01)

Note: Use up to Engine SN 1007924.

$421.99

$

Usually ships in 3-6 days

0

16

Honda 35673-ZW5-003

SENSOR ASSY., WATER TEMPERATURE

$25.99

$

Usually ships in 3-6 days

0

17

Honda 90012-ZV5-013

SEE PART DETAILS - PRI; BOLT, TIMING BELT ADJUSTING SPRING
(Superseded to 90012-ZZ5-M02)

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90018-PN3-000

HOLDER, OIL FILTER (Honda Code 3509528).

$9.99

$

In Stock, only 1 left!

0

19

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90030-ZY3-000

BOLT, FLANGE (6X22)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 90145-ZW4-000

BOLT, FLANGE (6X40)
(Superseded to 90045-ZZ5-M01)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 90150-ZW4-000

BOLT, FLANGE (8X18)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90405-ZV5-010

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 91003-ZV5-003

BEARING, RADIAL BALL (6005)

$18.99

$

Usually ships in 3-6 days

0

25

Honda 91202-ZV5-005

OIL SEAL (56X70X8)

$15.99

$

Usually ships in 3-6 days

0

26

Honda 91307-PK2-005

O-RING (9.5X1.5) (HONDA KIKAKI)

$3.49

$

Usually ships in 3-6 days

0

27

Honda 93500-06018-4J

SCREW, PAN (6X18)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 94301-10120

SEE PART DETAILS - PRI; PIN, DOWEL (10X12)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 94303-06100

PIN, DOWEL (6X10)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 19303-ZW9-003

RUBBER, RING

$7.49

$

Usually ships in 3-6 days

0
