BF40 D LHA (BBDJ) - Honda Marine Engine, Made in Japan (SN: BBDJ-1000001 - BBDJ-9999999) CRANKSHAFT@PISTON Parts Diagram

Marine Engine, Made in Japan

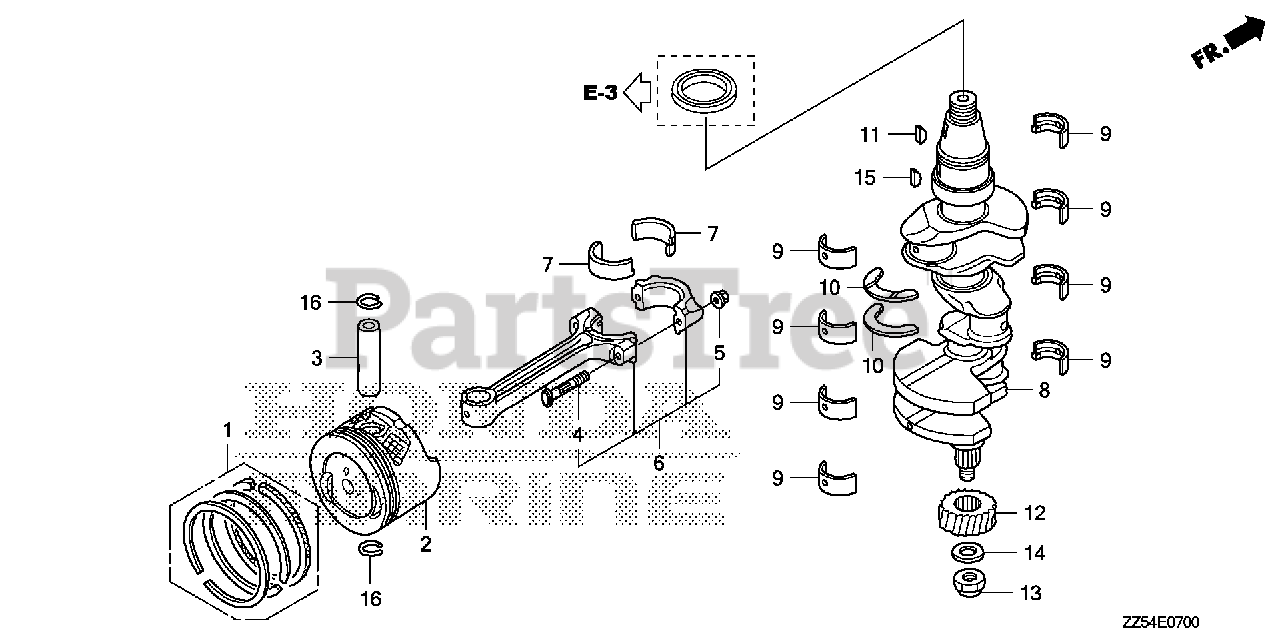

CRANKSHAFT@PISTON Parts Diagram

  • Title

1

Honda 13011-ZV5-010

SEE PART DETAILS - PRI; RING SET, PISTON

$44.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZV5-010

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

Note: (Optional).

$

$

Not available

2

Honda 13101-ZV5-010

PISTON (STD)

$77.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZV5-010

SEE PART DETAILS - PRI; PISTON (OS 0.25)

Note: (Optional).

$

$

Not available

3

Honda 13111-PWA-000

PIN, PISTON

$29.99

$

Usually ships in 3-6 days

0

4

Honda 13204-PE1-003

BOLT, CONNECTING ROD

$9.99

$

Usually ships in 3-6 days

0

5

Honda 13205-634-010

SEE PART DETAILS - PRI; NUT, CONNECTING ROD (Honda Code 0549493).

$8.49

$

Usually ships in 3-6 days

0

6

Honda 13210-ZZ5-000

ROD, CONNECTING

$146.99

$

Usually ships in 3-6 days

0

7

Honda 13211-ZV5-003

BEARING A, CONNECTING ROD (BLUE) (DAIDO)

$27.99

$

Usually ships in 3-6 days

0

7

Honda 13212-ZV5-003

BEARING B, CONNECTING ROD (BLACK) (DAIDO)

$27.99

$

Usually ships in 3-6 days

0

7

Honda 13213-ZV5-003

BEARING C, CONNECTING ROD (BROWN) (DAIDO)

$27.99

$

Usually ships in 3-6 days

0

7

Honda 13214-ZV5-003

BEARING D, CONNECTING ROD (GREEN) (DAIDO)

$27.99

$

Usually ships in 3-6 days

0

7

Honda 13215-ZV5-003

BEARING E, CONNECTING ROD (YELLOW) (DAIDO)

$27.99

$

Usually ships in 3-6 days

0

7

Honda 13216-ZV5-003

BEARING F, CONNECTING ROD (PINK) (DAIDO)

$27.99

$

Usually ships in 3-6 days

0

7

Honda 13217-ZV5-003

BEARING G, CONNECTING ROD (RED) (DAIDO)

$27.99

$

Usually ships in 3-6 days

0

8

Honda 13311-ZZ5-000

CRANKSHAFT

$847.99

$

Usually ships in 3-6 days

0

9

Honda 13322-ZV5-003

BEARING A, MAIN (BLUE) (DAIDO)

$19.99

$

Usually ships in 3-6 days

0

9

Honda 13323-ZV5-003

BEARING B, MAIN (BLACK) (DAIDO)

$19.99

$

Usually ships in 3-6 days

0

9

Honda 13324-ZV5-003

BEARING C, MAIN (BROWN) (DAIDO)

$19.99

$

Usually ships in 3-6 days

0

9

Honda 13325-ZV5-003

BEARING D, MAIN (GREEN) (DAIDO)

$19.99

$

Usually ships in 3-6 days

0

9

Honda 13326-ZV5-003

BEARING E, MAIN (YELLOW) (DAIDO)

$19.99

$

Usually ships in 3-6 days

0

9

Honda 13327-ZV5-003

BEARING F, MAIN (PINK) (DAIDO)

$19.99

$

Usually ships in 3-6 days

0

9

Honda 13328-ZV5-003

BEARING G, MAIN (RED) (DAIDO)

$19.99

$

Usually ships in 3-6 days

0

10

Honda 13331-ZZ5-003

WASHER, THRUST

$13.99

$

Usually ships in 3-6 days

0

11

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 0348433).

$5.49

$

In Stock, only 4 left!

0

12

Honda 23411-ZV5-000

GEAR A, PRIMARY DRIVE (26T) (WHITE)

$108.99

$

Usually ships in 3-6 days

0

12

Honda 23412-ZV5-000

GEAR B, PRIMARY DRIVE (26T) (BLUE)

$108.99

$

Usually ships in 3-6 days

0

12

Honda 23413-ZV5-000

GEAR C, PRIMARY DRIVE (26T) (YELLOW)

$108.99

$

Usually ships in 3-6 days

0

13

Honda 90202-PB6-010

NUT, FLANGE (22MM)

$28.99

$

Usually ships in 3-6 days

0

14

Honda 90473-ZV5-000

WASHER (22MM)

$8.49

$

Usually ships in 3-6 days

0

15

Honda 94401-25140

KEY, WOODRUFF (25X14) (Honda Code 0145425).

$2.49

$

Usually ships in 3-6 days

0

16

Honda 94601-18000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (18MM) (Honda Code 0317305).

$1.49

$

Usually ships in 3-6 days

0
