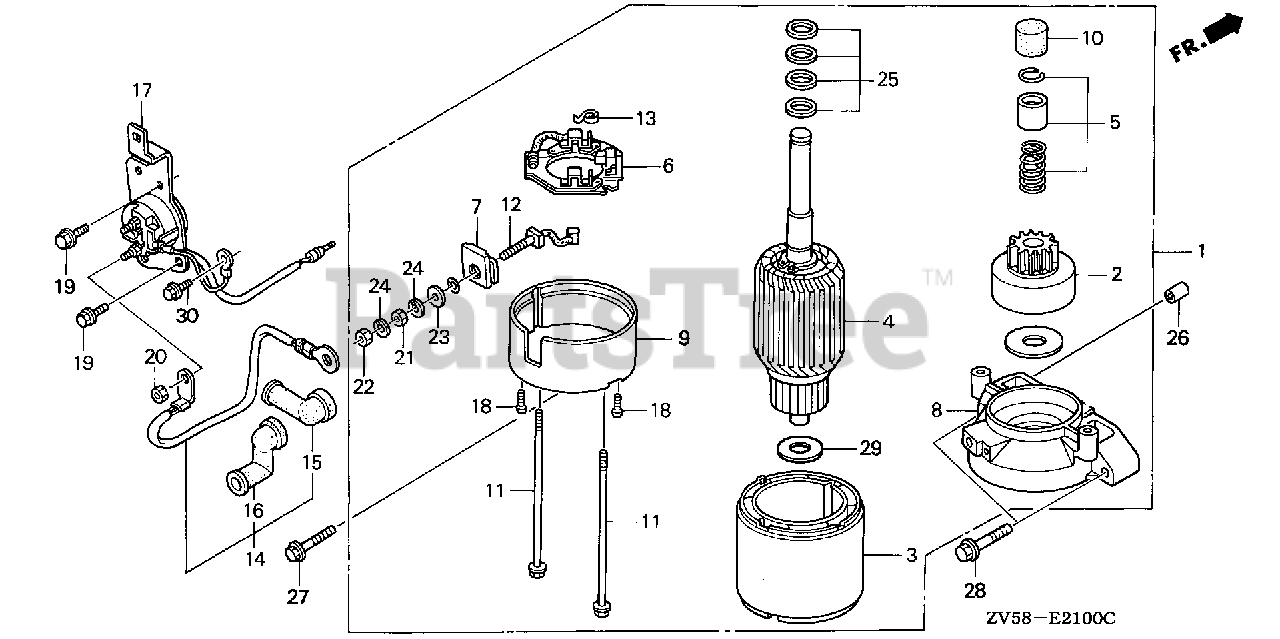

BF40 AY LRA (BAYS) - Honda Marine Engine, Made in Japan (SN: BAYS-3200001 - BAYS-3209999) STARTER MOTOR Parts Diagram

Marine Engine, Made in Japan

STARTER MOTOR Parts Diagram

  • Title

1

Honda 31200-ZV5-003

SEE PART DETAILS - SUP; STARTER MOTOR ASSY.
(Superseded to 31200-ZV5-013)

$

$

Not available

1

Honda 31200-ZV5-013

SEE PART DETAILS - PRI; STARTER MOTOR ASSY.

$

$

Not available

2

Honda 31207-ZV5-003

CLUTCH, OVERRUNNING (NOT AVAILABLE)

$

$

Not available

3

Honda 31216-ZV5-003

YOKE

$274.99

$

Usually ships in 3-6 days

0

4

Honda 31217-ZV5-003

ARMATURE

$317.99

$

Usually ships in 3-6 days

0

5

Honda 31225-ZV5-003

STOPPER SET, PINION

$29.99

$

Usually ships in 3-6 days

0

6

Honda 31231-ZV5-003

HOLDER, BRUSH

$

$

Not available

7

Honda 31233-ZV5-003

BUSH (M)

$15.99

$

Usually ships in 3-6 days

0

8

Honda 31235-ZV5-003

BRACKET, FR.

$

$

Not available

9

Honda 31236-ZV5-003

BRACKET, RR.

$199.99

$

Usually ships in 3-6 days

0

10

Honda 31239-ZV5-003

CAP, STOPPER

$14.99

$

Usually ships in 3-6 days

0

11

Honda 31261-ZV5-003

BOLT, THROUGH

$9.99

$

Usually ships in 3-6 days

0

12

Honda 31295-ZV5-003

BRUSH

$

$

Not available

13

Honda 31298-ZV5-003

SPRING, BRUSH

$

$

Not available

14

Honda 32402-ZV5-000

WIRE, MAGNETIC SWITCH (120MM)

$40.99

$

Usually ships in 3-6 days

0

15

Honda 32411-402-000

COVER, STARTER MOTOR TERMINAL

$4.99

$

Usually ships in 3-6 days

0

16

Honda 32412-ZV5-003

COVER, MAGNETIC SWITCH

$8.99

$

Usually ships in 3-6 days

0

17

Honda 35850-ZV5-003

SWITCH ASSY., STARTER MAGNETIC

$136.99

$

Usually ships in 3-6 days

0

18

Honda 90015-ZV5-003

SCREW (4MM)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90122-ZV1-010

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90203-ZV5-000

NUT, HEX. (6MM)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90204-ZV5-003

NUT (1)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 90205-ZV5-003

NUT (2)

$6.99

$

Usually ships in 3-6 days

0

23

Honda 90407-ZV5-003

WASHER (1)

$3.99

$

Usually ships in 3-6 days

0

24

Honda 90408-ZV5-003

WASHER (2)

$4.49

$

Usually ships in 3-6 days

0

25

Honda 90409-ZV5-003

WASHER SET, THRUST

$

$

Not available

26

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

27

Honda 95701-06028-02

BOLT, FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 95701-08045-02

BOLT, FLANGE (8X45) (NOT AVAILABLE)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 90122-ZV1-010

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0
