BF40 AX LRA (BAYL) - Honda Marine Engine, Made in Japan (SN: BAYL-3000001 - BAYL-9999999) EXTENSION CASE Parts Diagram

Marine Engine, Made in Japan

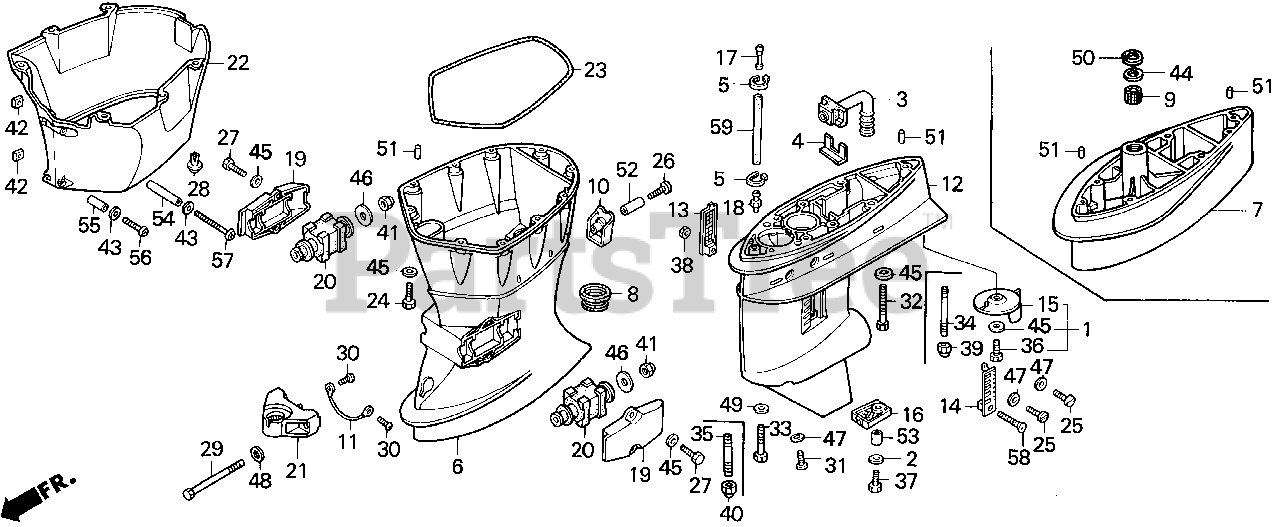

EXTENSION CASE Parts Diagram

  • Title

1

Honda 06412-ZV5-000

TAB KIT, TRIM

$18.99

$

Usually ships in 3-6 days

0

2

Honda 17936-921-000

WASHER, PIVOT

$1.99

$

Usually ships in 3-6 days

0

3

Honda 19280-ZV5-000

TUBE, WATER (LOWER)

$31.99

$

Usually ships in 3-6 days

0

4

Honda 19286-ZV5-000

PLATE, RUBBER SETTING

$6.49

$

Usually ships in 3-6 days

0

5

Honda 32161-KM3-003

BAND, WIRE

$3.99

$

Usually ships in 3-6 days

0

6

Honda 40201-ZV5-701ZA

CASE, EXTENSION *NH282MU* (L) (OYSTER SILVER METALLIC-U)

$780.99

$

Usually ships in 3-6 days

0

8

Honda 40209-ZV5-000

RUBBER, DRAIN PLUG

$10.99

$

Usually ships in 3-6 days

0

10

Honda 40212-ZV5-000ZA

SEE PART DETAILS - SUP; COVER, DRAIN PLUG *NH282MU* (OYSTER SILVER METALLIC-U)
(Superseded to 40212-ZV5-010ZA)

$16.99

$

Usually ships in 3-6 days

0

11

Honda 40219-ZV5-003

SEE PART DETAILS - SUP; WIRE, LEAD
(Superseded to 40219-ZY3-023)

$12.99

$

Usually ships in 3-6 days

0

12

Honda 06411-ZV5-505ZA

SEE PART DETAILS - SUP; CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Currently unavailable

12

Honda 06411-ZV5-515ZA

SEE PART DETAILS - SUP; CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Currently unavailable

13

Honda 41104-ZV5-000

SCREEN, R. WATER

$9.99

$

Usually ships in 3-6 days

0

14

Honda 41105-ZV5-000

SCREEN, L. WATER

$9.99

$

Usually ships in 3-6 days

0

15

Honda 41107-ZV5-000

TAB, TRIM

$25.99

$

Usually ships in 3-6 days

0

16

Honda 41108-ZV5-000

SEE PART DETAILS - SUP; SCREEN, WATER (LOWER)
(Superseded to 41108-ZV5-010)

$7.99

$

Usually ships in 3-6 days

0

17

Honda 41171-ZV5-000

END, NIPPLE

$8.49

$

Usually ships in 3-6 days

0

18

Honda 41172-ZV5-000

NIPPLE, SENSOR

$10.99

$

Usually ships in 3-6 days

0

19

Honda 50111-ZV5-000ZA

HOUSING, R. MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$85.99

$

Usually ships in 3-6 days

0

20

Honda 50155-ZV5-000

RUBBER, SETTING (LOWER)

$93.99

$

Usually ships in 3-6 days

0

21

Honda 50161-ZV5-010ZA

HOUSING, CENTER MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$175.99

$

Usually ships in 3-6 days

0

22

Honda 63701-ZV5-000ZA

SEE PART DETAILS - SUP; COVER (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Currently unavailable

23

Honda 63702-ZV5-000

RUBBER, COVER (LOWER)

$10.99

$

Usually ships in 3-6 days

0

24

Honda 90009-ZV5-000

BOLT, HEX. (8X35)

$5.49

$

Usually ships in 3-6 days

0

25

Honda 90105-ZV4-650

BOLT, OIL CHECK (8X8)
(Superseded to 90105-ZVA-000)

$5.99

$

In Stock, only 2 left!

0

26

Honda 90110-ZV5-000

SCREW, SPECIAL (6X35)

$4.49

$

In Stock, only 1 left!

0

27

Honda 90115-ZV5-000

BOLT, HEX. (8X25)

$4.99

$

Usually ships in 3-6 days

0

28

Honda 90117-ZV5-003

SCREW, RIVET (8X15)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 90118-ZV5-000

BOLT, HEX. (12X162)

$40.99

$

Usually ships in 3-6 days

0

30

Honda 90119-ZV5-000

SCREW, PAN (6X8)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 90120-ZV5-003

BOLT, DRAIN PLUG (8MM)

$7.99

$

Usually ships in 3-6 days

0

32

Honda 90122-ZV5-000

BOLT, HEX. (8X65)

$8.49

$

Usually ships in 3-6 days

0

33

Honda 90123-ZV5-010

SEE PART DETAILS - PRI; BOLT, HEX. (10X40)

$8.49

$

Usually ships in 3-6 days

0

36

Honda 90126-ZV5-000

BOLT, HEX. (8X20)

$5.49

$

Usually ships in 3-6 days

0

37

Honda 90127-ZV4-000

BOLT, HEX. (6X16)

$2.99

$

Usually ships in 3-6 days

0

38

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$6.99

$

Usually ships in 3-6 days

0

41

Honda 90308-ZV5-003

NUT, SELF-LOCK (12MM)

$12.99

$

Usually ships in 3-6 days

0

42

Honda 90311-ZV5-000

NUT, PLATE (5MM)

$10.99

$

Usually ships in 3-6 days

0

43

Honda 90452-GK4-600

WASHER, PLAIN (5MM)

$1.99

$

Usually ships in 3-6 days

0

45

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

$2.99

$

Usually ships in 3-6 days

0

46

Honda 90552-ZV5-000

WASHER, PLAIN (12MM)

$6.49

$

Usually ships in 3-6 days

0

47

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

In Stock, Qty 6

0

48

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$3.99

$

Usually ships in 3-6 days

0

49

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

51

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

52

Honda 91563-ZV5-000

COLLAR, DISTANCE (6X10.5X25)

$8.49

$

Usually ships in 3-6 days

0

53

Honda 91566-ZV5-000

COLLAR, WATER SCREEN (LOWER)

$6.49

$

Usually ships in 3-6 days

0

54

Honda 91568-ZV5-000

COLLAR, DISTANCE (5X7X38)

$5.49

$

Usually ships in 3-6 days

0

55

Honda 91569-ZV5-000

COLLAR, DISTANCE (5X7X23)

$6.49

$

Usually ships in 3-6 days

0

56

Honda 93500-05030-4J

SCREW, PAN (5X30)

$2.49

$

Usually ships in 3-6 days

0

57

Honda 93500-05045-4J

SCREW, PAN (5X45)

$3.49

$

Usually ships in 3-6 days

0

58

Honda 93700-05032-4J

SCREW, OVAL (5X32)

$1.99

$

Usually ships in 3-6 days

0

59

Honda 95005-50003-30M

BULK HOSE, VACUUM (5X3000) (5X200)

$31.99

$

Usually ships in 3-6 days

0
