BF40 A2 LRA (BAYS) - Honda Marine Engine, Made in Japan (SN: BAYS-3220001 - BAYS-3299999) THROTTLE ROD Parts Diagram

Marine Engine, Made in Japan

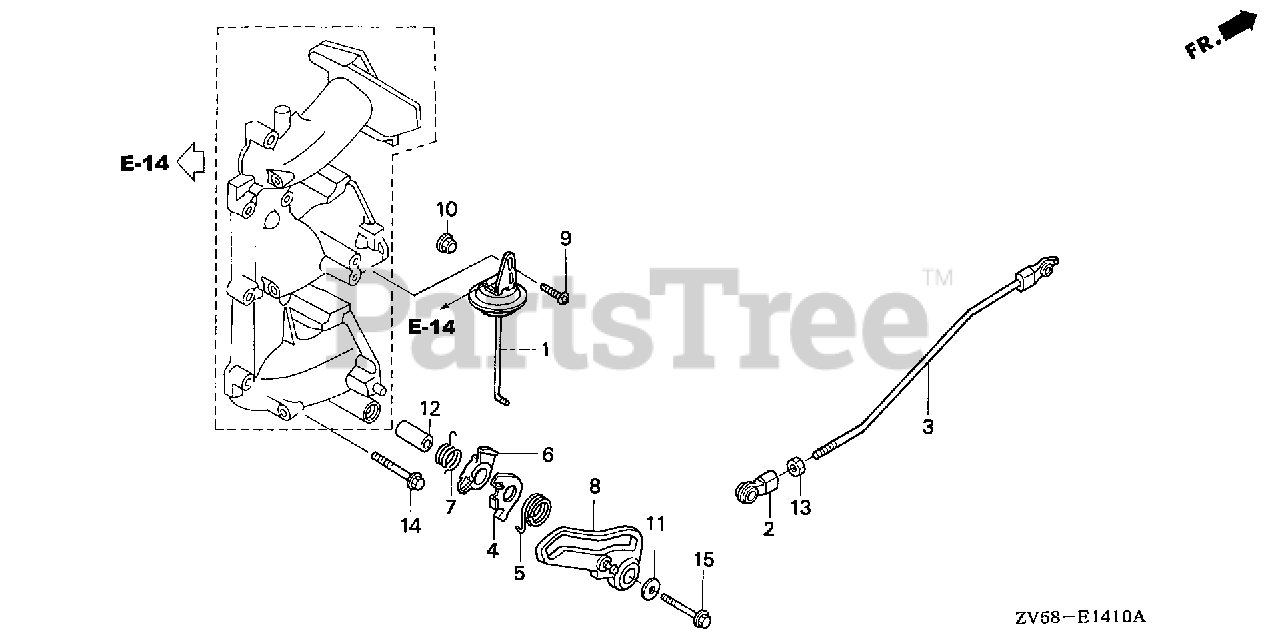

THROTTLE ROD Parts Diagram

  • Title

1

Honda 16400-ZV5-015

DIAPHRAGM ASSY.

$

$

Not available

2

Honda 17838-ZV5-000

LINKAGE, PIVOT

$10.99

$

Usually ships in 3-6 days

0

3

Honda 17840-ZV5-000

ROD, THROTTLE

$

$

Not available

4

Honda 17927-ZV5-000

PLATE, ASSIST

$9.99

$

Usually ships in 3-6 days

0

5

Honda 17928-ZV5-000

SPRING, ASSIST

$4.99

$

Usually ships in 3-6 days

0

6

Honda 17937-ZV5-010

CAM, THROTTLE OPENER

$9.49

$

Usually ships in 3-6 days

0

7

Honda 17938-ZV5-000

SPRING, OPENER CAM RETURN

$3.99

$

Usually ships in 3-6 days

0

8

Honda 17946-ZV5-000

CAM, THROTTLE

$22.99

$

Usually ships in 3-6 days

0

9

Honda 90011-ZV5-003

BOLT, TORX (6X14)

$2.49

$

Usually ships in 3-6 days

0

10

Honda 90202-ZV0-000

NUT, CAP (6MM)

$3.99

$

Usually ships in 3-6 days

0

11

Honda 90511-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

In Stock, only 1 left!

0

12

Honda 91504-ZV5-000

COLLAR (6.7X12.5X24)

$12.99

$

Usually ships in 3-6 days

0

13

Honda 94001-05490-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 95701-06032-02

BOLT, FLANGE (6X32)

Note: Use up to Engine SN 2009683.

$1.99

$

Usually ships in 3-6 days

0

14

Honda 90031-ZY3-000

BOLT, FLANGE (6X32)

Note: Use from Engine SN 2009684.

$1.49

$

Usually ships in 3-6 days

0

15

Honda 95701-06040-02

BOLT, FLANGE (6X40)

Note: Use up to Engine SN 2009683.

$2.49

$

In Stock, only 2 left!

0

15

Honda 90145-ZW4-000

BOLT, FLANGE (6X40)
(Superseded to 90045-ZZ5-M01)

Note: Use from Engine SN 2009684.

$2.49

$

Usually ships in 3-6 days

0
