BF40 A2 LHA (BAYS) - Honda Marine Engine, Made in Japan (SN: BAYS-3220001 - BAYS-3299999) CYLINDER BLOCK Parts Diagram

Marine Engine, Made in Japan

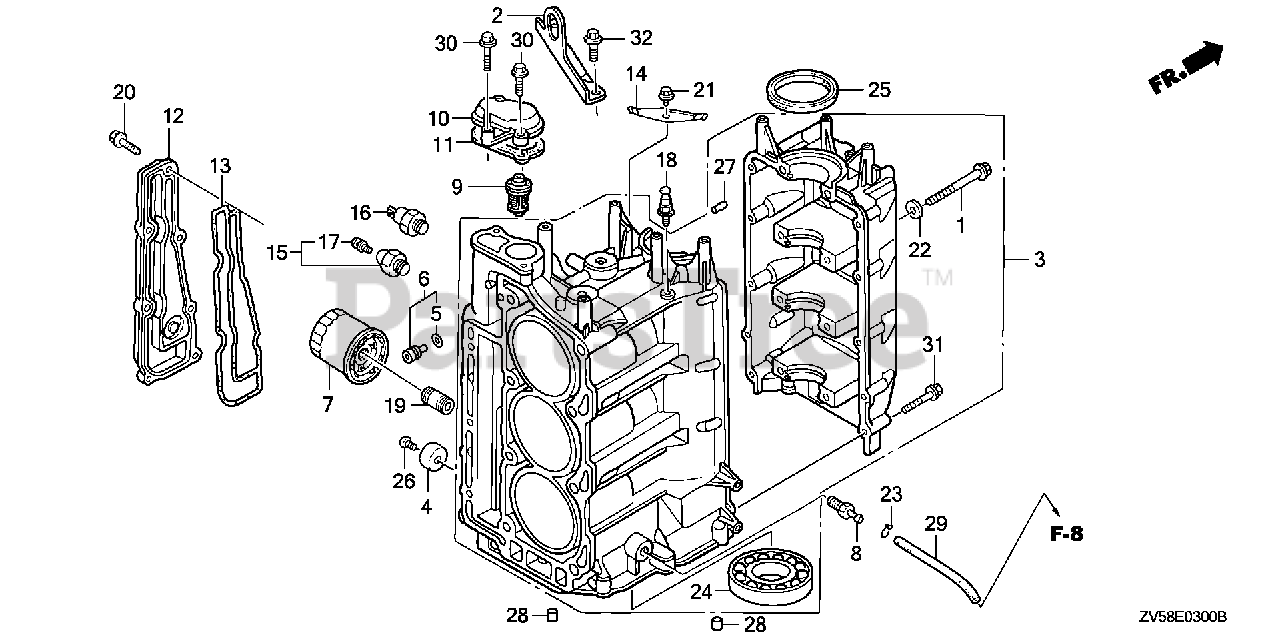

CYLINDER BLOCK Parts Diagram

  • Title

1

Honda 11115-ZV5-014

BOLT, FLANGE (8X94)
(Superseded to 11115-ZZ5-M02)

$3.99

$

Usually ships in 3-6 days

0

2

Honda 11911-ZV5-010

HANGER, ENGINE

$9.49

$

Usually ships in 3-6 days

0

3

Honda 12000-ZV5-010ZA

BLOCK ASSY., CYLINDER *NH8* (DARK GRAY) (NOT AVAILABLE)

$

$

Not available

4

Honda 12155-ZV5-000

METAL, ANODE

$12.99

$

Usually ships in 3-6 days

0

5

Honda 15142-PE0-000

O-RING (4.8X1.9)

$3.99

$

Usually ships in 3-6 days

0

6

Honda 15150-ZV5-000

ORIFICE ASSY., OIL PASSAGE

$10.99

$

Usually ships in 3-6 days

0

7

Honda 15400-PFB-007

FILTER, OIL (DENSO)
(Superseded to 15400-ZZ3-003)

$22.99

$

In Stock, only 2 left!

0

8

Honda 19271-ZV5-000

JOINT, WATER HOSE

$

$

Not available

9

Honda 19300-ZV5-043

SEE PART DETAILS - PRI; THERMOSTAT ASSY.

$39.99

$

In Stock, only 1 left!

0

10

Honda 19315-ZV5-010

SEE PART DETAILS - PRI; COVER, THERMOSTAT

$33.99

$

Usually ships in 3-6 days

0

11

Honda 19351-ZV5-000

GASKET, THERMOSTAT COVER

$3.99

$

Usually ships in 3-6 days

0

12

Honda 19361-ZV5-000

COVER, WATER JACKET

$61.99

$

Usually ships in 3-6 days

0

13

Honda 19371-ZV5-000

GASKET, WATER JACKET COVER

$16.99

$

Usually ships in 3-6 days

0

14

Honda 32116-ZV5-000

SEE PART DETAILS - SUP; HOLDER, WIRE (A)
(Superseded to 32116-ZV5-010)

$10.99

$

Usually ships in 3-6 days

0

14

Honda 32116-ZV5-010

SEE PART DETAILS - PRI; HOLDER, WIRE (A)

$10.99

$

Usually ships in 3-6 days

0

15

Honda 37240-ZG3-E01

SWITCH, OIL PRESSURE

$44.99

$

Usually ships in 3-6 days

0

16

Honda 37760-ZV5-003

SWITCH ASSY., THERMOSTAT

$

$

Not available

17

Honda 90002-ZG5-004

SCREW-WASHER (4X8)

$9.99

$

Usually ships in 3-6 days

0

18

Honda 90012-ZV5-013

BOLT, TIMING BELT ADJUSTING SPRING
(Superseded to 90012-ZZ5-M02)

$5.49

$

Usually ships in 3-6 days

0

19

Honda 90018-PN3-000

HOLDER, OIL FILTER

$9.99

$

In Stock, only 1 left!

0

20

Honda 90020-ZV5-000

BOLT, FLANGE (6X22)

Note: Use up to Engine SN 2009683.

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90012-ZW9-000

BOLT, FLANGE (6X22) (CT200)

Note: Use from Engine SN 2009684.

$

$

Not available

21

Honda 90122-ZV1-010

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 90405-ZV5-010

WASHER, PLAIN (8MM)

$2.99

$

Usually ships in 3-6 days

0

23

Honda 90602-921-000

CLIP, TUBE (B8)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 91003-ZV5-003

BEARING, RADIAL BALL (6005)

$18.99

$

Usually ships in 3-6 days

0

25

Honda 91202-ZV5-005

OIL SEAL (56X70X8)

$15.99

$

Usually ships in 3-6 days

0

26

Honda 93500-06018-4J

SCREW, PAN (6X18)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 94301-10120

PIN, DOWEL (10X12)

$3.49

$

Usually ships in 3-6 days

0

28

Honda 94301-12160

PIN A, DOWEL (12X16)

$3.49

$

Usually ships in 3-6 days

0

28

Honda 94303-06100

PIN, DOWEL (6X10)

$2.99

$

Usually ships in 3-6 days

0

29

Honda 95005-45001-30M

BULK HOSE, VACUUM (4.5X1000) (4.5X125)

$12.99

$

Usually ships in 3-6 days

0

30

Honda 95701-06020-02

BOLT, FLANGE (6X20)

Note: Use up to Engine SN 2009683.

$1.49

$

Usually ships in 3-6 days

0

30

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

Note: Use from Engine SN 2009684.

$2.49

$

Usually ships in 3-6 days

0

31

Honda 95701-06040-02

BOLT, FLANGE (6X40)

Note: Use up to Engine SN 2009683.

$2.49

$

Usually ships in 3-6 days

0

31

Honda 90145-ZW4-000

BOLT, FLANGE (6X40)
(Superseded to 90045-ZZ5-M01)

Note: Use from Engine SN 2009684.

$2.49

$

Usually ships in 3-6 days

0

32

Honda 95701-08018-02

BOLT, FLANGE (8X18)

Note: Use up to Engine SN 2009707.

$1.99

$

Usually ships in 3-6 days

0

32

Honda 90150-ZW4-000

BOLT, FLANGE (8X18)

Note: Use from Engine SN 2009708.

$1.99

$

Usually ships in 3-6 days

0
