BF40 A1 LRA (BAYS) - Honda Marine Engine, Made in Japan (SN: BAYS-3210001 - BAYS-3219999) STERN BRACKET Parts Diagram

Marine Engine, Made in Japan

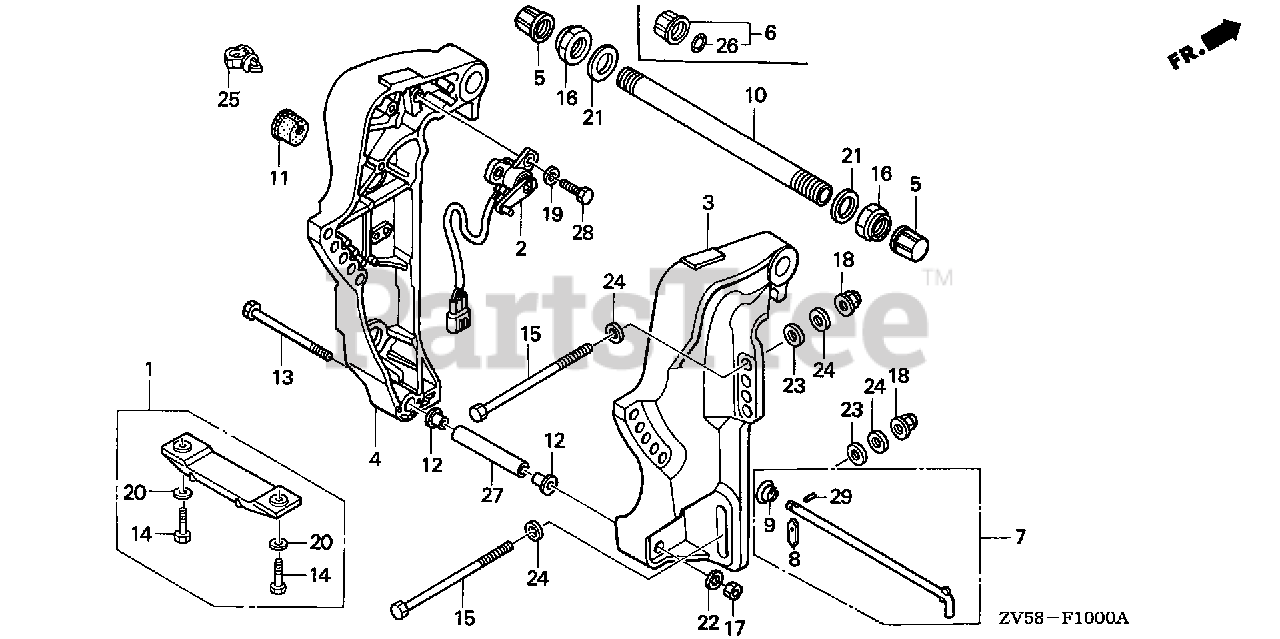

STERN BRACKET Parts Diagram

  • Title

1

Honda 06411-ZV5-000

METAL KIT, ANODE
(Superseded to 06411-ZV5-020)

Note: (Optional).

$46.99

$

Usually ships in 3-6 days

0

1

Honda 06411-ZV5-020

SEE PART DETAILS - PRI; METAL KIT, ANODE

Note: (Optional).

$46.99

$

Usually ships in 3-6 days

0

3

Honda 50301-ZV5-020ZA

BRACKET, R. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

4

Honda 50311-ZV5-010ZA

BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$439.99

$

Usually ships in 3-6 days

0

5

Honda 50331-ZV5-000

CAP, TILTING BOLT

$7.99

$

Usually ships in 3-6 days

0

6

Honda 50335-ZV5-000

CAP ASSY.

$11.99

$

Usually ships in 3-6 days

0

7

Honda 50340-ZV5-000

SEE PART DETAILS - SUP; ROD, ADJUSTING
(Superseded to 50340-ZV5-010)

$41.99

$

Usually ships in 3-6 days

0

7

Honda 50340-ZV5-010

SEE PART DETAILS - PRI; ROD, ADJUSTING

$41.99

$

Usually ships in 3-6 days

0

8

Honda 50342-ZV5-300

STOPPER, ROD

$6.99

$

Usually ships in 3-6 days

0

9

Honda 50343-921-300

SPRING, ADJUSTING ROD

$4.49

$

Usually ships in 3-6 days

0

10

Honda 50381-ZV5-000

SEE PART DETAILS - SUP; SHAFT, TILTING
(Superseded to 50381-ZZ5-000)

$101.99

$

Usually ships in 3-6 days

0

10

Honda 50381-ZZ5-000

SEE PART DETAILS - PRI; SHAFT, TILTING

$101.99

$

Usually ships in 3-6 days

0

12

Honda 56513-ZV5-000

BUSH, CYLINDER (LOWER)

$5.49

$

Usually ships in 3-6 days

0

13

Honda 90108-ZV5-000

BOLT, HEX. (10X158)

$32.99

$

Usually ships in 3-6 days

0

14

Honda 90113-ZV5-000

BOLT, HEX. (6X25)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90129-ZV5-850

BOLT, HEX. (12X100)

$31.99

$

Usually ships in 3-6 days

0

16

Honda 90304-ZV5-003

SEE PART DETAILS - SUP; NUT, SELF-LOCK (7/8-14UNF)
(Superseded to 90304-ZV5-013)

$23.99

$

Usually ships in 3-6 days

0

16

Honda 90304-ZV5-013

SEE PART DETAILS - PRI; NUT, SELF-LOCK (7/8-14UNF)

$23.99

$

Usually ships in 3-6 days

0

17

Honda 90306-ZV5-003

NUT, SELF-LOCK (10MM)

$4.99

$

In Stock, only 2 left!

0

18

Honda 90308-ZV5-003

NUT, SELF-LOCK (12MM)

$12.99

$

Usually ships in 3-6 days

0

20

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90517-ZV5-000

WASHER, WAVE (22MM)

$7.49

$

Usually ships in 3-6 days

0

22

Honda 90545-ZV5-000

WASHER, PLAIN (10MM)

$3.99

$

Usually ships in 3-6 days

0

23

Honda 90552-ZV5-000

WASHER, PLAIN (12MM)

$6.49

$

Usually ships in 3-6 days

0

24

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$3.99

$

Usually ships in 3-6 days

0

26

Honda 91352-ZV5-000

O-RING (15.54X2.62)

$2.49

$

Usually ships in 3-6 days

0

27

Honda 91556-ZV5-000

SEE PART DETAILS - SUP; COLLAR, DISTANCE (10X90)
(Superseded to 91556-ZZ5-C00)

$36.99

$

Usually ships in 3-6 days

0

27

Honda 91556-ZZ5-C00

SEE PART DETAILS - PRI; COLLAR, DISTANCE (10X90)

$36.99

$

Usually ships in 3-6 days

0

29

Honda 94305-25083

PIN, SPRING (2.5X8)

$1.99

$

Usually ships in 3-6 days

0
