BF4 AH SHNA (BACC) - Honda Outboard Engine, Made in China (SN: BACC-1000001 - BACC-9999999) SWIVEL CASE@MOUNT FRAME Parts Diagram

Outboard Engine, Made in China

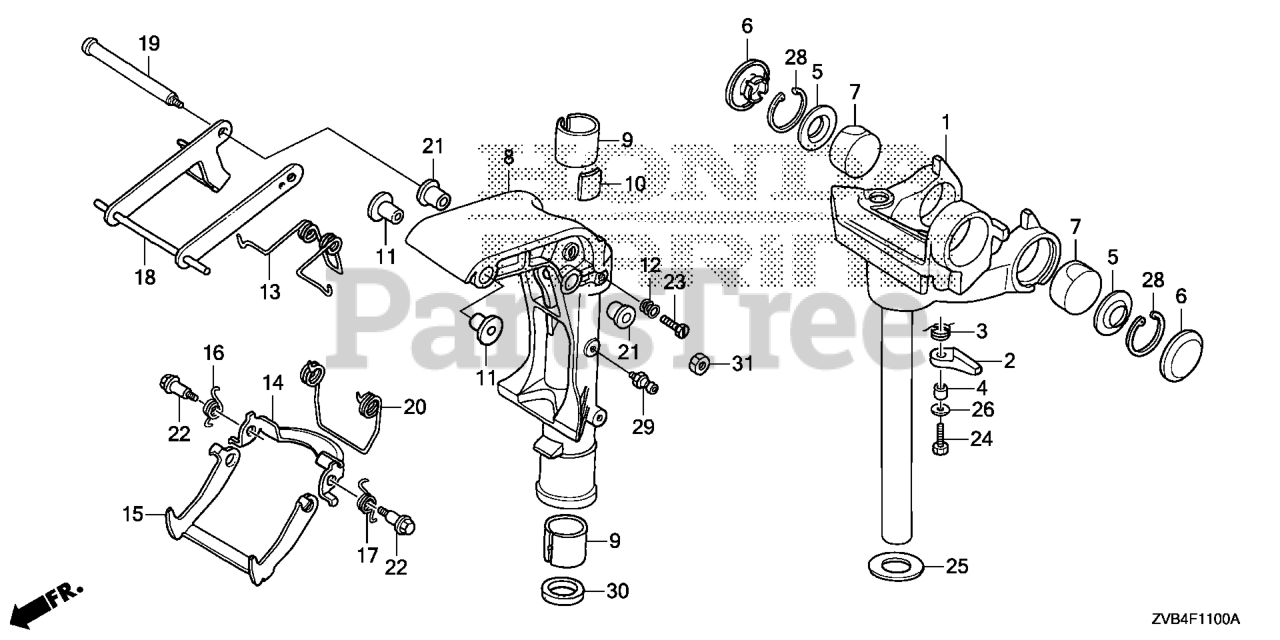

SWIVEL CASE@MOUNT FRAME Parts Diagram

  • Title
1

Honda 50100-ZV1-842ZC

FRAME, MOUNTING *NHB14M* (AQUA MARINE SILVER METALLIC)

$220.99

$

Usually ships in 3-6 days

0

2

Honda 50105-ZVD-000ZA

STOPPER, HANDLEBAR *NHB14M* (AQUA MARINE SILVER METALLIC)

$37.99

$

Usually ships in 3-6 days

0

3

Honda 50106-ZVD-000

SPRING, HANDLE

$2.99

$

Usually ships in 3-6 days

0

4

Honda 50107-ZVD-000

COLLAR, STOPPER

$2.99

$

Usually ships in 3-6 days

0

5

Honda 50112-ZVD-000

WASHER, MOUNT

$5.99

$

Usually ships in 3-6 days

0

6

Honda 50113-ZVD-000

CAP, MOUNTING

$6.99

$

Usually ships in 3-6 days

0

7

Honda 50151-ZVD-000

RUBBER, MOUNTING (UPPER)

$6.49

$

Usually ships in 3-6 days

0

8

Honda 50201-ZV1-C01ZB

CASE, SWIVEL *NHB14M* (AQUA MARINE SILVER METALLIC)

$145.99

$

Usually ships in 3-6 days

0

9

Honda 50211-ZVD-000

LINER, SWIVEL CASE

$7.49

$

Usually ships in 3-6 days

0

10

Honda 50212-ZVD-000

BLOCK, FRICTION

$6.49

$

Usually ships in 3-6 days

0

11

Honda 50214-ZV1-000

BUSH, SWIVEL CASE

$7.99

$

Usually ships in 3-6 days

0

12

Honda 50233-ZVD-000

SPRING, FRICTION ADJUSTING

$3.99

$

Usually ships in 3-6 days

0

13

Honda 50403-ZVD-000

SPRING, HOOK RETURN

$5.99

$

Usually ships in 3-6 days

0

14

Honda 50511-ZVD-000

PLATE, REVERSE LOCK

$15.99

$

Usually ships in 3-6 days

0

15

Honda 50512-ZVD-000

HOOK, REVERSE LOCK

$14.99

$

Usually ships in 3-6 days

0

16

Honda 50513-ZVD-000

SPRING, R. REVERSE LOCK

$3.99

$

Usually ships in 3-6 days

0

17

Honda 50514-ZVD-000

SPRING, L. REVERSE LOCK

$2.99

$

Usually ships in 3-6 days

0

18

$36.99

$

Usually ships in 3-6 days

0

19

Honda 50517-ZVD-000

SHAFT, TILT

$11.99

$

Usually ships in 3-6 days

0

20

Honda 50519-ZVD-000

SPRING, REVERSE LOCK

$5.99

$

Usually ships in 3-6 days

0

21

Honda 50521-ZV1-000

BUSH, TILT LEVER

$7.99

$

Usually ships in 3-6 days

0

22

Honda 90105-ZVD-000

BOLT, REVERSE LOCK

$5.49

$

Usually ships in 3-6 days

0

23

Honda 90109-ZVD-000

BOLT, SPECIAL (8X20)

$6.49

$

Usually ships in 3-6 days

0

24

Honda 90124-ZV4-000

BOLT, HEX. (6X20)

$2.99

$

In Stock, Qty 5

0

25

Honda 90505-ZVD-000

WASHER, THRUST

$3.99

$

Usually ships in 3-6 days

0

26

Honda 90506-ZVD-000

WASHER, PLAIN (6MM)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 90512-ZVD-000

WASHER, LOCK

$2.99

$

Usually ships in 3-6 days

0

28

Honda 90651-ZV1-000

CIRCLIP (INNER) (40MM)

$11.99

$

Usually ships in 3-6 days

0

29

Honda 90951-ZV7-010

SEE PART DETAILS - PRI; NIPPLE, GREASE

$2.99

$

Usually ships in 3-6 days

0

30

Honda 91256-ZV1-003

OIL SEAL (27.8X33X5) (ARAI)

$10.99

$

Usually ships in 3-6 days

0

31

Honda 94001-06490-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$2.99

$

In Stock, only 1 left!

0

31

Honda 94002-06490-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$3.49

$

Usually ships in 3-6 days

0
