BF350 A UDA (BBYJ) - Honda Marine Engine, Made in Japan (SN: BBYJ-8000001 - BBYJ-9999999) STERN BRACKET@SWIVEL CASE Parts Diagram

Marine Engine, Made in Japan

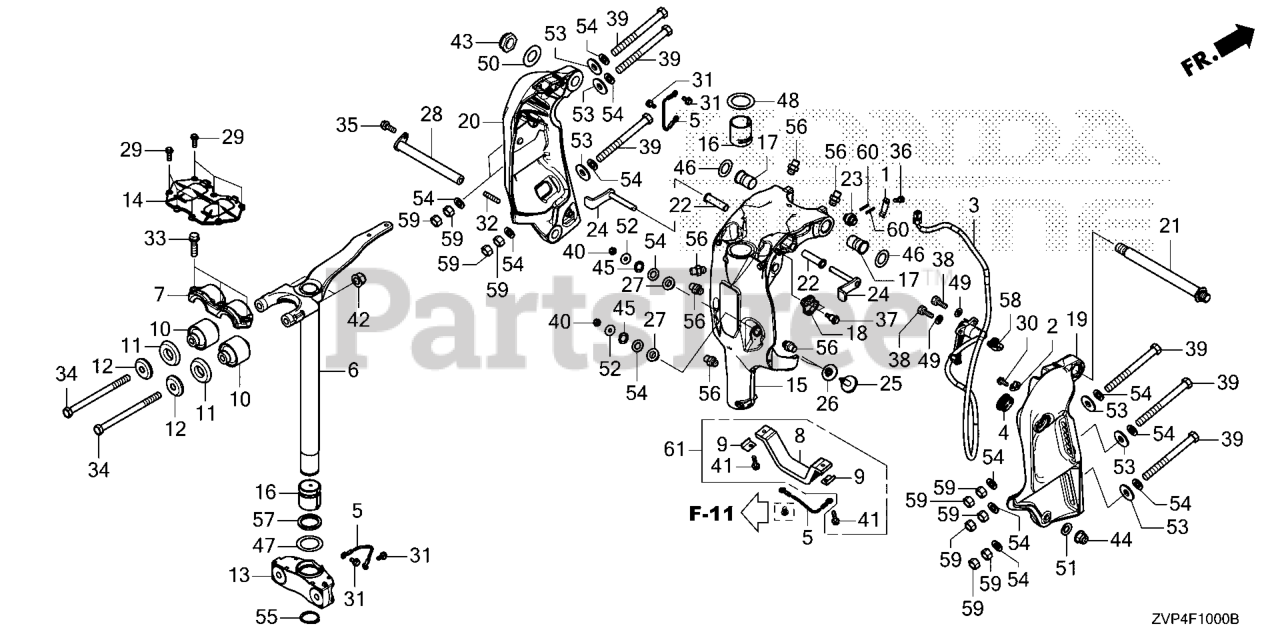

STERN BRACKET@SWIVEL CASE Parts Diagram

  • Title

1

Honda 24211-ZVP-000

SPRING, CLICK

$5.99

$

Usually ships in 3-6 days

0

2

Honda 32116-ZVP-000

BRACKET, HARN CLIP D

$5.99

$

Usually ships in 3-6 days

0

3

Honda 35660-ZVP-003

SENSOR ASSY.

$338.99

$

Usually ships in 0 days

0

4

Honda 35664-ZVP-000

GROMMET, SENSOR HARN

$13.99

$

Usually ships in 3-6 days

0

5

Honda 40219-ZY3-023

WIRE, LEAD (1.5X116MM)

$13.99

$

Usually ships in 3-6 days

0

6

Honda 50100-ZVP-000ZA

FRAME, MOUNT *NH565*

$1107.99

$

Usually ships in 3-6 days

0

6

Honda 50100-ZVP-000ZB

FRAME *NHB14M*

$1107.99

$

Usually ships in 0 days

0

7

Honda 50109-ZVP-000

HSG, MNT (UPPER)

$61.99

$

Usually ships in 0 days

0

8

Honda 50116-ZVP-000

METAL, ANODE

Note: (Optional)

$75.99

$

Usually ships in 3-6 days

0

9

Honda 50117-ZVP-000

PLATE, ANODE METAL

Note: (Optional)

$5.49

$

Usually ships in 3-6 days

0

10

Honda 50151-ZVP-000

MOUNT COMP, RUBBER

$80.99

$

Usually ships in 3-6 days

0

11

Honda 50153-ZVP-000

RUBBER, MNT STOPPER

$16.99

$

Usually ships in 3-6 days

0

12

Honda 50158-ZVP-000

STOPPER, MOUNT

$37.99

$

Usually ships in 3-6 days

0

13

Honda 50161-ZVP-000

HSG, MT CTR (LOWER)

$134.99

$

Usually ships in 0 days

0

14

Honda 50166-ZVP-000

COVER, MOUNT (UPPER)

$72.99

$

Usually ships in 0 days

0

15

Honda 50201-ZVP-000ZA

CASE, SWIVEL *NH565*

$1280.99

$

Usually ships in 3-6 days

0

15

Honda 50201-ZVP-000ZB

CASE *NHB14M*

$1280.99

$

Usually ships in 0 days

0

16

Honda 50211-ZVP-000

LINER, SWIVEL CASE

$9.49

$

Usually ships in 0 days

0

17

Honda 50214-ZVP-000

BUSH, SWIVEL CASE

$9.49

$

Usually ships in 3-6 days

0

18

Honda 50223-ZVP-000

CAM, TRIM/TILT ANGLE

$8.49

$

Usually ships in 3-6 days

0

19

Honda 50301-ZVP-000ZA

BRACKET *NH565*

$605.99

$

Usually ships in 3-6 days

0

19

Honda 50301-ZVP-000ZB

BRACKET *NHB14M*

$605.99

$

Usually ships in 0 days

0

20

Honda 50311-ZVP-000ZA

BRACKET *NH565*

$605.99

$

Usually ships in 0 days

0

20

Honda 50311-ZVP-000ZB

BRACKET *NHB14M*

$605.99

$

Usually ships in 0 days

0

21

Honda 50381-ZVP-000

SHAFT, TILTING

$89.99

$

Usually ships in 0 days

0

22

Honda 50522-ZY3-000

BUSH, TILT ARM

$11.99

$

Usually ships in 3-6 days

0

23

Honda 50527-ZVP-000

BRACKET, TILTING

$9.99

$

Usually ships in 0 days

0

24

Honda 50529-ZVP-000

STOPPER, TILT

$74.99

$

Usually ships in 3-6 days

0

25

Honda 56516-ZY3-A00

RECEIVER, THRUST

$21.99

$

Usually ships in 3-6 days

0

26

Honda 56518-ZY3-A00

BUSH A, THRUST RECEIVE

$17.99

$

Usually ships in 3-6 days

0

27

Honda 56519-ZY3-A00

BUSH B, THRUST RECEIVE

$8.99

$

Usually ships in 3-6 days

0

28

Honda 56539-ZVL-000

SHAFT, CYLINDER (LOWER)

$118.99

$

Usually ships in 3-6 days

0

29

Honda 90005-ZW9-030

BOLT, FLANGE (6X20) (ENGINE NO.)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 90101-ZX2-C00

BOLT-WASHER (6X16)

$4.49

$

Usually ships in 3-6 days

0

31

Honda 90102-ZW9-000

BOLT, FLANGE (6X12) Use from Frame SN 1005249.

$3.49

$

Usually ships in 3-6 days

0

32

Honda 90105-ZVL-000

BOLT, STUD (10X28)

$7.49

$

Usually ships in 3-6 days

0

33

Honda 90105-ZVP-000

BOLT-WASHER (10X37)

$6.49

$

Usually ships in 3-6 days

0

34

Honda 90106-ZVP-000

BOLT, HEX. (14X205)

$63.99

$

Usually ships in 3-6 days

0

35

Honda 90106-ZY3-A00

BOLT, FLANGE (8X22)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 90110-881-000

BOLT, HEX. (6X14)

$3.49

$

Usually ships in 3-6 days

0

37

Honda 90113-ZY3-C00

BOLT, SPECIAL (6X22)

$14.99

$

Usually ships in 3-6 days

0

38

Honda 90124-ZV4-000

BOLT, HEX. (6X20)

$3.49

$

In Stock, Qty 5

0

39

Honda 90129-ZVL-000

BOLT, HEX. (12X150)

$23.99

$

Usually ships in 3-6 days

0

39

Honda 90129-ZVP-000

BOLT, HEX. (12X180)

Note: (Optional)

$34.99

$

Usually ships in 3-6 days

0

39

Honda 90129-ZX2-000

BOLT, HEX. (12X130)

Note: (Optional)

$23.99

$

Usually ships in 3-6 days

0

40

Honda 90205-ZY1-000

NUT, SELF-LOCK (6MM)

$7.49

$

Usually ships in 3-6 days

0

41

Honda 90214-HW1-671

BOLT, FLANGE (6X25) (SUS-D)

Note: (Optional)

$4.99

$

Usually ships in 3-6 days

0

42

Honda 90302-ZVP-000

NUT (14MM)

$16.99

$

Usually ships in 3-6 days

0

43

Honda 90304-ZV5-013

SEE PART DETAILS - PRI; NUT, SELF-LOCK (7/8-14UNF)

$26.99

$

Usually ships in 3-6 days

0

44

Honda 90306-ZW4-003

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$6.49

$

Usually ships in 3-6 days

0

45

Honda 90501-ZY3-A00

WASHER, WAVE (12MM)

$5.99

$

Usually ships in 3-6 days

0

46

Honda 90502-ZV5-000

WASHER, WAVE (26MM)

$12.99

$

Usually ships in 3-6 days

0

47

Honda 90502-ZVP-000

WASHER, WAVE (45MM)

$11.99

$

Usually ships in 3-6 days

0

48

Honda 90504-ZVP-000

WASHER (45MM)

$6.49

$

Usually ships in 3-6 days

0

49

Honda 90506-ZV4-000

WASHER, PLAIN (6MM) Use up to Frame SN 4800342.

$3.99

$

In Stock, only 2 left!

0

50

Honda 90509-ZY3-000

WASHER (7/8")

$1.99

$

Usually ships in 3-6 days

0

51

Honda 90511-921-000

WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

52

Honda 90512-ZV4-000

WASHER, PLAIN (6MM)

$4.49

$

Usually ships in 3-6 days

0

53

Honda 90552-ZV5-000

WASHER, PLAIN (12MM)

$6.99

$

Usually ships in 3-6 days

0

54

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$4.49

$

Usually ships in 3-6 days

0

55

Honda 90651-ZVP-000

CIRCLIP, EX (44)

$9.49

$

Usually ships in 3-6 days

0

56

Honda 90951-ZV7-010

SEE PART DETAILS - PRI; NIPPLE, GREASE

$2.99

$

Usually ships in 3-6 days

0

57

Honda 91256-ZVP-003

OIL SEAL

$22.99

$

Usually ships in 3-6 days

0

58

Honda 91540-3A0-003

CLIP, HARNESS BAND (175.2MM) (DARK GRAY)

$0.99

$

Usually ships in 0 days

0

59

Honda 94001-12490-0S

NUT, HEX. (12MM)

$2.99

$

Usually ships in 3-6 days

0

60

Honda 94305-30203

PIN, SPRING (3X20)

$1.99

$

Usually ships in 3-6 days

0

61

Honda 06411-ZVP-000

METAL KIT, ANODE

Note: (Optional)

$43.99

$

Usually ships in 0 days

0
