BF350 A UDA (BBYJ) - Honda Marine Engine, Made in Japan (SN: BBYJ-8000001 - BBYJ-9999999) MOUNT CASE Parts Diagram

Marine Engine, Made in Japan

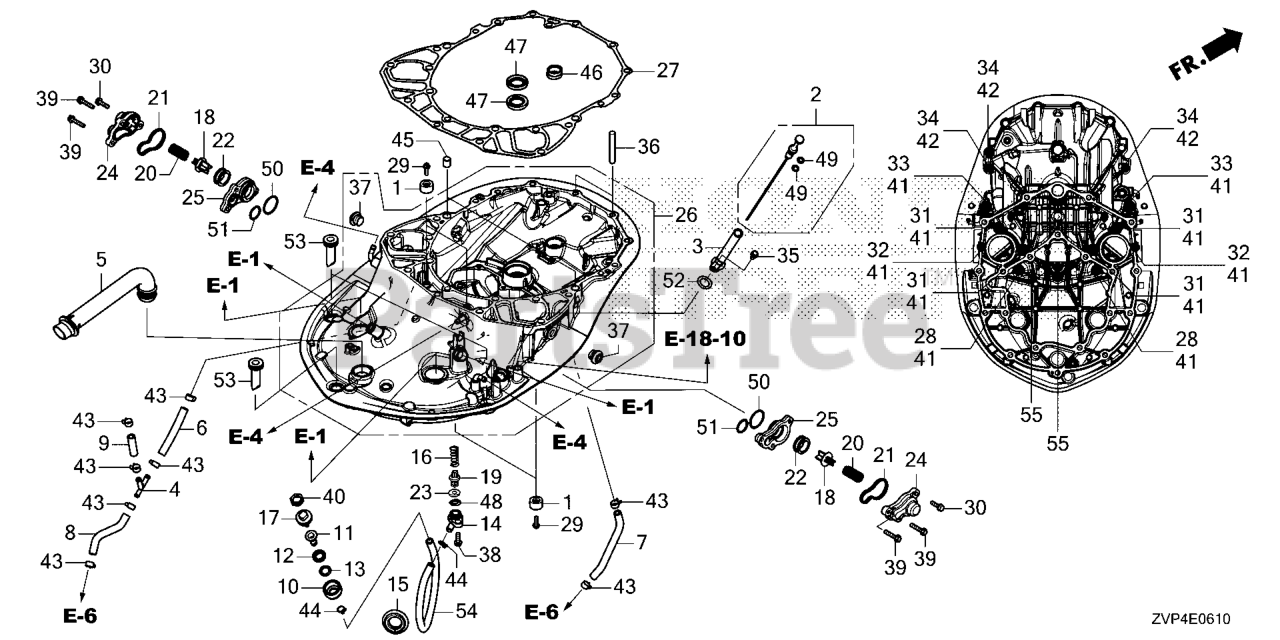

MOUNT CASE Parts Diagram

  • Title

1

Honda 12155-ZV5-010

METAL, ANODE

$14.99

$

In Stock, only 2 left!

0

2

Honda 15655-ZVP-000

GAUGE COMP

$15.99

$

Usually ships in 0 days

0

3

Honda 15665-ZVP-000

PIPE COMP, OIL LEVEL

$30.99

$

Usually ships in 0 days

0

4

Honda 16959-MY1-000

JOINT, FUEL TUBE

$25.99

$

Usually ships in 3-6 days

0

5

Honda 18211-ZVP-000

PORT, IDLE EX.

$41.99

$

Usually ships in 3-6 days

0

6

Honda 19264-ZVP-000

TUBE, FLUSH VALVE

$8.99

$

Usually ships in 3-6 days

0

7

Honda 19265-ZVP-000

TUBE

$10.99

$

Usually ships in 3-6 days

0

8

Honda 19266-ZVP-000

TUBE A

$9.49

$

Usually ships in 3-6 days

0

9

Honda 19267-ZVP-000

TUBE B

$4.49

$

Usually ships in 3-6 days

0

10

Honda 19270-ZY3-000

NUT, WATER MOUTH

$19.99

$

Usually ships in 3-6 days

0

11

Honda 19271-ZY3-000

JOINT, WATER HOSE

$13.99

$

Usually ships in 3-6 days

0

12

Honda 19272-ZY3-000

SEAT, WATER MOUTH

$5.99

$

Usually ships in 3-6 days

0

13

Honda 19274-ZVL-000

SEAT, WATER JOINT

$2.49

$

Usually ships in 3-6 days

0

14

Honda 19277-ZY9-M01

COVER, FLUSH VLV

$16.99

$

Usually ships in 3-6 days

0

15

Honda 19279-ZVP-000

GROMMET, WATER TUBE

$8.99

$

Usually ships in 3-6 days

0

16

Honda 19279-ZW9-010

SEE PART DETAILS - PRI; SPRING, FLUSH VALVE

$2.49

$

In Stock, only 3 left!

0

17

Honda 19289-ZY3-000

CAP, WATER JOINT

$4.49

$

Usually ships in 3-6 days

0

18

Honda 19291-ZW5-000

VALVE, RELIEF

$10.99

$

Usually ships in 3-6 days

0

19

Honda 19291-ZW9-000

VALVE, FLUSH

$8.99

$

In Stock, only 2 left!

0

20

Honda 19292-ZW5-000

SPRING, RELIEF VALVE

$6.49

$

Usually ships in 3-6 days

0

21

Honda 19296-ZVP-000

PKG

$5.49

$

Usually ships in 3-6 days

0

22

Honda 19297-ZW5-000

GASKET, RELIEF VALVE

$9.49

$

Usually ships in 3-6 days

0

23

Honda 19297-ZW9-010

PKG, FLUSH VALVE

$2.49

$

Usually ships in 0 days

0

24

Honda 19297-ZY3-000

COVER, L. RELIEF VALVE

$24.99

$

Usually ships in 3-6 days

0

25

Honda 19298-ZY3-000ZB

SPACER, L. RELIEF VALVE *TGRAY* (GRAY)

$76.99

$

Usually ships in 3-6 days

0

26

Honda 23170-ZVP-000

CASE COMP, MOUNT

$1256.99

$

Usually ships in 3-6 days

0

27

Honda 23172-ZVP-005

GSKT, MOUNT CASE

$156.99

$

Usually ships in 0 days

0

28

Honda 90001-ZVP-000

BOLT, HEX. (12X100)

$18.99

$

Usually ships in 3-6 days

0

29

Honda 90004-ZX2-000

BOLT, FLANGE (6X18)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 90009-ZW9-000

BOLT, FLANGE (6X23) Use from Frame SN 4800343.

$4.49

$

Usually ships in 3-6 days

0

31

Honda 90010-ZVP-000

BOLT, HEX. (12X175)

$32.99

$

Usually ships in 3-6 days

0

32

Honda 90011-ZVP-000

BOLT, HEX. (12X55)

$10.99

$

Usually ships in 3-6 days

0

33

Honda 90011-ZY3-000

BOLT, HEX. (12X65)

$18.99

$

Usually ships in 3-6 days

0

34

Honda 90015-ZY3-000

BOLT, HEX. (10X60)

$12.99

$

Usually ships in 3-6 days

0

35

Honda 90021-ZZ5-M01

BOLT, FLANGE (6X14)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 90045-ZVP-000

BOLT 2, STUD (10X50)

$4.49

$

Usually ships in 0 days

0

37

Honda 90083-ZVP-000

BOLT, SEALING (18MM)

$10.99

$

Usually ships in 3-6 days

0

38

Honda 90105-ZW9-000

BOLT, FLANGE (6X20) (ENGINE NO.)

$4.49

$

Usually ships in 3-6 days

0

39

Honda 90109-ZVA-000

BOLT-WASHER (6X35)

$4.49

$

Usually ships in 3-6 days

0

40

Honda 90302-921-000

NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE)

$6.49

$

In Stock, only 1 left!

0

41

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$4.49

$

Usually ships in 3-6 days

0

42

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.99

$

Usually ships in 3-6 days

0

43

Honda 90601-ZVL-000

CLAMP D12.5, TUBE

$2.49

$

Usually ships in 3-6 days

0

44

Honda 90651-ZY6-000

CLIP B1, TUBE

$5.49

$

Usually ships in 3-6 days

0

45

Honda 90701-PW5-000

PIN, DOWEL (14X15)

$6.99

$

Usually ships in 3-6 days

0

46

Honda 91001-ZY3-003

BEARING, NEEDLE (20X28X13) (SOLID)

$52.99

$

Usually ships in 3-6 days

0

47

Honda 91204-ZV5-005

OIL SEAL (25X40X7)

$16.99

$

Usually ships in 3-6 days

0

48

Honda 91303-800-000

O-RING (16MM) (Honda Code 0065094).

$3.49

$

In Stock, only 1 left!

0

49

Honda 91303-ZVL-000

O-RING (8.8X1.9)

$1.49

$

Usually ships in 3-6 days

0

50

Honda 91305-ZY3-003

O-RING (33.5X2)

$4.49

$

Usually ships in 3-6 days

0

51

Honda 91306-ZY3-003

O-RING (23.5X2)

$4.99

$

Usually ships in 3-6 days

0

52

Honda 91309-ZVT-000

O-RING (15.5X3.5)

$1.49

$

Usually ships in 3-6 days

0

53

Honda 91601-ZVP-000

GROMMET (1WAY)

$10.99

$

Usually ships in 3-6 days

0

54

Honda 95001-80001-60M

BULK HOSE, FUEL (8X1000) (95001-80001-(95001-80001-60M)

$37.99

$

Usually ships in 3-6 days

0

55

Honda 96300-10080-09

BOLT (10X80)

$2.49

$

Usually ships in 3-6 days

0
