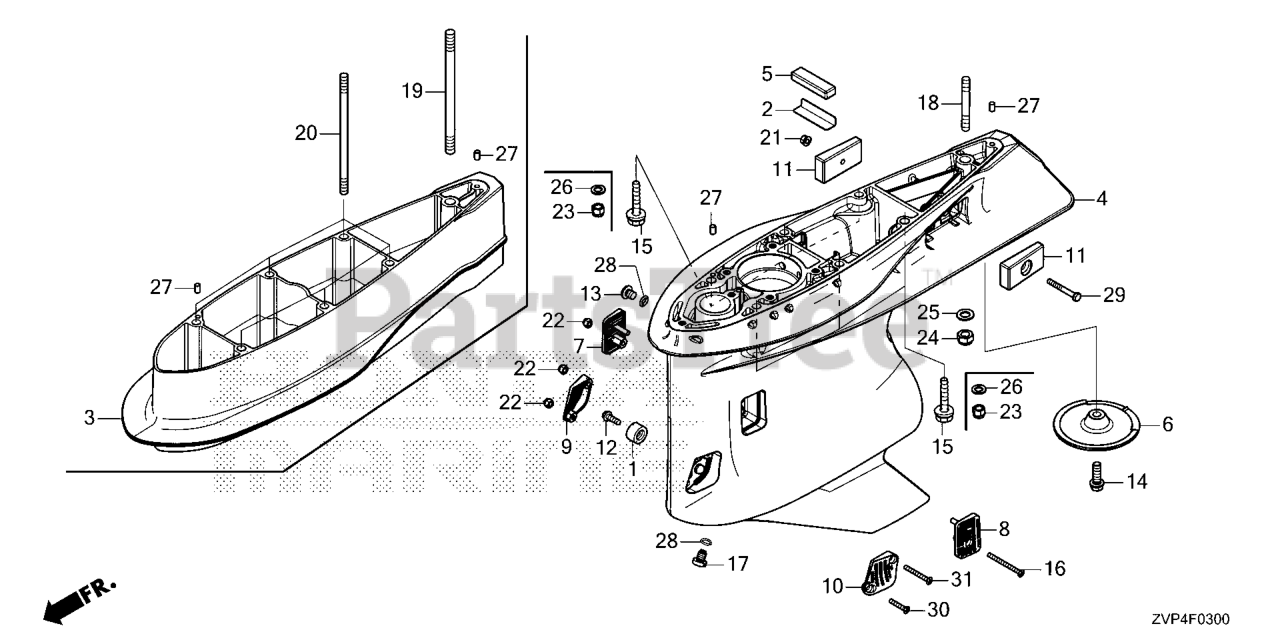

BF350 A UDA (BBYJ) - Honda Marine Engine, Made in Japan (SN: BBYJ-8000001 - BBYJ-9999999) GEAR CASE Parts Diagram

Marine Engine, Made in Japan

GEAR CASE Parts Diagram

  • Title

1

Honda 12155-ZV5-010

METAL, ANODE

$14.99

$

In Stock, only 2 left!

0

2

Honda 19286-ZW1-B00

PLATE, RUBBER SETTING

$9.49

$

Usually ships in 3-6 days

0

3

Honda 40202-ZVP-600ZA

SEPARATOR *NH565*

$1176.99

$

Usually ships in 3-6 days

0

3

Honda 40202-ZVP-600ZB

SEPARATOR *NHB14M*

$1176.99

$

Usually ships in 0 days

0

4

Honda 41101-ZVP-000ZA

CASE, GEAR *NH565*

$1652.99

$

Usually ships in 3-6 days

0

4

Honda 41101-ZVP-000ZB

CASE, GEAR *NHB14M*

$1652.99

$

Usually ships in 0 days

0

5

Honda 41102-ZW1-B00

GROMMET, GEAR CASE

$9.49

$

Usually ships in 3-6 days

0

6

Honda 41102-ZX2-E00ZA

COVER, GEAR CASE *NHB14M* (AQUA MARINE SILVER METALLIC)

$49.99

$

Usually ships in 3-6 days

0

6

Honda 41102-ZX2-E00ZD

COVER, GEAR CASE *NH565* (GRAND PRIX WHITE)

$47.99

$

Usually ships in 3-6 days

0

7

Honda 41104-ZVP-000

SCREEN, RR. R WATER

$8.99

$

Usually ships in 3-6 days

0

8

Honda 41105-ZVP-000

SCREEN, RR. L WATER

$8.99

$

Usually ships in 3-6 days

0

9

Honda 41106-ZVP-000

SCREEN, FR. R WATER

$7.99

$

Usually ships in 3-6 days

0

10

Honda 41107-ZVP-000

SCREEN, FR. L WATER

$7.99

$

Usually ships in 3-6 days

0

11

Honda 41109-ZW1-B00

METAL, ANODE

$26.99

$

Usually ships in 3-6 days

0

12

Honda 90004-ZX2-000

BOLT, FLANGE (6X18)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90101-ZW9-003

BOLT, OIL CHECK

$4.49

$

In Stock, only 2 left!

0

14

Honda 90103-ZY6-000

BOLT-WASHER (10X32)

$4.99

$

Usually ships in 3-6 days

0

16

Honda 90116-ZVP-000

SCREW, OVAL (5X60)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90120-ZY3-000

BOLT, DRAIN PLUG

$21.99

$

Usually ships in 3-6 days

0

19

Honda 90130-ZY3-620

BOLT, STUD (12X170)

$92.99

$

Usually ships in 3-6 days

0

20

Honda 90131-ZY3-620

BOLT, STUD (10X170)

$61.99

$

Usually ships in 3-6 days

0

21

Honda 90205-ZY1-000

NUT, SELF-LOCK (6MM)

$7.49

$

Usually ships in 3-6 days

0

22

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$7.49

$

Usually ships in 3-6 days

0

23

Honda 90306-ZV5-003

NUT, SELF-LOCK (10MM)

$5.49

$

In Stock, only 2 left!

0

24

Honda 90308-ZW1-003

NUT, SELF-LOCK (12MM)

$14.99

$

Usually ships in 3-6 days

0

25

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$4.49

$

Usually ships in 3-6 days

0

26

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.99

$

Usually ships in 3-6 days

0

27

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

In Stock, only 2 left!

0

28

Honda 91301-ZW4-003

O-RING (6.9X1.45)

$1.49

$

In Stock, only 4 left!

0

29

Honda 92101-06050-4J

BOLT, HEX. (6X50)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 93700-05030-4J

SCREW, OVAL (5X30)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 93700-05045-4J

SCREW, OVAL (5X45)

$2.99

$

Usually ships in 3-6 days

0
