BF350 A UDA (BBYJ) - Honda Marine Engine, Made in Japan (SN: BBYJ-8000001 - BBYJ-9999999) CYLINDER HEAD Parts Diagram

Marine Engine, Made in Japan

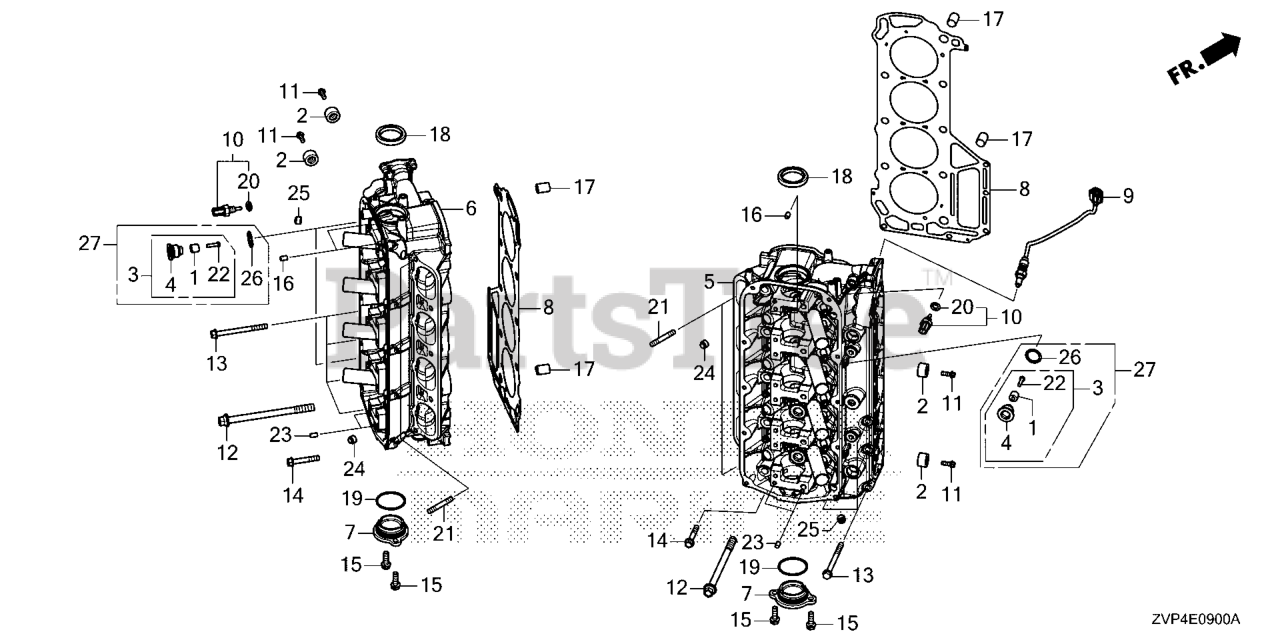

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12155-ZV4-A01

METAL, ANODE

$16.99

$

Usually ships in 3-6 days

0

2

Honda 12155-ZV5-010

METAL, ANODE

$14.99

$

In Stock, only 2 left!

0

3

Honda 12160-ZY3-010

BOLT, SEALING (22MM)

$30.99

$

Usually ships in 3-6 days

0

4

Honda 12164-ZY3-000

BOLT, SEALING (22MM)

$22.99

$

Usually ships in 3-6 days

0

5

Honda 12210-ZVP-000

HEAD COMP, CYLN R

$2265.99

$

Usually ships in 0 days

0

6

Honda 12220-ZVP-000

HEAD COMP, CYLN L

$2265.99

$

Usually ships in 0 days

0

7

Honda 12241-ZY3-000

COVER, L. CAMSHAFT THRUST

$30.99

$

Usually ships in 3-6 days

0

8

Honda 12251-ZVP-003

GASKET COMP

$94.99

$

Usually ships in 0 days

0

9

Honda 35655-ZVP-003

SENSOR, OXYGEN

$310.99

$

Usually ships in 0 days

0

10

Honda 35673-ZY3-003

SENSOR ASSY., WATER TEMPERATURE

$33.99

$

Usually ships in 3-6 days

0

11

Honda 90004-ZX2-000

BOLT, FLANGE (6X18)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90005-PT0-003

BOLT-WASHER (12X163)

$23.99

$

Usually ships in 3-6 days

0

13

Honda 90011-ZY9-M01

BOLT, FLANGE (8X95)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90020-ZVL-010

BOLT, FLANGE (8X50)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 90151-ZZ0-M01

BOLT, FLANGE (8X25)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90701-P8A-A00

PIN, DOWEL (6X10)

$6.99

$

Usually ships in 3-6 days

0

17

Honda 90705-PT0-000

PIN, DOWEL (16X22)

$5.99

$

Usually ships in 3-6 days

0

18

Honda 91213-RKG-003

OIL SEAL (39X53X8) (NOK)

$17.99

$

In Stock, only 2 left!

0

19

Honda 91301-P8A-A00

O-RING (48.5X2.4)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 91307-PNA-003

O-RING (9.5X1.9)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 92900-08040-0B

BOLT, STUD (8X40)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 93500-05020-4J

SCREW, PAN (5X20)

$1.49

$

In Stock, Qty 5

0

23

Honda 94302-06100

PIN B, DOWEL (6X10) (Honda Code 0145417).

$3.49

$

Usually ships in 3-6 days

0

24

Honda 12210-PZ1-004

SEE PART DETAILS - PRI; SEAL A, VALVE STEM (NOK)

$6.49

$

In Stock, Qty 5

0

25

Honda 12211-PZ1-004

SEE PART DETAILS - PRI; SEAL B, VALVE STEM (NOK)

$6.49

$

In Stock, Qty 5

0

26

Honda 12171-ZY3-305

WASHER, SEALING (22MM)

$3.99

$

Usually ships in 3-6 days

0

27

Honda 06126-ZVL-000

BOLT KIT (22MM)

$11.99

$

Usually ships in 0 days

0
