BF35 AM XRTA (BAPU) - Honda Marine Engine, Made in Japan (SN: BAPU-1000001 - BAPU-9999999) POWER TILT COMPONENTS Parts Diagram

Marine Engine, Made in Japan

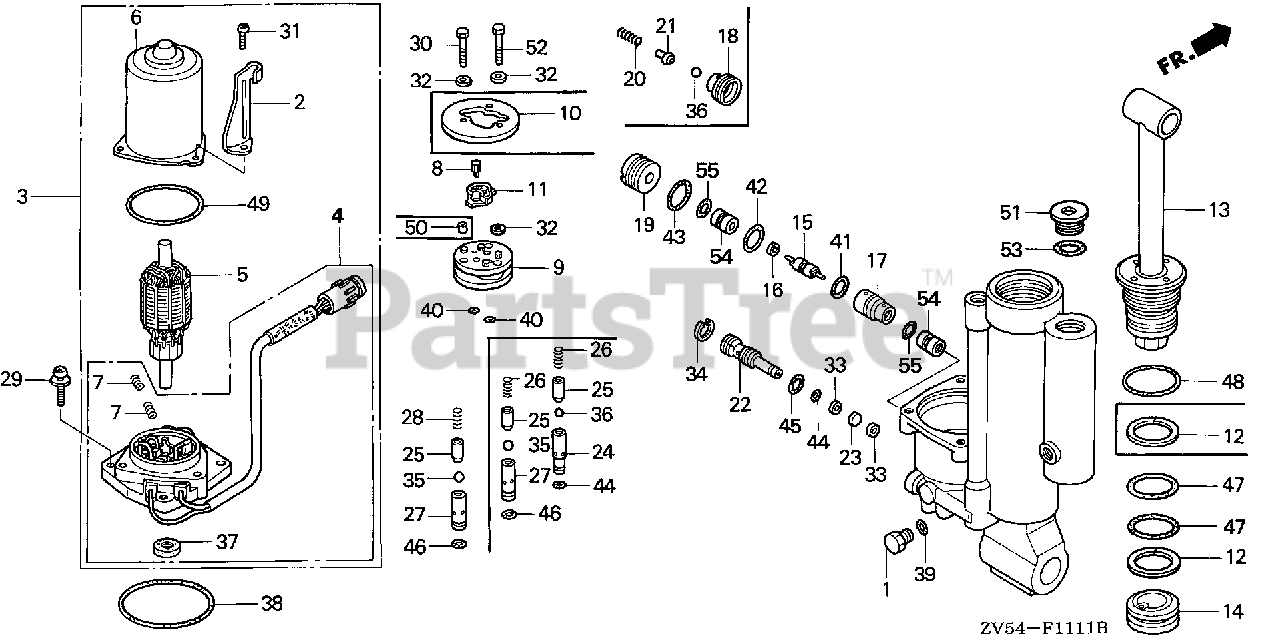

POWER TILT COMPONENTS Parts Diagram

  • Title

1

Honda 15626-ZV5-822

CAP, OIL HOLE

$10.99

$

Usually ships in 3-6 days

0

2

Honda 32115-ZV5-820

CLAMP, WIRE

$44.99

$

Usually ships in 3-6 days

0

3

Honda 36120-ZV5-821

MOTOR ASSY., POWER TILT

$490.99

$

Usually ships in 3-6 days

0

4

Honda 36122-ZV5-821

BRACKET ASSY.

$

$

Not available

5

Honda 36123-ZV5-821

ARMATURE

$

$

Not available

6

Honda 36129-ZV5-821

YOKE

$

$

Not available

7

Honda 36136-ZV5-821

SPRING, MOTOR

$9.99

$

Usually ships in 3-6 days

0

8

Honda 56113-ZV5-821

JOINT, DRIVE

$

$

Not available

9

Honda 56114-ZV5-821

PUMP

$434.99

$

Usually ships in 3-6 days

0

10

Honda 56115-ZV5-821

HOLDER, VALVE

$

$

Not available

11

Honda 56116-ZV5-821

FILTER, B

$

$

Not available

13

Honda 56120-ZV5-822

SEE PART DETAILS - PRI; ROD, PISTON

$

$

Not available

14

Honda 56130-ZV5-821

PISTON, FREE

$

$

Not available

15

Honda 56150-ZV5-821

SPOOL, VALVE

$59.99

$

Usually ships in 3-6 days

0

16

Honda 56151-ZV5-821

RING, BACK-UP

$10.99

$

Usually ships in 3-6 days

0

17

Honda 56161-ZV5-821

SLEEVE

$74.99

$

Usually ships in 3-6 days

0

18

Honda 56162-ZV5-821

SEAT D, VALVE

$

$

Not available

19

Honda 56163-ZV5-821

PLUG C

$

$

Not available

20

Honda 56164-ZV5-821

SPRING, CHECK VALVE

$

$

Not available

21

Honda 56165-ZV5-821

GUIDE B, SPRING

$17.99

$

Usually ships in 3-6 days

0

22

Honda 56171-ZV5-821

VALVE, MANUAL

$

$

Not available

23

Honda 56172-ZV5-821

SEAT, PLATE

$

$

Not available

24

Honda 56181-ZV5-821

SEAT, VALVE

$

$

Not available

25

Honda 56182-ZV5-821

GUIDE, SPRING

$

$

Not available

26

Honda 56183-ZV5-821

SPRING, VALVE

$4.49

$

Usually ships in 3-6 days

0

27

Honda 56191-ZV5-821

SEAT B, VALVE

$48.99

$

Usually ships in 3-6 days

0

28

Honda 56192-ZV5-821

SPRING B, VALVE

$4.49

$

Usually ships in 3-6 days

0

29

Honda 90001-ZV5-821

SCREW-WASHER

$7.49

$

Usually ships in 3-6 days

0

30

Honda 90002-ZV5-821

BOLT, HEX. (5X30)

$

$

Not available

31

Honda 90134-ZV5-820

SCREW, PAN (5X16)

$7.49

$

Usually ships in 3-6 days

0

32

Honda 90401-ZV5-821

WASHER, PLAIN

$

$

Not available

33

Honda 90402-V15-003

SEE PART DETAILS - PRI; WASHER, SEAL

$5.99

$

Usually ships in 3-6 days

0

33

Honda 90402-ZV5-821

SEE PART DETAILS - SUP; WASHER, SEAL
(Superseded to 90402-V15-003)

$5.99

$

Usually ships in 3-6 days

0

34

Honda 90604-ZV5-821

SEE PART DETAILS - SUP; CIRCLIP (INNER)

$

$

Currently unavailable

35

Honda 90921-ZV5-821

BALL, STEEL

$

$

Not available

36

Honda 90922-ZV5-821

BALL, STEEL

$

$

Currently unavailable

37

Honda 91203-ZV5-821

OIL SEAL

$41.99

$

Usually ships in 3-6 days

0

38

Honda 91302-ZV5-821

O-RING

$6.99

$

Usually ships in 3-6 days

0

39

Honda 91303-ZV5-821

O-RING

$4.99

$

Usually ships in 3-6 days

0

40

Honda 91304-ZV5-821

O-RING

$4.99

$

Usually ships in 3-6 days

0

41

Honda 91306-ZV5-821

O-RING

$4.99

$

Usually ships in 3-6 days

0

42

Honda 91307-ZV5-821

O-RING

$4.99

$

Usually ships in 3-6 days

0

43

Honda 91308-ZV5-821

O-RING

$3.99

$

Usually ships in 3-6 days

0

44

Honda 91309-ZV5-821

O-RING

$4.99

$

In Stock, only 1 left!

0

45

Honda 91310-ZV5-821

O-RING

$4.99

$

In Stock, only 1 left!

0

46

Honda 91311-ZV5-821

O-RING

$3.99

$

Usually ships in 3-6 days

0

48

Honda 91317-ZV5-821

O-RING

$4.99

$

Usually ships in 3-6 days

0

49

Honda 91318-ZV5-821

SEE PART DETAILS - SUP; O-RING
(Superseded to 91318-ZV5-822)

$7.49

$

Usually ships in 3-6 days

0

49

Honda 91318-ZV5-822

SEE PART DETAILS - PRI; O-RING

$7.49

$

Usually ships in 3-6 days

0

50

Honda 91501-ZV5-821

COLLAR

$

$

Not available

52

Honda 90002-ZV5-821

BOLT, HEX. (5X30)

$

$

Not available
