BF35 AM LRA (BLAG) - Honda Marine Engine, Made in Japan (SN: BLAG-1000001 - BLAG-9999999) IGNITION COIL (1) Parts Diagram

Marine Engine, Made in Japan

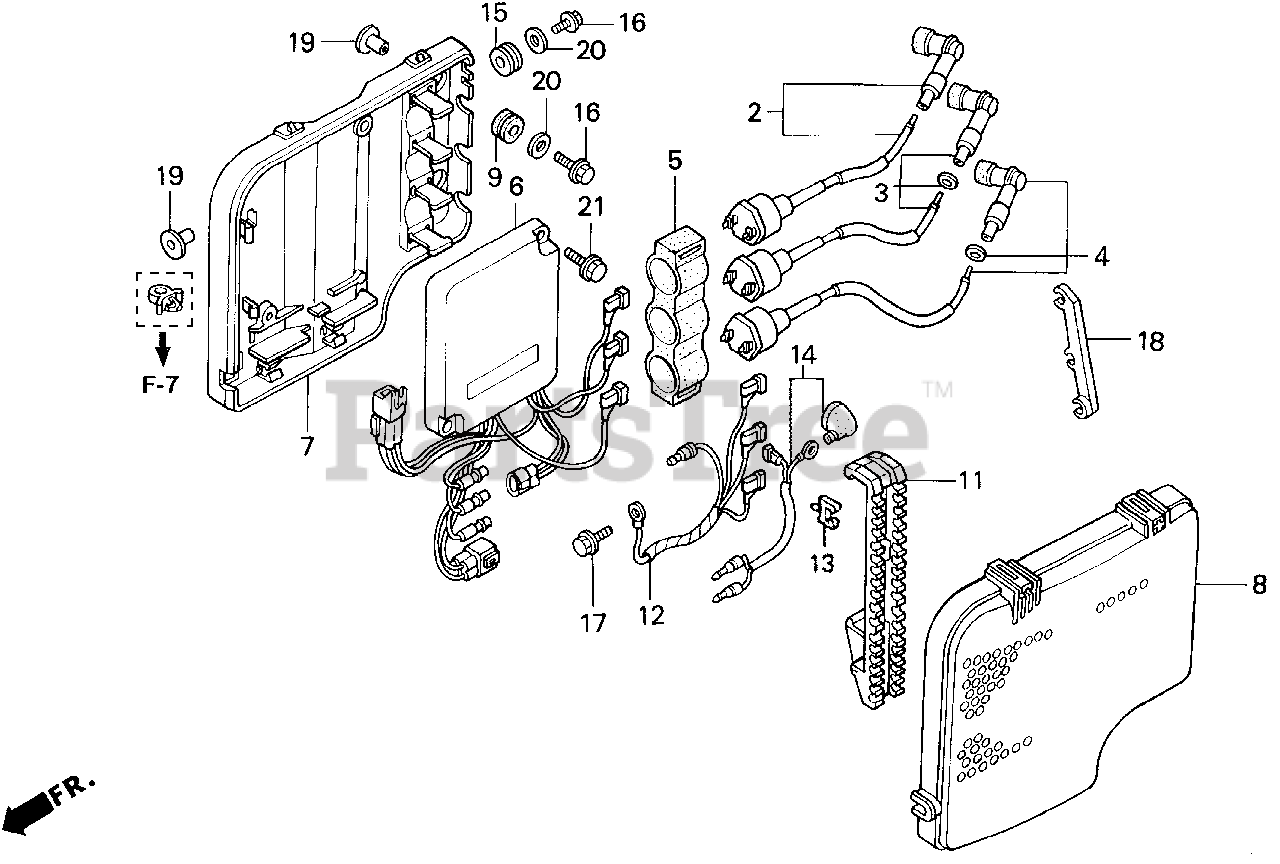

IGNITION COIL (1) Parts Diagram

  • Title

2

Honda 30511-ZV5-003

COIL, IGNITION (1)

$

$

Not available

3

Honda 30512-ZV5-003

COIL, IGNITION (2)

$61.99

$

Usually ships in 3-6 days

0

4

Honda 30513-ZV5-003

COIL, IGNITION (3)

$67.99

$

Usually ships in 3-6 days

0

5

Honda 30516-ZV5-003

SUSPENSION, IGNITION COIL

$9.99

$

Usually ships in 3-6 days

0

6

Honda 30580-ZV5-003

MODULE, IGNITION CONTROL (CDI)

$

$

Not available

7

Honda 30587-ZV5-003

CASE, IGNITION CONTROL MODULE

$

$

Not available

8

Honda 30588-ZV5-003

SEE PART DETAILS - SUP; COVER, IGNITION CONTROL MODULE

$

$

Currently unavailable

8

Honda 30588-ZV5-013

SEE PART DETAILS - PRI; COVER, IGNITION CONTROL MODULE (CDI)

$39.99

$

Usually ships in 3-6 days

0

9

Honda 30598-ZV5-000

GROMMET, IGNITION CONTROL MODULE CASE (B)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 32106-ZV5-010

SEE PART DETAILS - PRI; BRACKET, CONNECTOR (A)

$13.99

$

Usually ships in 3-6 days

0

12

Honda 32610-ZV5-000

WIRE ASSY., GROUND

$

$

Not available

13

Honda 32805-413-000

CLIP, TURN SIGNAL WIRE

$3.49

$

Usually ships in 3-6 days

0

14

Honda 37204-ZV5-000

WIRE, SWITCH

$28.99

$

Usually ships in 3-6 days

0

15

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90121-ZV0-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X25)
(Superseded to 90121-ZV0-010)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90122-ZV1-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90601-ZV5-000

CLIP, IGNITION WIRE

$

$

Not available

19

Honda 91553-ZV5-000

SEE PART DETAILS - SUP; COLLAR, IGNITION CONTROL MODULE CASE
(Superseded to 91553-ZV5-010)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 94103-06200

WASHER, PLAIN (6MM)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 95701-06020-02

BOLT, FLANGE (6X20)

$1.99

$

Usually ships in 3-6 days

0
