BF30 DK3 LRGA (BAUJ) - Honda Marine Engine, Made in Japan (SN: BAUJ-1500001 - BAUJ-9999999) REGULATOR Parts Diagram

Marine Engine, Made in Japan

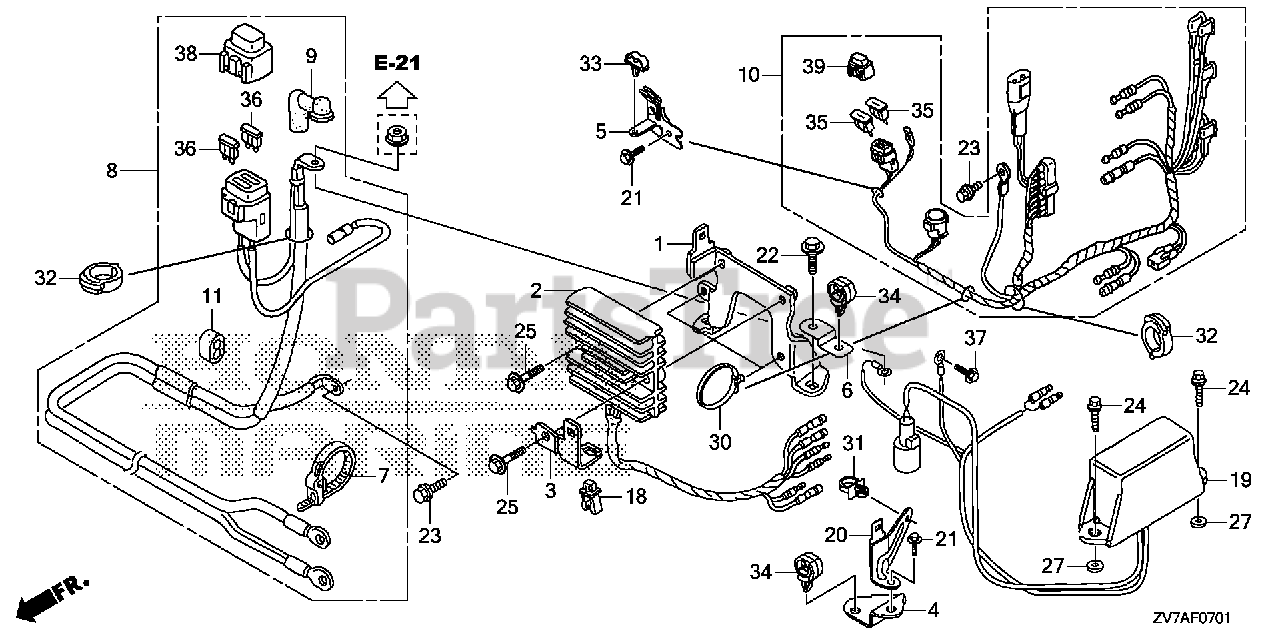

REGULATOR Parts Diagram

  • Title

1

Honda 31604-ZV7-781

BRACKET, REGULATOR

$22.99

$

Usually ships in 3-6 days

0

2

Honda 31750-ZW2-F93

RECTIFIER ASSY., REGULATOR (12A)

$227.99

$

Usually ships in 3-6 days

0

3

Honda 32108-ZV7-010

BRACKET, CONNECTOR

$8.99

$

Usually ships in 3-6 days

0

5

Honda 32112-ZW2-F00

BRACKET, FUSE CASE

$43.99

$

Usually ships in 3-6 days

0

7

Honda 32121-HA0-003

BAND, WIRE

Note: Use up to Frame SN 1500435.

$11.99

$

Usually ships in 3-6 days

0

7

Honda 90651-KV6-003

BAND, WIRE (165MM) (BLACK)

Note: Use from Frame SN 1500436.

$4.99

$

Usually ships in 3-6 days

0

8

Honda 32410-ZW2-F00

CABLE ASSY., STARTER

$364.99

$

Usually ships in 3-6 days

0

9

Honda 32411-ZV7-751

COVER, TERMINAL

$11.99

$

Usually ships in 3-6 days

0

10

Honda 32520-ZW2-F02

CABLE ASSY., REMOTE CONTROL (A)

$114.99

$

Usually ships in 3-6 days

0

11

Honda 32903-701-000

CLAMP, IGNITION WIRE

$2.49

$

Usually ships in 3-6 days

0

18

Honda 37304-PE1-661

CLIP B, AIR TEMPERATURE SWITCH WIRE

$10.99

$

Usually ships in 3-6 days

0

21

Honda 90011-ZW9-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 90013-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

$2.99

$

In Stock, only 3 left!

0

23

Honda 90013-ZW4-000

BOLT, FLANGE (6X12) (CT200)

$3.99

$

Usually ships in 3-6 days

0

25

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 90672-SA0-003

STRAP, CABLE (118MM) (BLACK)

$10.99

$

Usually ships in 3-6 days

0

32

Honda 90683-KJ2-003

CLIP, WIRE HARNESS

$5.49

$

Usually ships in 3-6 days

0

33

Honda 90688-ZV4-003

CLIP, CORD

$3.49

$

Usually ships in 3-6 days

0

35

Honda 98200-31000

FUSE, BLADE (10A)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 98200-31500

FUSE, BLADE (15A)

$1.99

$

In Stock, Qty 6

0

38

Honda 38216-ZV5-003

COVER ASSY., FUSE (15A)

$5.99

$

Usually ships in 3-6 days

0

39

Honda 38218-ZW5-004

COVER ASSY., FUSE (10A)

$8.49

$

Usually ships in 3-6 days

0
