BF30 DK2 LRTA (BAUJ) - Honda Marine Engine, Made in Japan (SN: BAUJ-1400001 - BAUJ-9999999) IGNITION COIL + C.D.I. UNIT Parts Diagram

Marine Engine, Made in Japan

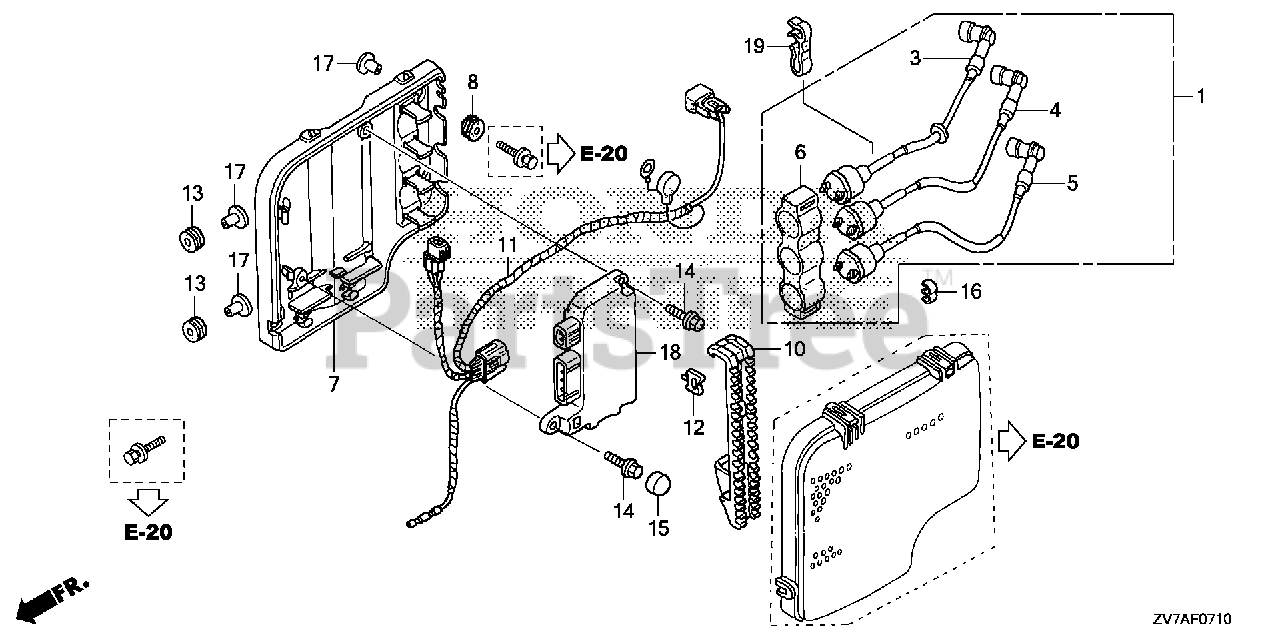

IGNITION COIL + C.D.I. UNIT Parts Diagram

  • Title

1

Honda 30500-ZW2-F01

COIL ASSY., IGNITION

$127.99

$

Usually ships in 3-6 days

0

3

Honda 30511-ZV7-003

COIL, IGNITION (1)

$60.99

$

Usually ships in 3-6 days

0

4

Honda 30512-ZV7-003

COIL, IGNITION (2)

$60.99

$

Usually ships in 3-6 days

0

5

Honda 30513-ZW2-F01

COIL, IGNITION (3)

$46.99

$

Usually ships in 3-6 days

0

6

Honda 30516-ZV5-003

SUSPENSION, IGNITION COIL

$9.49

$

Usually ships in 3-6 days

0

7

Honda 30587-ZW2-F01

CASE, IGNITION CONTROL MODULE (CDI)

$32.99

$

Usually ships in 3-6 days

0

8

Honda 30598-ZV5-000

GROMMET, MODULE IGNITION CONTROL CASE (CDI)(B)

$5.49

$

Usually ships in 3-6 days

0

10

Honda 32106-ZV5-010

BRACKET, CONNECTOR (A)

$13.99

$

Usually ships in 3-6 days

0

11

Honda 32160-ZW2-F50

CABLE ASSY., IGNITION CONTROL MODULE (2) (CDI)

$76.99

$

Usually ships in 3-6 days

0

12

Honda 32805-413-000

CLIP, TURN SIGNAL WIRE

$3.49

$

Usually ships in 3-6 days

0

13

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90082-ZW4-H01

CAP, BOLT (6MM)

$4.99

$

Usually ships in 3-6 days

0

16

Honda 90658-ZA0-930

CLIP, HIGH TENSION CORD

$3.49

$

Usually ships in 3-6 days

0

17

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 30400-ZV7-F03

SEE PART DETAILS - PRI; MODULE, IGNITION CONTROL (CDI)

$693.99

$

Usually ships in 3-6 days

0

19

Honda 32765-PA1-730

CLAMP, WIRE

$

$

Not available
