BF30 A3 LRSA (BAWS) - Honda Marine Engine, Made in Japan (SN: BAWS-3300001 - BAWS-3399999) STERN BRACKET Parts Diagram

Marine Engine, Made in Japan

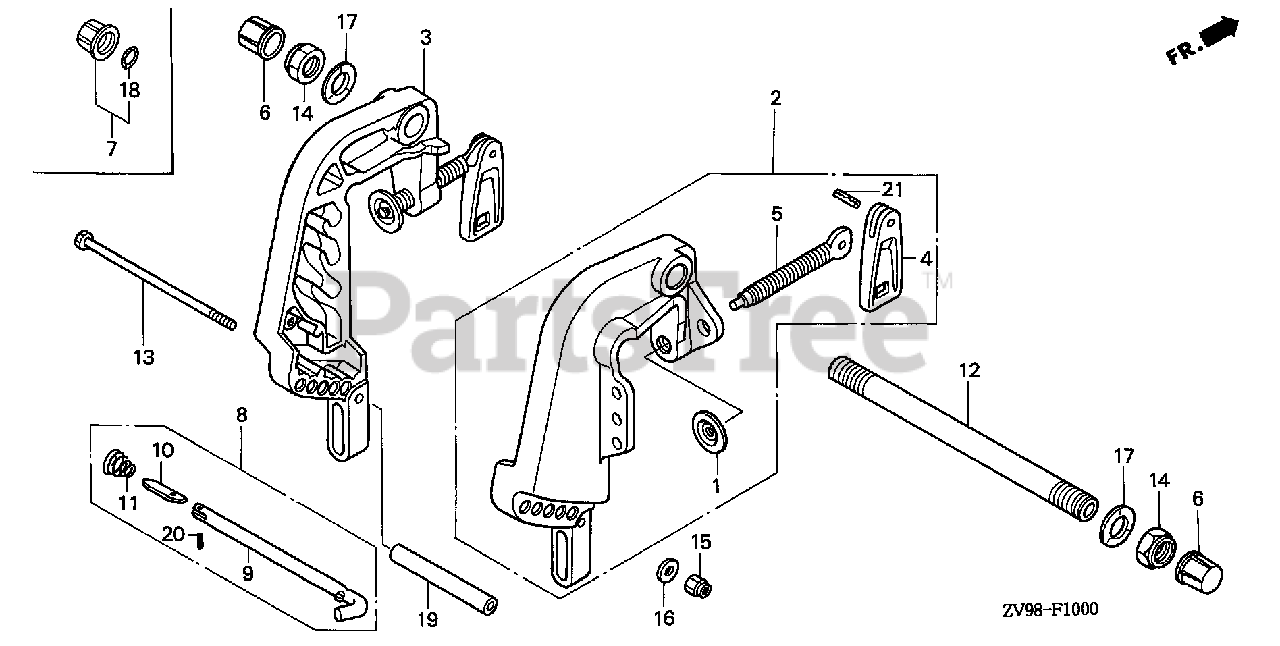

STERN BRACKET Parts Diagram

  • Title
1

Honda 50122-935-010

PLATE, PUSH

$7.49

$

Usually ships in 3-6 days

0

2

Honda 50300-ZW9-832ZA

SEE PART DETAILS - PRI; BRACKET, R. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$221.99

$

Usually ships in 3-6 days

0

3

Honda 50310-ZW9-833ZA

SEE PART DETAILS - PRI; BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$203.99

$

Usually ships in 3-6 days

0

4

Honda 50323-ZV4-310ZB

GRIP, CLAMP *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

5

Honda 50325-881-310

SEE PART DETAILS - SUP; SCREW, CLAMP (NOT AVAILABLE)
(Superseded to 50325-881-505)

$

$

Not available

5

Honda 50325-881-505

SEE PART DETAILS - PRI; SCREW, CLAMP

$

$

Not available

6

Honda 50331-ZV5-000

CAP, TILTING BOLT

$7.99

$

Usually ships in 3-6 days

0

7

$11.99

$

Usually ships in 3-6 days

0

8

Honda 50340-ZV7-010

SEE PART DETAILS - PRI; ROD, ADJUSTING

$61.99

$

Usually ships in 3-6 days

0

9

Honda 50341-ZV7-310

SEE PART DETAILS - PRI; ROD, ADJUSTING

$38.99

$

Usually ships in 3-6 days

0

10

Honda 50342-ZV5-300

STOPPER, ROD

$6.99

$

Usually ships in 3-6 days

0

11

Honda 50343-ZV7-300

SPRING, ADJUSTING ROD

$4.99

$

Usually ships in 3-6 days

0

12

Honda 50381-ZZ5-000

SEE PART DETAILS - PRI; SHAFT, TILTING

$101.99

$

Usually ships in 3-6 days

0

13

Honda 90108-ZV7-000

BOLT, HEX. (8X163)

$18.99

$

Usually ships in 3-6 days

0

14

Honda 90304-ZV5-013

SEE PART DETAILS - PRI; NUT, SELF-LOCK (7/8-14UNF)

$23.99

$

Usually ships in 3-6 days

0

15

Honda 90305-ZV4-000

NUT, SELF-LOCK (8MM)

$6.49

$

In Stock, only 1 left!

0

16

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90517-ZV5-000

WASHER, WAVE (22MM)

$7.49

$

Usually ships in 3-6 days

0

18

Honda 91352-ZV5-000

O-RING (15.54X2.62)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 91501-ZV7-000

COLLAR, DISTANCE (8MM)

$39.99

$

Usually ships in 3-6 days

0

20

Honda 94305-25083

PIN, SPRING (2.5X8)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 94305-40143

PIN, SPRING (4X14)

$1.99

$

In Stock, only 1 left!

0
