BF30 A LRSA (BAWL) - Honda Marine Engine, Made in Japan (SN: BAWL-1000001 - BAWL-1999999) OIL PAN Parts Diagram

Marine Engine, Made in Japan

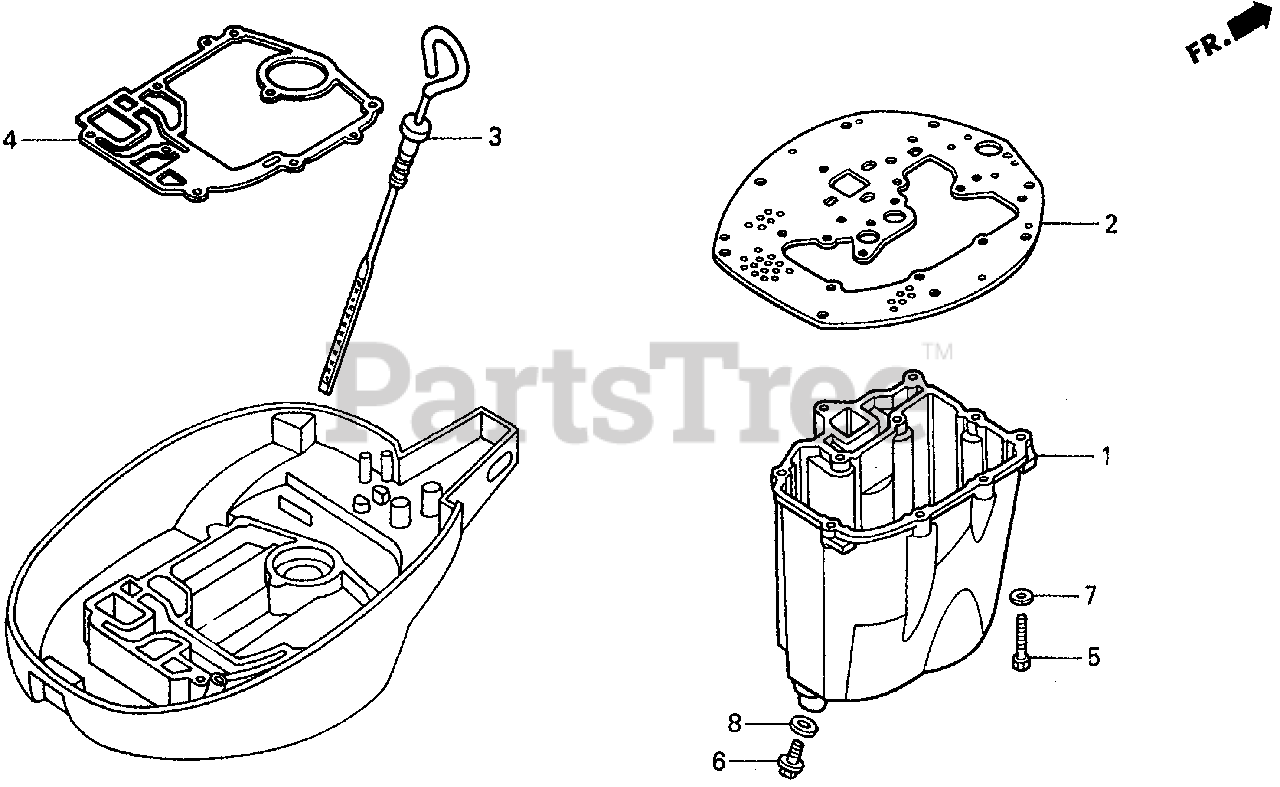

OIL PAN Parts Diagram

  • Title
1

Honda 11311-ZV7-010ZA

SEE PART DETAILS - SUP; PAN, OIL *TGRAY* (T GRAY)

$

$

Not available

2

Honda 11381-ZV7-010

SEE PART DETAILS - SUP; GASKET, OIL PAN
(Superseded to 11381-ZV7-020)

$35.99

$

Usually ships in 3-6 days

0

3

Honda 15650-ZV7-000

DIPSTICK, OIL

$25.99

$

Usually ships in 3-6 days

0

4

Honda 23162-ZV7-000

SEE PART DETAILS - SUP; GASKET, ENGINE CASE (LOWER)
(Superseded to 23162-ZV7-010)

$37.99

$

Usually ships in 3-6 days

0

4

Honda 23162-ZV7-010

SEE PART DETAILS - PRI; GASKET, ENGINE CASE (LOWER)

$37.99

$

Usually ships in 3-6 days

0

5

Honda 90113-ZV5-000

BOLT, HEX. (6X25)

$3.49

$

Usually ships in 3-6 days

0

6

Honda 90131-ZV5-000

BOLT, DRAIN PLUG

$10.99

$

Usually ships in 3-6 days

0

7

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

8

Honda 90601-ZE2-000

WASHER, DRAIN PLUG (12MM)

$3.49

$

Usually ships in 3-6 days

0
