BF250 D XCDS (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) THROTTLE BODY Parts Diagram

Marine Engine, Made in Japan

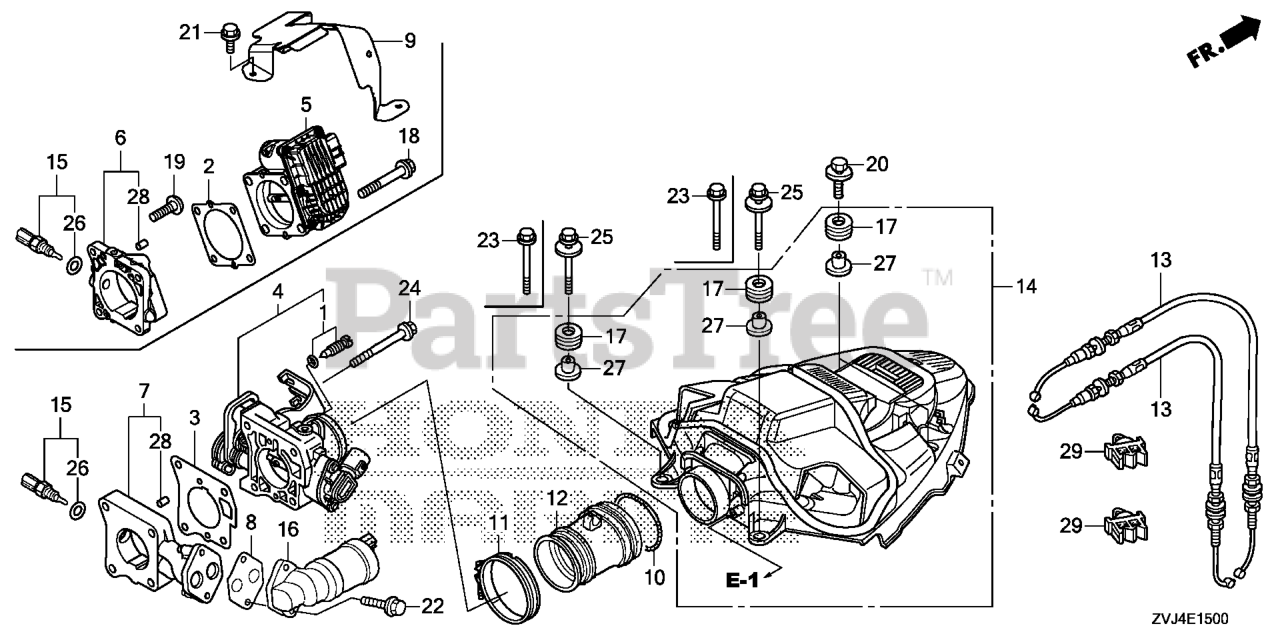

THROTTLE BODY Parts Diagram

  • Title

2

Honda 16176-ZVL-003

GASKET, THROTTLE BODY

$4.49

$

Usually ships in 3-6 days

0

5

Honda 16400-ZVL-003

THROTTLE BODY, ELECTRONIC CONTROL

$1263.99

$

Usually ships in 3-6 days

0

6

Honda 16404-ZVL-000

SPACER, THROTTLE BODY

$121.99

$

Usually ships in 3-6 days

0

9

Honda 16406-ZVL-000

GUARD, THROTTLE BODY

$77.99

$

Usually ships in 3-6 days

0

10

Honda 17249-PY3-000

SPRING, AIR FLOW TUBE

$13.99

$

Usually ships in 3-6 days

0

11

Honda 17315-ZY9-M00

BAND, AIR FLOW
(Superseded to 17315-ZY9-M01)

$17.99

$

Usually ships in 3-6 days

0

11

Honda 17315-ZY9-M01

BAND, AIR FLOW

$17.99

$

Usually ships in 3-6 days

0

12

Honda 17374-ZX2-000

GROMMET, MUFFLER

$41.99

$

Usually ships in 3-6 days

0

14

Honda 19540-ZVL-000

COVER ASSY., COOLING FAN
(Superseded to 19540-ZVL-010)

Note: Use up to Engine SN 1007871.

$273.99

$

Usually ships in 3-6 days

0

14

Honda 19540-ZVL-010

COVER, COOLING FAN

Note: Use from Engine SN 1007872.

$273.99

$

Usually ships in 3-6 days

0

15

Honda 35665-ZW5-003

SENSOR ASSY., AIR TEMPERATURE

$28.99

$

Usually ships in 3-6 days

0

17

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90010-ZVL-000

BOLT, FLANGE (8X55)

Note: Use up to Engine SN 1006951.

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90010-ZVL-010

BOLT, FLANGE (8X55)

Note: Use from Engine SN 1006952.

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90012-ZVL-000

BOLT, SOCKET (8X25)

Note: Use up to Engine SN 1006951.

$5.49

$

Usually ships in 3-6 days

0

19

Honda 90012-ZVL-010

BOLT, SOCKET (8X25)

Note: Use from Engine SN 1006952.

$4.99

$

Usually ships in 3-6 days

0

20

Honda 90013-ZZ5-M00

BOLT-WASHER (6X25)
(Superseded to 90013-ZZ5-M01)

Note: Use up to Engine SN 1006951.

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90013-ZZ5-M01

BOLT-WASHER (6X25)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90021-ZZ5-M00

BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)

Note: Use up to Engine SN 1007289.

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90021-ZZ5-M01

BOLT, FLANGE (6X14)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90034-ZVL-010

BOLT, FLANGE (6X60)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 91303-P0A-A02

O-RING

$5.99

$

Usually ships in 3-6 days

0

27

Honda 91503-ZY9-M00

COLLAR, MODULE IGNITION CONTROL CASE (CDI)

Note: Use up to Engine SN 1007871.

$3.49

$

Usually ships in 3-6 days

0

27

Honda 91551-ZVL-010

COLLAR (12X6.5)

Note: Use from Engine SN 1007872.

$3.49

$

Usually ships in 3-6 days

0

28

Honda 94301-06100

SEE PART DETAILS - PRI; PIN A, DOWEL (6X10) (Honda Code 0294256).
