BF250 D XCDS (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) CAMSHAFT@ROCKER ARM Parts Diagram

Marine Engine, Made in Japan

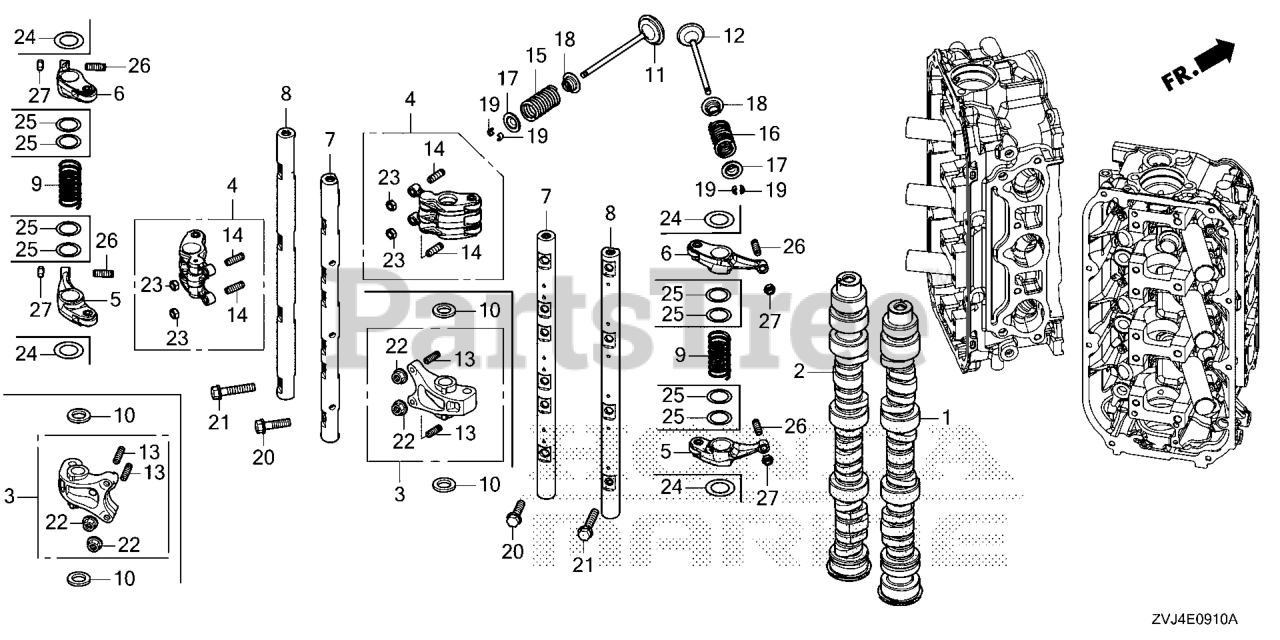

CAMSHAFT@ROCKER ARM Parts Diagram

  • Title

1

Honda 14111-ZX2-000

CAMSHAFT, R.

$582.99

$

Usually ships in 3-6 days

0

2

Honda 14211-ZX2-000

CAMSHAFT, L.

$582.99

$

Usually ships in 3-6 days

0

4

Honda 14620-P8A-A01

ARM ASSY., IN. ROCKER

$631.99

$

Usually ships in 3-6 days

0

5

Honda 14626-ZVL-700

ARM COMP

Note: Use from Engine SN 1015858.

$48.99

$

Usually ships in 3-6 days

0

6

Honda 14627-ZVL-700

ARM COMP

Note: Use from Engine SN 1015858.

$48.99

$

Usually ships in 3-6 days

0

7

Honda 14631-P8A-A00

SHAFT, IN. ROCKER ARM

$155.99

$

Usually ships in 3-6 days

0

8

Honda 14632-ZVL-700

SHAFT COMP

Note: Use from Engine SN 1015858.

$44.99

$

Usually ships in 3-6 days

0

9

Honda 14645-P8A-A01

SPRING, ROCKER ARM

Note: Use up to Engine SN 1015857.

$1.99

$

Usually ships in 3-6 days

0

9

Honda 14645-ZVL-700

SPG, RKR ARM

Note: Use from Engine SN 1015858.

$4.99

$

Usually ships in 3-6 days

0

11

Honda 14711-RJA-000

VALVE, IN.

$55.99

$

Usually ships in 3-6 days

0

12

Honda 14721-RJA-E00

VALVE, EX.

$58.99

$

Usually ships in 3-6 days

0

14

Honda 14744-PT0-004

SCREW, TAPPET ADJUSTING

$12.99

$

Usually ships in 3-6 days

0

15

Honda 14761-RKG-003

SPRING, VALVE (PINK) (NIPPON HATSUJO)

$16.99

$

Usually ships in 3-6 days

0

16

Honda 14762-P8E-A02

SPRING, EX. VALVE (YEL/GRN) (ASSOCIATE)

$21.99

$

Usually ships in 3-6 days

0

17

Honda 14765-RDV-J00

RETAINER, VALVE SPRING

$9.49

$

Usually ships in 3-6 days

0

18

Honda 14775-PM3-000

SEAT, VALVE SPRING

$9.49

$

Usually ships in 3-6 days

0

19

Honda 14781-RGM-A01

COTTER, VALVE (FUJI VALVE)

$8.49

$

Usually ships in 3-6 days

0

20

Honda 90003-P8A-A00

BOLT, FLANGE (8X30)

$6.99

$

Usually ships in 3-6 days

0

21

Honda 90004-P8A-A00

BOLT, FLANGE (8X40)

$4.49

$

Usually ships in 3-6 days

0

23

Honda 90206-PT0-004

NUT, TAPPET ADJUSTING

$4.99

$

Usually ships in 3-6 days

0

24

Honda 14646-R70-A00

WASHER, THRUST

Note: Use from Engine SN 1015858.

$6.49

$

Usually ships in 3-6 days

0

25

Honda 14646-ZVL-700

WASHER (25MM)

Note: Use from Engine SN 1015858.

$2.99

$

Usually ships in 3-6 days

0

26

Honda 14744-PT0-004

SCREW, TAPPET ADJUSTING

Note: Use up to Engine SN 1015857.

$12.99

$

Usually ships in 3-6 days

0

26

Honda 90017-ZVL-701

SCREW, TAPPET ADJG

Note: Use from Engine SN 1015858.

$4.49

$

Usually ships in 3-6 days

0

27

Honda 90206-PM3-004

NUT, TAPPET ADJUSTING (TOKAI TRW)

Note: Use from Engine SN 1015858.

$6.99

$

Usually ships in 3-6 days

0

27

Honda 90206-PT0-004

NUT, TAPPET ADJUSTING

Note: Use up to Engine SN 1015857.

$4.99

$

Usually ships in 3-6 days

0
