BF250 D XCDA (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) SHIFT SHAFT (DBW) Parts Diagram

Marine Engine, Made in Japan

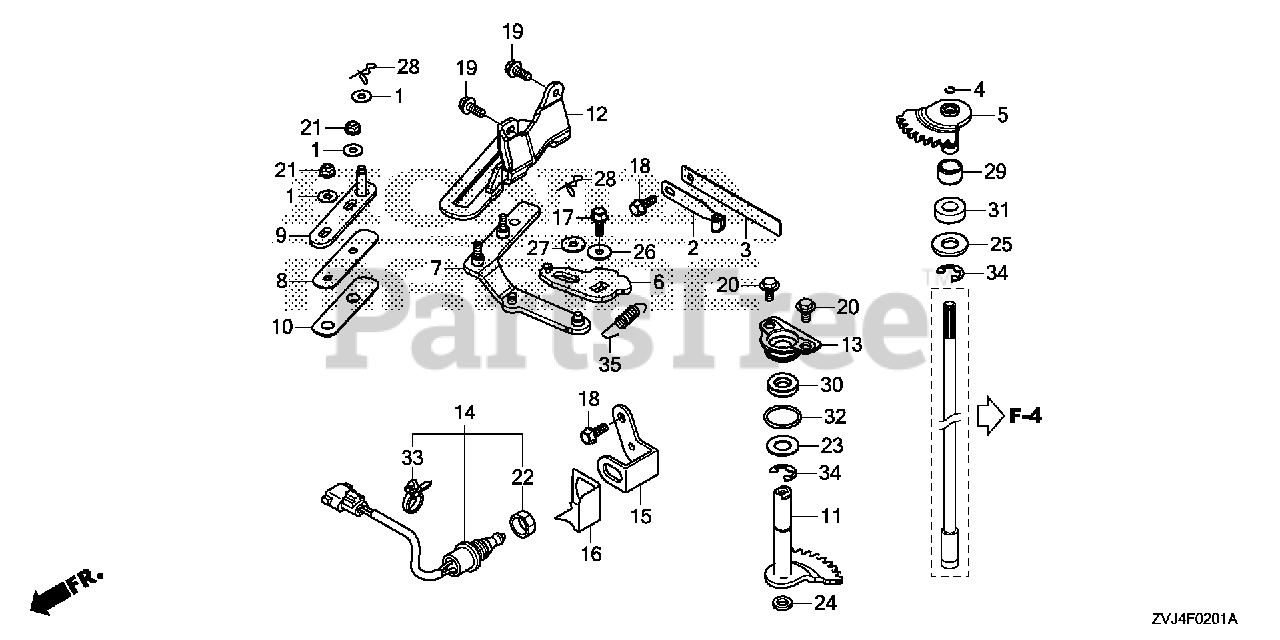

SHIFT SHAFT (DBW) Parts Diagram

  • Title

1

Honda 17936-921-000

WASHER, PIVOT

$1.99

$

Usually ships in 3-6 days

0

2

Honda 24210-ZVL-000

SPRING, CLICK

$11.99

$

Usually ships in 3-6 days

0

3

Honda 24221-ZY3-000

SPRING, CLICK ASSIST

$17.99

$

Usually ships in 3-6 days

0

4

Honda 24327-ZW1-000

RING, STOPPER

$2.49

$

Usually ships in 3-6 days

0

5

Honda 24610-ZY3-A00

SHAFT, SHIFT (A)

$112.99

$

Usually ships in 3-6 days

0

6

Honda 24612-ZVL-010

ARM, SHIFT

$18.99

$

Usually ships in 3-6 days

0

7

Honda 24613-ZVL-010

ROD, LINK

$

$

Not available

8

Honda 24614-ZVL-000

PLATE, SHIFT PIVOT

$4.99

$

Usually ships in 3-6 days

0

9

Honda 24617-ZVL-000

ROD, ACTUATOR LINK

$

$

Not available

10

Honda 24618-ZVL-000

PIVOT, SHIFT SLIDE

$6.99

$

Usually ships in 3-6 days

0

11

Honda 24620-ZY3-000

SHAFT, SHIFT (B)

$116.99

$

Usually ships in 3-6 days

0

12

Honda 24627-ZVL-010

GUIDE, SHIFT LINK

$109.99

$

Usually ships in 3-6 days

0

13

Honda 24629-ZW1-000

HOLDER, SEAL

$28.99

$

Usually ships in 3-6 days

0

14

Honda 35470-ZX2-013

SWITCH ASSY., NEUTRAL

$58.99

$

Usually ships in 3-6 days

0

15

Honda 35476-ZY3-010

BRACKET, NEUTRAL SWITCH

$30.99

$

Usually ships in 3-6 days

0

16

Honda 35477-ZVL-000

COVER, NEUTRAL SWITCH

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90017-ZZ5-M00

BOLT, FLANGE (6X16)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90021-ZZ5-M00

BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90026-ZY3-000

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90101-ZZ0-M00

BOLT, FLANGE (6X11)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90205-ZY1-000

NUT, SELF-LOCK (6MM)

$6.49

$

Usually ships in 3-6 days

0

22

Honda 90302-ZV5-003

NUT, HEX. (20MM) Use up to Frame SN 1300359.

$7.49

$

Usually ships in 3-6 days

0

23

Honda 90402-HA0-000

WASHER, THRUST (14MM)

$5.49

$

Usually ships in 3-6 days

0

24

Honda 90428-958-000

WASHER B, THRUST (14MM)

$6.49

$

Usually ships in 3-6 days

0

25

Honda 90508-ZV7-000

WASHER

$8.99

$

Usually ships in 3-6 days

0

26

Honda 90508-ZZ5-M00

WASHER, PLAIN (6MM)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 90511-ZV4-000

WASHER, PLAIN (6MM)

$2.99

$

In Stock, only 1 left!

0

28

Honda 90705-SD2-931

PIN, SNAP (6MM)

$5.49

$

Usually ships in 3-6 days

0

29

Honda 91152-ZY3-003

RING (INNER) (15X20X13)

$16.99

$

Usually ships in 3-6 days

0

30

Honda 91251-ZW5-003

OIL SEAL (14X26X6)

$5.49

$

Usually ships in 3-6 days

0

31

Honda 91255-ZY3-003

SEAL, WATER (14X26X8)

$9.99

$

Usually ships in 3-6 days

0

32

Honda 91302-PF0-003

O-RING (26.9X2.4) (NOK)

$4.49

$

Usually ships in 3-6 days

0

33

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0

34

Honda 94540-12029

E-RING (12MM)

$10.99

$

Usually ships in 3-6 days

0

35

Honda 24639-ZVL-000

SPRING, GEARSHIFT ARM

$3.99

$

Usually ships in 3-6 days

0
