BF250 D UCDS (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) UNDER COVER Parts Diagram

Marine Engine, Made in Japan

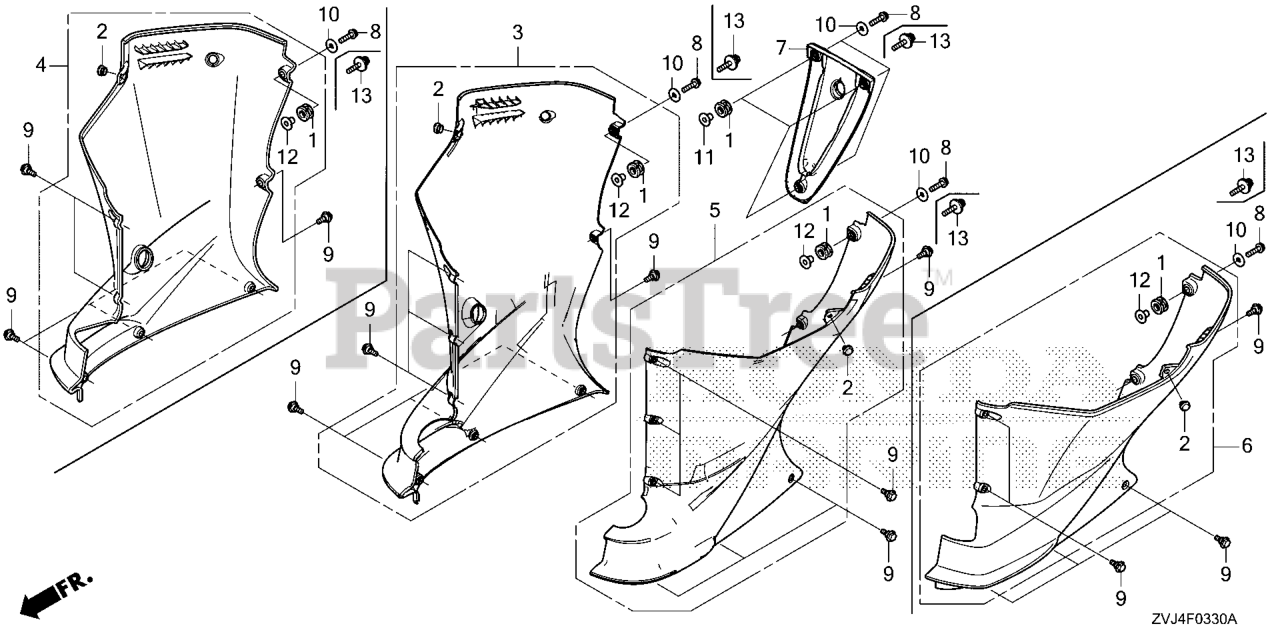

UNDER COVER Parts Diagram

  • Title

1

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

2

Honda 47117-196-000

RUBBER, STOPPER

$3.99

$

Usually ships in 3-6 days

0

3

Honda 63710-ZVL-000ZB

COVER, R. ENGINE (LOWER) *NH565* (XL) (GRAND PRIX WHITE)

$429.99

$

Usually ships in 3-6 days

0

3

Honda 63710-ZVL-000ZC

COVER, R. ENGINE (LOWER) *NHB14M* (XL) (AQUA MARINE SILVER METALLIC)

$371.99

$

Usually ships in 3-6 days

0

5

Honda 63715-ZVL-000ZB

COVER, L. ENGINE (LOWER) *NH565* (XL) (GRAND PRIX WHITE)
(Superseded to 63715-ZVL-010ZB)

$371.99

$

Usually ships in 3-6 days

0

5

Honda 63715-ZVL-000ZC

COVER, L. ENGINE (LOWER) *NHB14M* (XL) (AQUA MARINE SILVER METALLIC)
(Superseded to 63715-ZVL-010ZC)

$371.99

$

Usually ships in 3-6 days

0

7

Honda 63721-ZVL-000

COVER, RR.

$97.99

$

Usually ships in 3-6 days

0

8

Honda 90109-ZVL-000

BOLT, FLANGE (6X25)

Note: Use up to Frame SN 8011281.

$2.49

$

Usually ships in 3-6 days

0

9

Honda 90111-ZY3-000

BOLT, SPECIAL (6X17)

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90512-ZVL-000

WASHER, PLAIN (6MM)

Note: Use up to Frame SN 8011281.

$0.99

$

Usually ships in 3-6 days

0

11

Honda 91551-ZVL-010

COLLAR (12X6.5)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 91551-ZVL-010

COLLAR (12X6.5)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90110-ZVL-000

BOLT, WASHER (6X25)

Note: Use from Frame SN 8011282.

$3.49

$

Usually ships in 3-6 days

0
