BF250 D UCDS (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) INTAKE MANIFOLD Parts Diagram

Marine Engine, Made in Japan

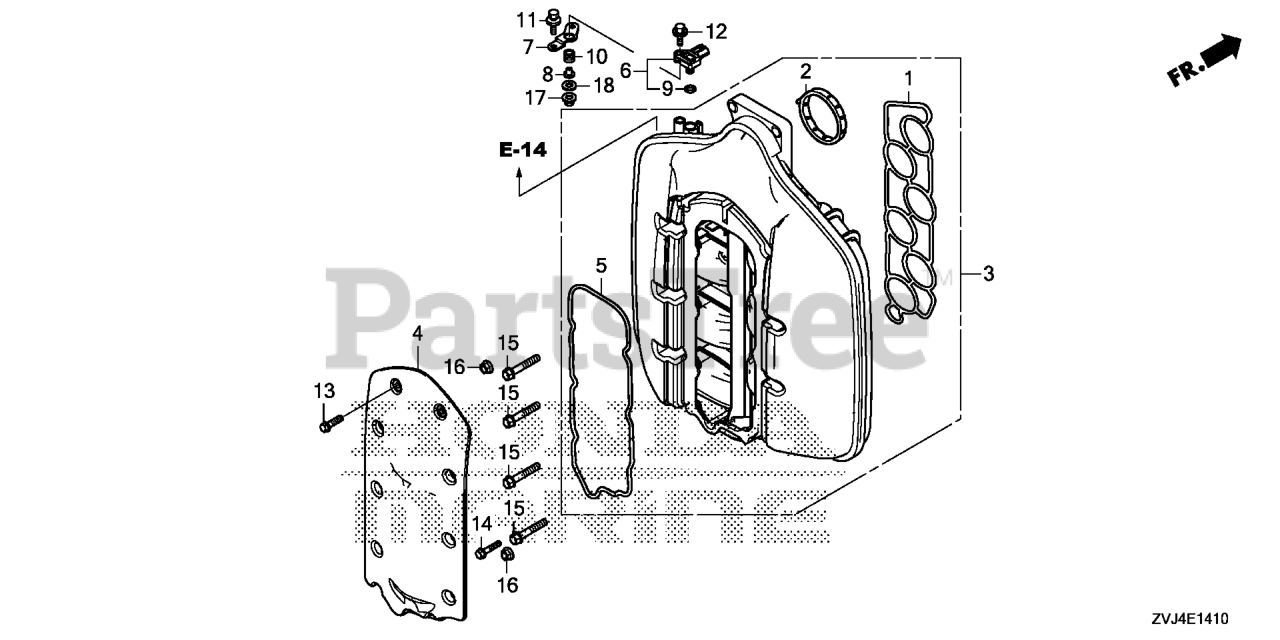

INTAKE MANIFOLD Parts Diagram

  • Title

1

Honda 17105-ZY3-004

GASKET, IN. MANIFOLD

$83.99

$

Usually ships in 3-6 days

0

2

Honda 17109-ZY3-004

GASKET, THROTTLE BODY

$15.99

$

Usually ships in 3-6 days

0

3

Honda 17110-ZVL-003

MANIFOLD, INLET

$1582.99

$

Usually ships in 3-6 days

0

4

Honda 17131-ZVL-000ZA

COVER, IN. MANIFOLD (UPPER) *NH8* (DARK GRAY)

$424.99

$

Usually ships in 3-6 days

0

5

Honda 17138-ZY3-004

GASKET, IN. MANIFOLD UP COVER

$69.99

$

Usually ships in 3-6 days

0

6

Honda 37830-RNA-A01

SENSOR ASSY., MAP

$114.99

$

Usually ships in 3-6 days

0

7

Honda 37831-ZVL-000

STAY, MAP SENSOR

$5.99

$

Usually ships in 3-6 days

0

8

Honda 37832-ZVL-000

COLLAR (5.5X6.8)

Note: Use up to Engine SN 1006951.

$3.49

$

Usually ships in 3-6 days

0

8

Honda 37832-ZVL-010

COLLAR (5.5X6.8)

Note: Use from Engine SN 1006952.

$2.99

$

Usually ships in 3-6 days

0

9

Honda 37835-PGK-A01

O-RING

$12.99

$

Usually ships in 3-6 days

0

10

Honda 83551-MB9-000

GROMMET

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90013-ZVL-000

BOLT-WASHER (5X12)

Note: Use up to Engine SN 1007512.

$0.99

$

Usually ships in 3-6 days

0

11

Honda 90013-ZVL-010

BOLT-WASHER (5X12)

Note: Use from Engine SN 1007513.

$0.99

$

Usually ships in 3-6 days

0

12

Honda 90014-ZVL-000

BOLT-WASHER (5X28)

Note: Use up to Engine SN 1007512.

$1.49

$

Usually ships in 3-6 days

0

12

Honda 90014-ZVL-010

BOLT-WASHER (5X28)

Note: Use from Engine SN 1007513.

$1.49

$

Usually ships in 3-6 days

0

13

Honda 90023-ZVL-000

BOLT, FLANGE (6X22)
(Superseded to 90023-ZVL-010)

Note: Use up to Engine SN 1006951.

$1.49

$

Usually ships in 3-6 days

0

13

Honda 90023-ZVL-010

BOLT, FLANGE (6X22)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 90031-ZY3-000

BOLT, FLANGE (6X32)

Note: Use up to Engine SN 1006951.

$1.49

$

Usually ships in 3-6 days

0

14

Honda 90032-ZZ5-M01

BOLT, FLANGE (6X32)

Note: Use from Engine SN 1006952.

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90020-ZVL-010

BOLT, FLANGE (8X50)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90205-ZY9-M01

NUT, FLANGE (8MM)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90301-ZZ5-M00

NUT, FLANGE (5MM)

Note: Use up to Engine SN 1007089.

$1.49

$

Usually ships in 3-6 days

0

17

Honda 90301-ZZ5-M01

NUT, FLANGE (5MM)

Note: Use from Engine SN 1007090.

$1.49

$

Usually ships in 3-6 days

0

18

Honda 90501-ZZ5-M00

WASHER, PLAIN (5MM)

Note: Use up to Engine SN 1008848.

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90501-ZZ5-M01

WASHER, PLAIN (5MM)

Note: Use from Engine SN 1008849.

$2.49

$

Usually ships in 3-6 days

0
