BF250 D UCDS (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) CYLINDER HEAD COVER Parts Diagram

Marine Engine, Made in Japan

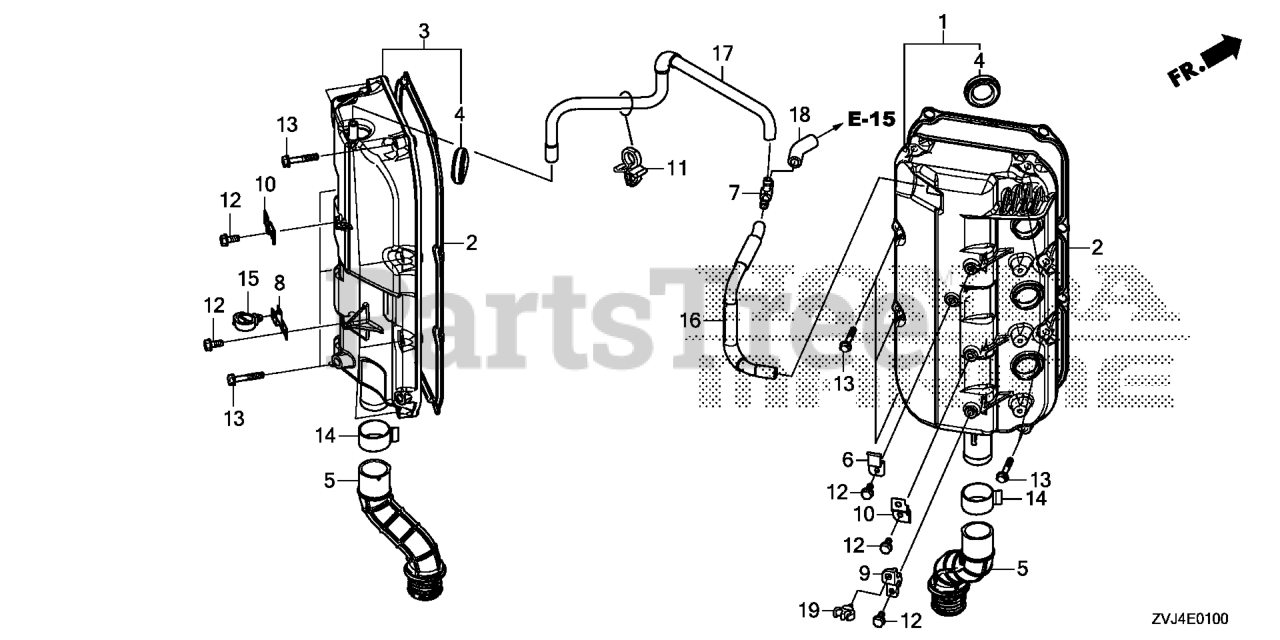

CYLINDER HEAD COVER Parts Diagram

  • Title

1

Honda 12310-ZVL-405ZA

COVER, CYLINDER HEAD *NH8* (R) (DARK GRAY)

$363.99

$

Usually ships in 3-6 days

0

2

Honda 12312-ZY3-000

GASKET, HEAD COVER

$51.99

$

Usually ships in 3-6 days

0

3

Honda 12320-ZVL-405ZA

COVER, CYLINDER HEAD *NH8* (L) (DARK GRAY)

$333.99

$

Usually ships in 3-6 days

0

4

Honda 12342-P2F-A01

SEE PART DETAILS - SUP; SEAL, SPARK PLUG TUBE (NOK)
(Superseded to 12342-RYE-004)

$8.49

$

Usually ships in 3-6 days

0

4

Honda 12342-RYE-004

SEE PART DETAILS - PRI; SEAL, SPARK PLUG TUBE (NOK)

$8.49

$

Usually ships in 3-6 days

0

5

Honda 15425-ZY3-010

SEE PART DETAILS - PRI; TUBE, OIL

$32.99

$

Usually ships in 3-6 days

0

6

Honda 16916-ZVL-000

STAY B, FUEL STRAINER

$11.99

$

Usually ships in 3-6 days

0

7

Honda 17193-MT2-000

T-JOINT

$18.99

$

Usually ships in 3-6 days

0

8

Honda 32104-ZVL-000

BRACKET, FUEL PUMP CONNECTOR

$12.99

$

Usually ships in 3-6 days

0

9

Honda 32114-ZVL-000

BRACKET, CLIP B

$4.49

$

Usually ships in 3-6 days

0

10

Honda 32129-ZY3-000

BRACKET C, HARNESS CLIP

$6.99

$

Usually ships in 3-6 days

0

11

Honda 50310-HE0-003

CLIP A, WIRE

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90011-ZZ5-M01

BOLT, FLANGE (6X14) (CT200)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90019-ZZ5-M00

BOLT, FLANGE (6X35)
(Superseded to 90019-ZZ5-M01)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90019-ZZ5-M01

BOLT, FLANGE (6X35)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90602-ZY3-020

SEE PART DETAILS - PRI; CLAMP, TUBE (D32.5)

$5.99

$

Usually ships in 3-6 days

0

15

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM) (Honda Code 1226265).

$12.99

$

Usually ships in 3-6 days

0

16

Honda 91401-ZY3-A00

TUBE A, BREATHER

$18.99

$

Usually ships in 3-6 days

0

17

Honda 91402-ZY3-030

TUBE B, BREATHER

$17.99

$

Usually ships in 3-6 days

0

18

Honda 91403-ZY3-000

TUBE C, BREATHER

$4.49

$

Usually ships in 3-6 days

0

19

Honda 91566-SK7-003

CLIP D, WASHER TUBE

$8.99

$

Usually ships in 3-6 days

0
